Saab 9000 1994-1998 Shafts, gears Output shaft

Group 4 Transmission, section 360

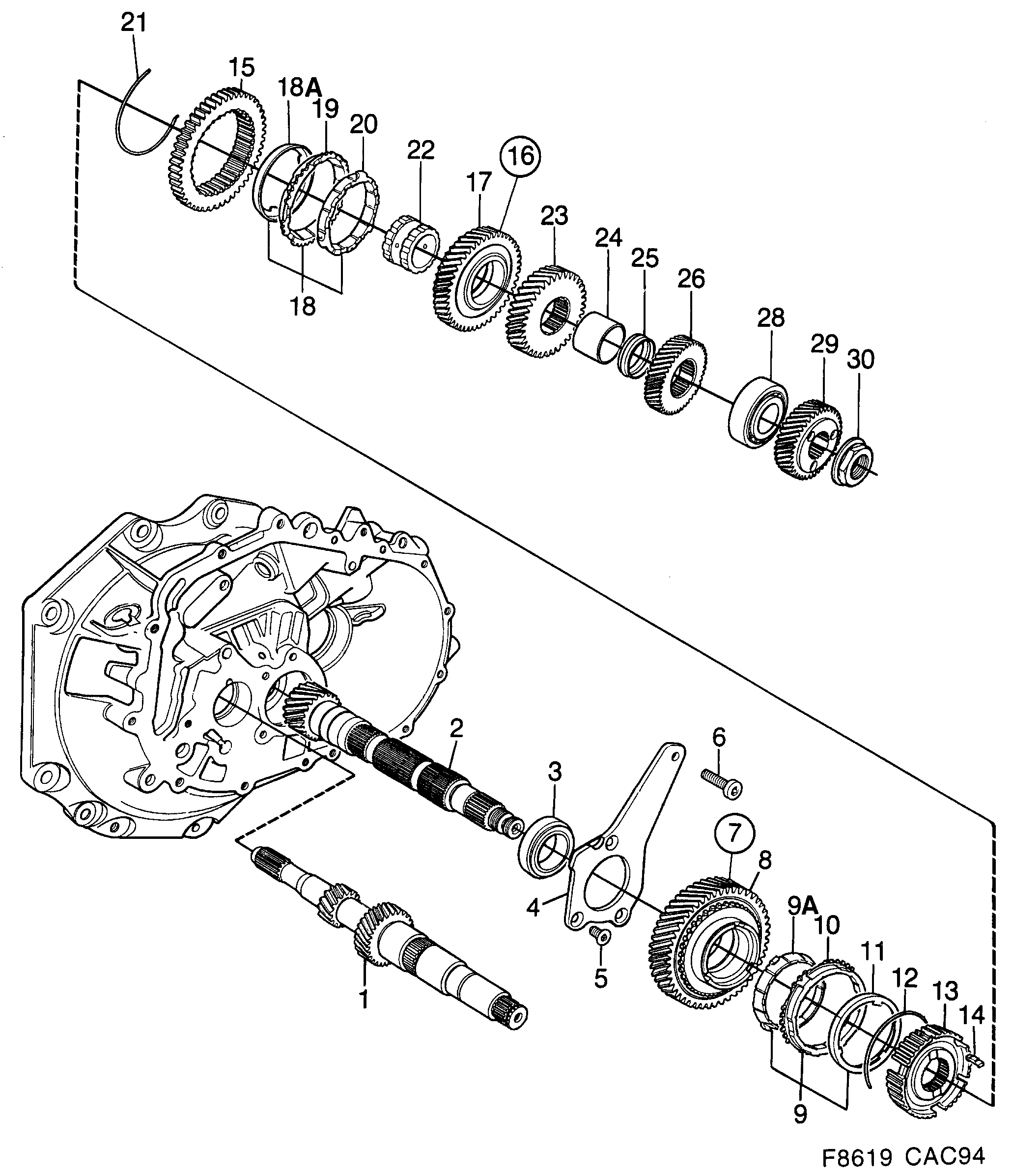

Saab 9000 Shafts, gears Output shaft diagram

Pos	Article	Part No.
2	Pinion shaft	8749103 (replaces 8730566)
2	Pinion shaft	8749103 (replaces 8749848)
2	Pinion shaft	90540923 (replaces 8730723)
2	Pinion shaft	55354668 (replaces 8746877)
2	Pinion shaft	8732414
3	Roller bearing	90490864 (replaces 8729378)
4	Support	90544188 (replaces 8740631)
4	Support	30564109 (replaces 8746687)
5	Screw	90511105 (replaces 8741506)
5	Screw	55561651 (replaces 4685186)
5	Screw	90511105 (replaces 8056194)
6	Screw	92151830 (replaces 8059792)
7	Gear	55557717 (replaces 8781478)
8	Gear	90490820 (replaces 8735862)
9	Synchromesh	90511189 (replaces 8781734)
9A	Synchromesh	30555110 (replaces 8734428)
9A	Synchromesh	30555110 (replaces 8740789)
10	Synchromesh	30555111 (replaces 8734444)
10	Synchromesh	30555111 (replaces 8740797)
11	Synchromesh	90372118 (replaces 8734436)
12	Spring ring	90344649 (replaces 8734451)
13	Hub	90490773 (replaces 8735920)
14	Companion flange	90335876 (replaces 8735680)
15	Sleeve	55353594 (replaces 8735896)
16	Gear	90490939 (replaces 8781486)
17	Gear	30546137 (replaces 8735847)
22	Bearing bushing	90512198 (replaces 8730350)
22	Bearing bushing	90512198 (replaces 8743205)
23	Gear	90511218 (replaces 8734337)
24	Spacer sleeve	8735359
25	Sleeve	90511220 (replaces 8734477)
26	Gear	90511221 (replaces 8725327)
28	Roller bearing	90490871 (replaces 8737835)
28	Roller bearing	90490871 (replaces 8748261)
29	Gear	90541200 (replaces 8735813)
30	Nut	12755195 (replaces 8735516)
