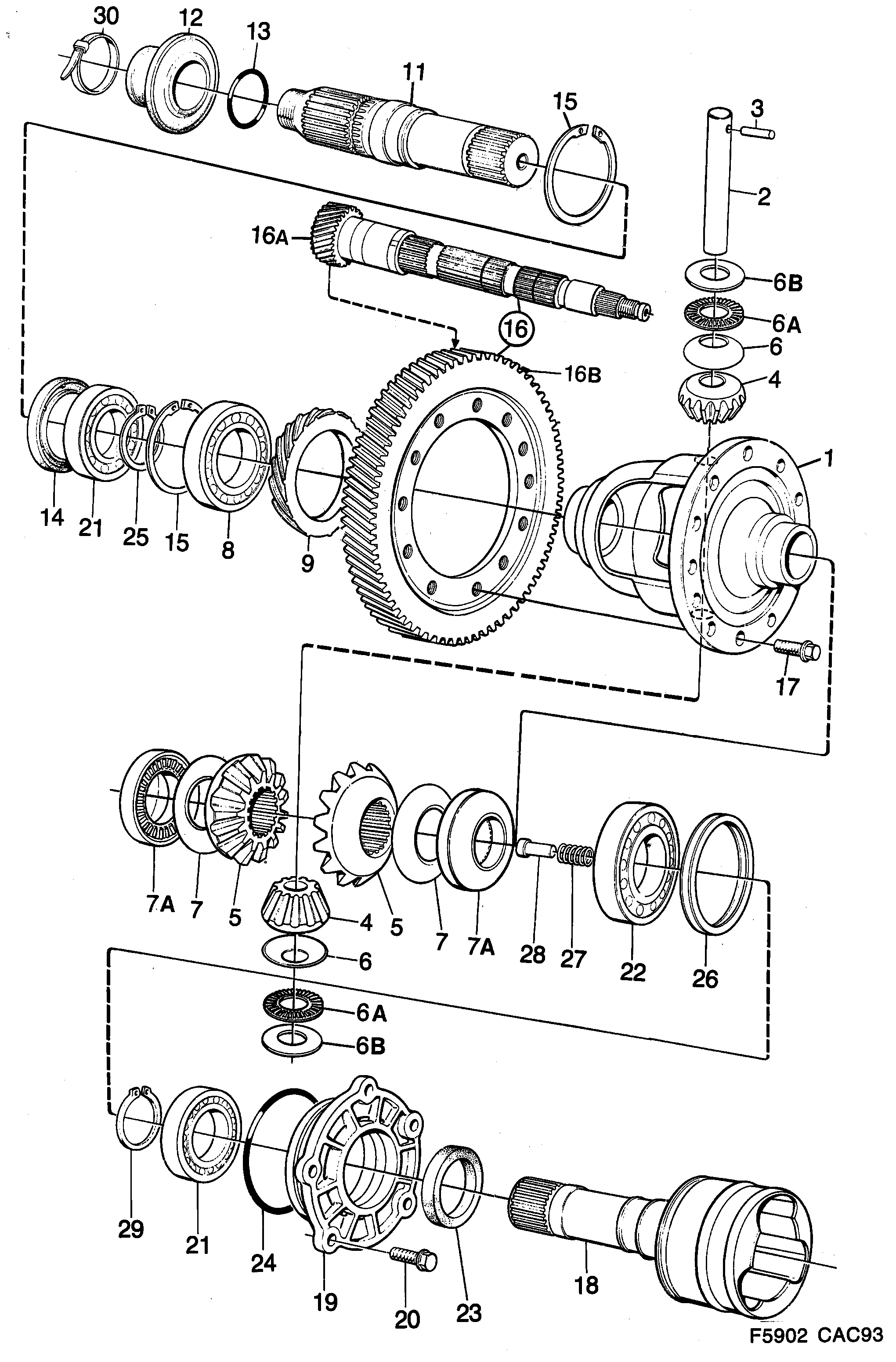

Group 4 Transmission, section 350
| Pos | Article | Part No. |
|---|---|---|
| 1 | Differential housing | 8719908 |
| 1 | Differential housing | 8731846 |
| 2 | Differential shaft | 8719940 |
| 3 | Cotter pin | 8117863 (replaces 8049736) |
| 3 | Roll pin | 8117863 |
| 4 | Differential pinion | 8781858 (replaces 8729394) |
| 4 | Differential pinion | 8731853 |
| 5 | Differential side gear | 8781858 (replaces 8729386) |
| 5 | Differential side gear | 8729741 |
| 6 | Washer | 90490816 (replaces 8719874) |
| 6 | Washer | 90490816 (replaces 8731788) |
| 6A | Needle bearing | 8730244 |
| 6B | Washer | 8730251 |
| 7 | Washer | 8719882 |
| 7 | Washer | 8731796 |
| 7A | Needle bearing | 8729758 |
| 8 | Roller bearing | 8719254 |
| 9 | Drive gear | 8727232 |
| 11 | Shaft | 8723132 |
| 12 | Sealing ring | 8720997 |
| 13 | O-ring | 7970361 (replaces 8046625) |
| 13 | O-ring | 7970361 |
| 14 | Seal | 8721078 |
| 15 | Ring | 8048324 |
| 15 | Lock ring | 8048324 (replaces 7915036) |
| 16 | Final drive | 8781296 |
| 16A | Pinion shaft | 8729642 (replaces 8727802) |
| 16A | Pinion shaft | 8729642 |
| 16A | Pinion shaft | 8729261 |
| 16B | Gear | 8727810 |
| 16B | Gear | 8729279 |
| 16A | Pinion shaft | 8729659 (replaces 8724122) |
| 16A | Pinion shaft | 8729857 |
| 16B | Ring gear | 8724114 |
| 17 | Screw | 8719262 |
| 18 | Companion flange | 8720948 |
| 18 | Companion flange | 4103222 |
| 19 | Bearing seat | 8719098 |
| 20 | Screw | 8125189 |
| 20 | Screw | 8729485 |
| 21 | Ball bearing | 8704306 |
| 22 | Pinion bearing | 8704389 (replaces 8708836) |
| 22 | Roller bearing | 8704389 |
| 23 | Sealing collar | 8731804 (replaces 8704298) |
| 23 | Sealing collar | 8731804 |
| 24 | O-ring | 8716656 |
| 25 | Snap ring | 8728198 |
| 26 | Adjusting washer | 8716292 |
| 26 | Adjusting washer | 8716300 |
| 26 | Adjusting washer | 8716318 |
| 26 | Adjusting washer | 8716326 |
| 27 | Spring | 8704314 |
| 28 | Plunger | 8704322 |
| 30 | Tie strap | 11900513 (replaces 7971880) |
| Diff. side gear kit | 8781858 |
