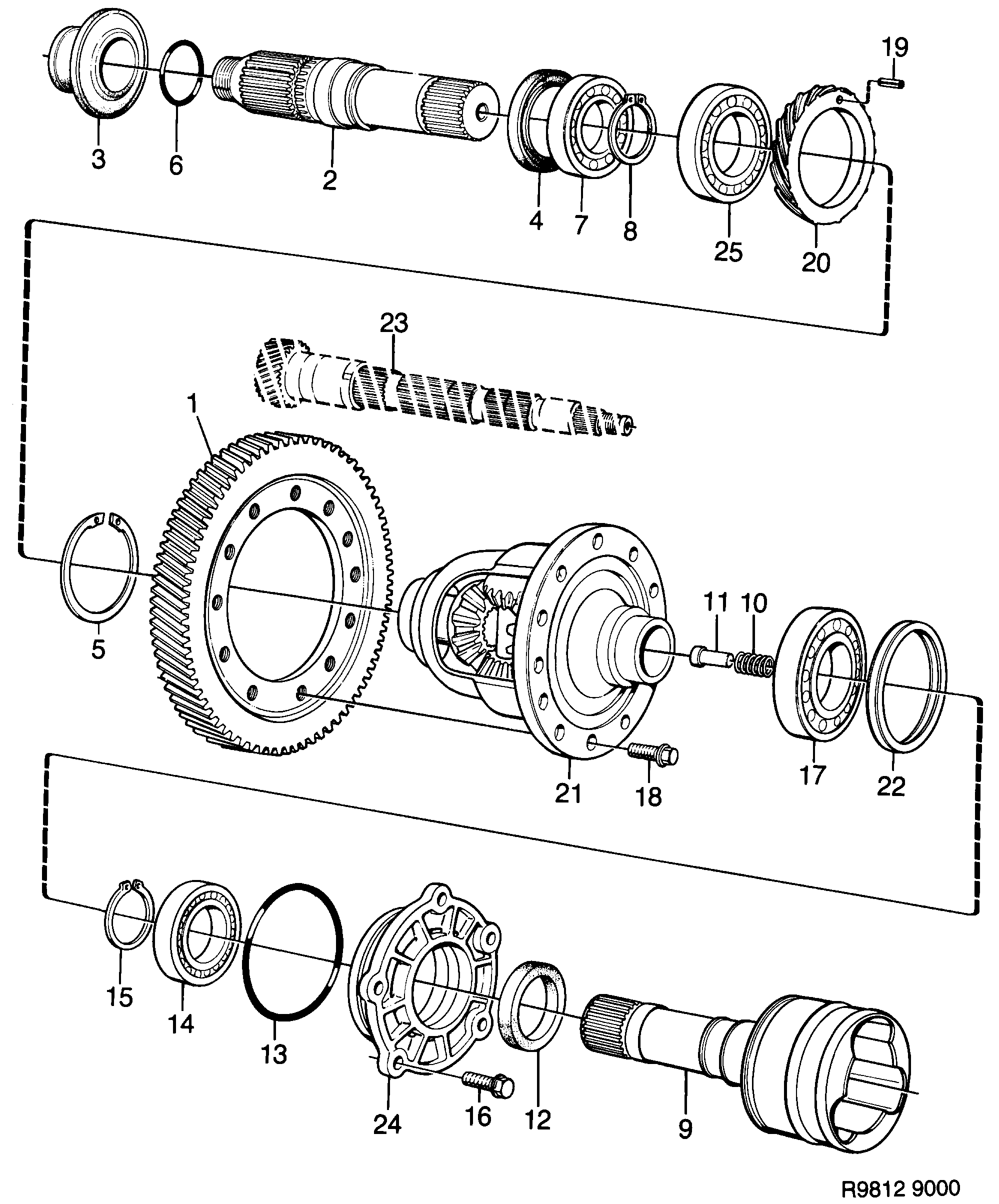

Group 4 Transmission, section 340
| Pos | Article | Part No. |
|---|---|---|
| 1 | Ring gear | 7571854 |
| 2 | Shaft | 8723140 |
| 3 | Sealing ring | 8720997 (replaces 7571912) |
| 3 | Sealing ring | 8720997 |
| 4 | Seal | 8721078 |
| 4 | Seal | 7592223 |
| 5 | Ring | 8048324 |
| 6 | O-ring | 7571904 |
| 6 | O-ring | 7594898 |
| 7 | Ball bearing | 7558950 |
| 8 | Snap ring | 8728198 (replaces 8047813) |
| 9 | Companion flange | 8720948 |
| 10 | Spring | 8704314 |
| 11 | Plunger | 8704322 |
| 12 | Sealing collar | 8731804 (replaces 8704298) |
| 12 | Seal | 4280376 (replaces 7592231) |
| 13 | O-ring | 7594120 |
| 15 | Snap ring | 8728198 |
| 16 | Hexagon screw | 7558497 |
| 17 | Roller bearing | 7558430 |
| 18 | Screw | 7571862 |
| 18 | Screw | 7571870 |
| 19 | Pin | 8049298 |
| 20 | Drive gear | 8720633 |
| 20 | Drive gear | 8727232 |
| 21 | Differential | 8746406 (replaces 8727778) |
| 22 | Adjusting washer | 4122123 (replaces 7597677) |
| 22 | Adjusting washer | 4122131 (replaces 7597685) |
| 22 | Adjusting washer | 7597693 |
| 22 | Adjusting washer | 7597701 |
| 22 | Adjusting washer | 7597719 |
| 22 | Adjusting washer | 7597727 |
| 22 | Adjusting washer | 7597735 |
| 22 | Adjusting washer | 7597743 |
| 22 | Adjusting washer | 7597750 |
| 22 | Adjusting washer | 7597768 |
| 24 | Bearing seat | 8719098 |
| 25 | Roller bearing | 7558448 |
| Sealing kit | 7575509 | |
| Repair kit | 7575566 | |
| Repair kit | 7575574 | |
| Gasket kit | 7496094 | |
| Gasket kit | 7496102 |
