Saab 9000 1990-1993 Shafts, gears

Group 4 Transmission, section 320

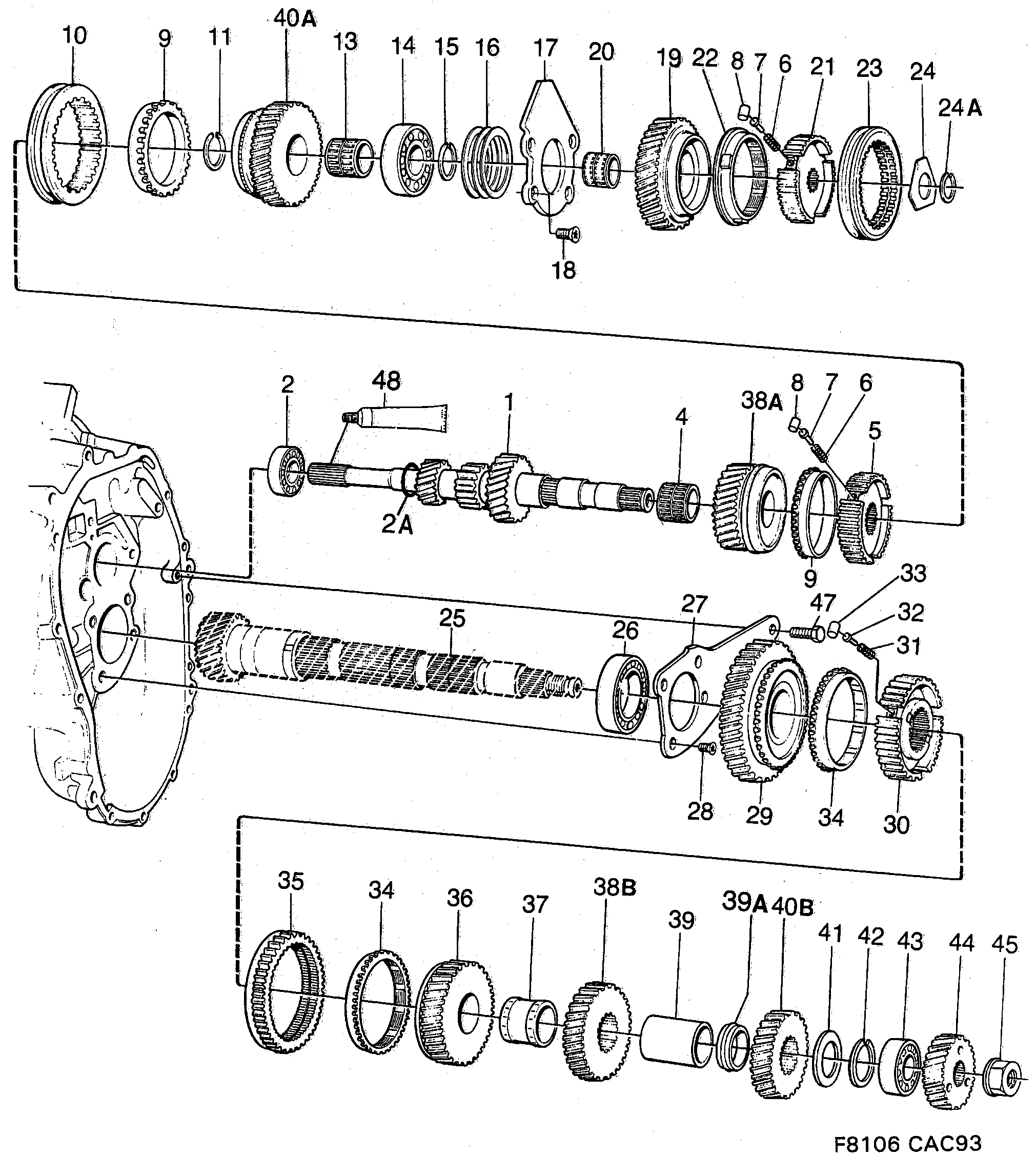

Saab 9000 Shafts, gears diagram

Pos	Article	Part No.
1	Shaft	8726986
2	Roller bearing	90490861 (replaces 8719163)
4	Needle bearing	8720534
5	Hub	8741001 (replaces 8720088)
6	Compression spring	90511267 (replaces 8723330)
7	Plunger	90511266 (replaces 8716821)
8	Roller	90511265 (replaces 8716839)
9	Synchromesh	90490974 (replaces 8720112)
10	Sleeve	8720146
10	Sleeve	8736365
11	Lock ring	90511109 (replaces 8719189)
13	Needle bearing	8720526
14	Roller bearing	8720278
15	Snap ring	90511077 (replaces 8721946)
16	Adjusting washer	8716607
16	Adjusting washer	8716615
16	Adjusting washer	8716623
16	Adjusting washer	8716631
17	Support	8722191
18	Screw	8710816
19	Gear	8725319
19	Gear	8730327
20	Needle bearing	90511083 (replaces 8721953)
21	Hub	8720369
22	Synchromesh	8720104
23	Sleeve	8727794
24	Support	8725723
24A	Snap ring	8719205
26	Roller bearing	90490864 (replaces 8716920)
26	Roller bearing	90490864 (replaces 8729378)
27	Support	8724023
29	Gear	8727158
31	Compression spring	8722571
35	Sleeve	8722340
35	Sleeve	8736357
36	Gear	8726994
37	Bushing	8720310
38A	Gear	8730301 (replaces 8724130)
38A	Gear	8730301
38B	Gear	90541199 (replaces 8724163)
38B	Gear	90541199 (replaces 8730319)
39	Spacer sleeve	8720302
39	Spacer sleeve	8736589
39A	Sleeve	90511220 (replaces 8734477)
40A	Gear	8725301
40B	Gear	90511221 (replaces 8725327)
41	Spring disc	8720203
42	Spacer washer	8720195
42	Spacer washer	8735342
44	Gear	8725335
44	Gear	8729659
45	Nut	8716490
47	Screw	55561609 (replaces 8125221)
48	Grease	90513210 (replaces 8781684)
	Pinion bearing kit	8781775
