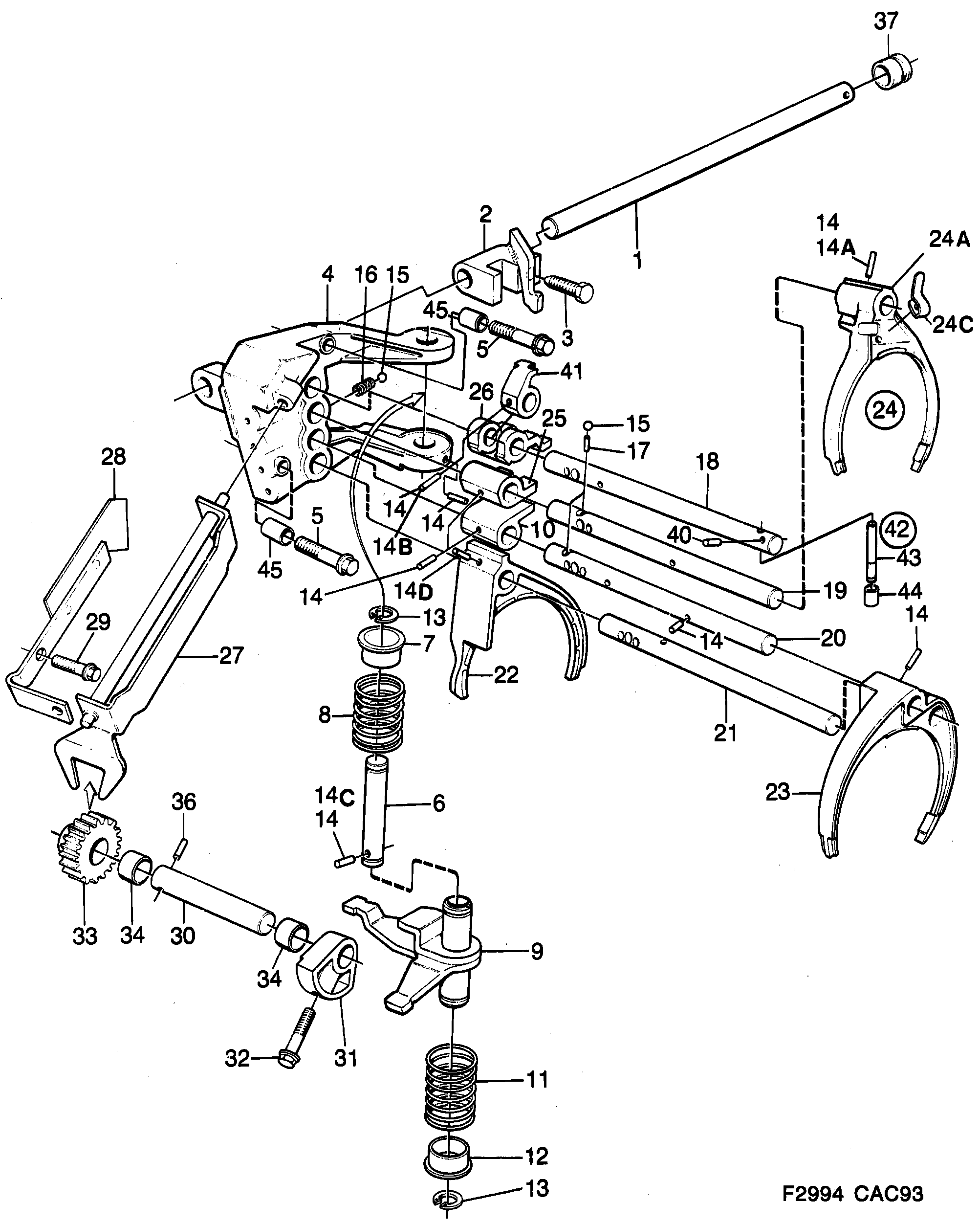

Group 4 Transmission, section 290
| Pos | Article | Part No. |
|---|---|---|
| 1 | Gear rod | 8730772 (replaces 8719635) |
| 1 | Gear rod | 8730772 |
| 2 | Shifter | 8719643 |
| 3 | Screw | 8719999 |
| 4 | Bearing bracket | 8721466 |
| 5 | Screw | 55561609 (replaces 8125221) |
| 6 | Pivot pin | 90486075 (replaces 8721557) |
| 7 | Guide | 90486076 (replaces 8721565) |
| 8 | Spring | 55354962 (replaces 8721573) |
| 9 | Gear selector | 8721581 |
| 10 | Companion flange | 90512193 (replaces 8719593) |
| 11 | Spring | 55354961 (replaces 8721615) |
| 12 | Spring guide | 90486137 (replaces 8721623) |
| 13 | Snap ring | 8726754 |
| 14 | Pin | 8117657 |
| 14A | Pin | 8034373 |
| 14B | Roll pin | 8117640 |
| 14C | Roll pin | 8049553 |
| 15 | Ball | 90486180 (replaces 8717027) |
| 16 | Spring | 90486181 (replaces 8723397) |
| 17 | Pin | 90486182 (replaces 8719684) |
| 18 | Shift rail | 8724395 |
| 18 | Shift rail | 8727984 |
| 19 | Shift rail | 8724387 |
| 19 | Shift rail | 8727927 |
| 20 | Shift rail | 8719700 |
| 20 | Shift rail | 8727919 |
| 21 | Shift rail | 8719692 |
| 21 | Shift rail | 8727901 |
| 22 | Gear selector fork | 8722332 |
| 23 | Gear selector fork | 90444583 (replaces 8727869) |
| 24 | Gear selector fork | 8726689 |
| 24A | Gear selector fork | 8724296 |
| 24C | Spring | 8725368 |
| 25 | Companion flange | 90512195 (replaces 8719601) |
| 26 | Companion flange | 8724346 |
| 27 | Lever | 8721664 |
| 28 | Bearing bracket | 8721508 |
| 29 | Screw | 8125163 |
| 30 | Shift rail | 8719148 |
| 31 | Support | 8720880 |
| 33 | Gear | 8727885 |
| 34 | Bushing | 1487222 |
| 37 | Seal | 8730764 (replaces 8344335) |
| 37 | Seal | 8730764 |
| 40 | Pin | 8117616 |
| 41 | Companion flange | 8724304 |
| 42 | Shift rail | 8724643 |
| 42 | Shift rail | 8728420 |
| 43 | Shift rail | 8724643 (replaces 8724353) |
| 43 | Shift rail | 8727166 |
| 44 | Bushing | 8724627 |
| 45 | Guide sleeve | 30516581 (replaces 8719650) |
