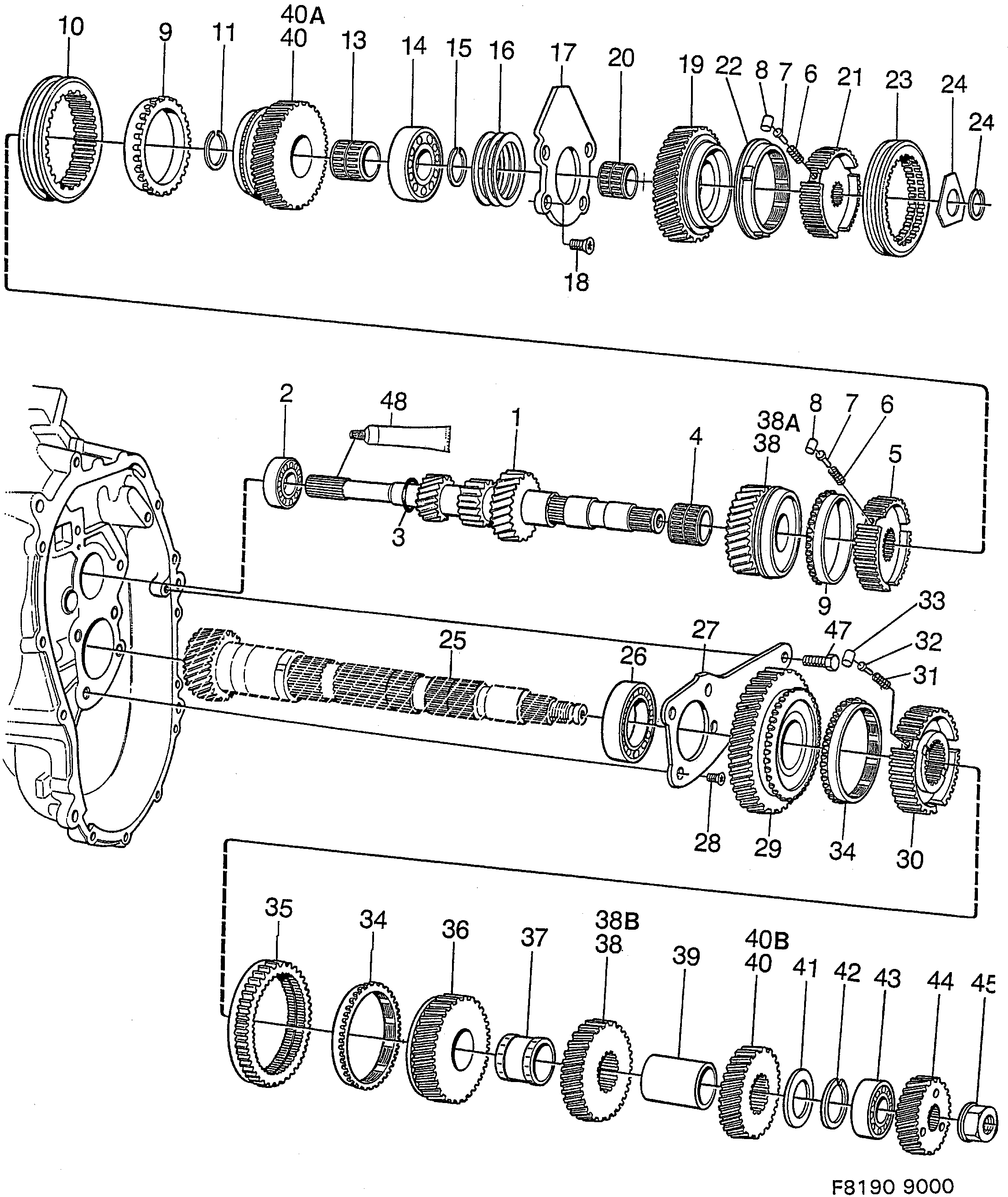

Group 4 Transmission, section 280
| Pos | Article | Part No. |
|---|---|---|
| 1 | Shaft | 8721169 |
| 1 | Shaft | 8726986 |
| 2 | Roller bearing | 90490861 (replaces 8719163) |
| 4 | Needle bearing | 8720534 |
| 5 | Hub | 8741001 (replaces 8720088) |
| 6 | Compression spring | 90511267 (replaces 8723330) |
| 7 | Plunger | 90511266 (replaces 8716821) |
| 8 | Roller | 90511265 (replaces 8716839) |
| 9 | Synchromesh | 90490974 (replaces 8720112) |
| 10 | Sleeve | 8720146 |
| 11 | Lock ring | 90511109 (replaces 8719189) |
| 13 | Needle bearing | 8720526 |
| 14 | Roller bearing | 8720278 |
| 15 | Snap ring | 90511077 (replaces 8721946) |
| 16 | Adjusting washer | 8716607 |
| 16 | Adjusting washer | 8716615 |
| 16 | Adjusting washer | 8716623 |
| 16 | Adjusting washer | 8716631 |
| 17 | Support | 8722191 |
| 18 | Screw | 8710816 |
| 19 | Gear | 8720351 |
| 19 | Gear | 8723736 |
| 19 | Gear | 8724155 |
| 19 | Gear | 8725319 |
| 20 | Needle bearing | 90511083 (replaces 8721953) |
| 21 | Hub | 8720369 |
| 22 | Synchromesh | 8720104 |
| 23 | Sleeve | 8720138 |
| 23 | Sleeve | 8727794 |
| 24 | Support | 8718447 |
| 24 | Support | 8725723 |
| 24A | Snap ring | 8719205 |
| 26 | Roller bearing | 90490864 (replaces 8716920) |
| 27 | Support | 8724023 |
| 29 | Gear | 8722357 |
| 29 | Gear | 8727158 |
| 31 | Compression spring | 8722571 |
| 35 | Sleeve | 8722340 |
| 35 | Sleeve | 8725913 |
| 36 | Gear | 8722365 |
| 36 | Gear | 8726994 |
| 37 | Bushing | 8720310 |
| 38 | Drive gear set | 8730301 (replaces 8781171) |
| 38A | Gear | 8730301 (replaces 8724130) |
| 38B | Gear | 90541199 (replaces 8724163) |
| 39 | Spacer sleeve | 8720302 |
| 40 | Drive gear set | 8781148 |
| 40 | Drive gear set | 8781197 |
| 40A | Gear | 8724148 |
| 40A | Gear | 8725301 |
| 40B | Gear | 8724171 |
| 40B | Gear | 90511221 (replaces 8725327) |
| 41 | Spring disc | 8720203 |
| 42 | Spacer washer | 8720195 |
| 44 | Gear | 8719312 |
| 44 | Gear | 8723769 |
| 44 | Gear | 8724189 |
| 44 | Gear | 8725335 |
| 45 | Nut | 8716490 |
| 47 | Screw | 55561609 (replaces 8125221) |
| 48 | Grease | 90513210 (replaces 8781684) |
| Pinion bearing kit | 8781775 |
