Saab 9000 1990-1993 Release bearing Slave cylinder

Group 4 Transmission, section 260

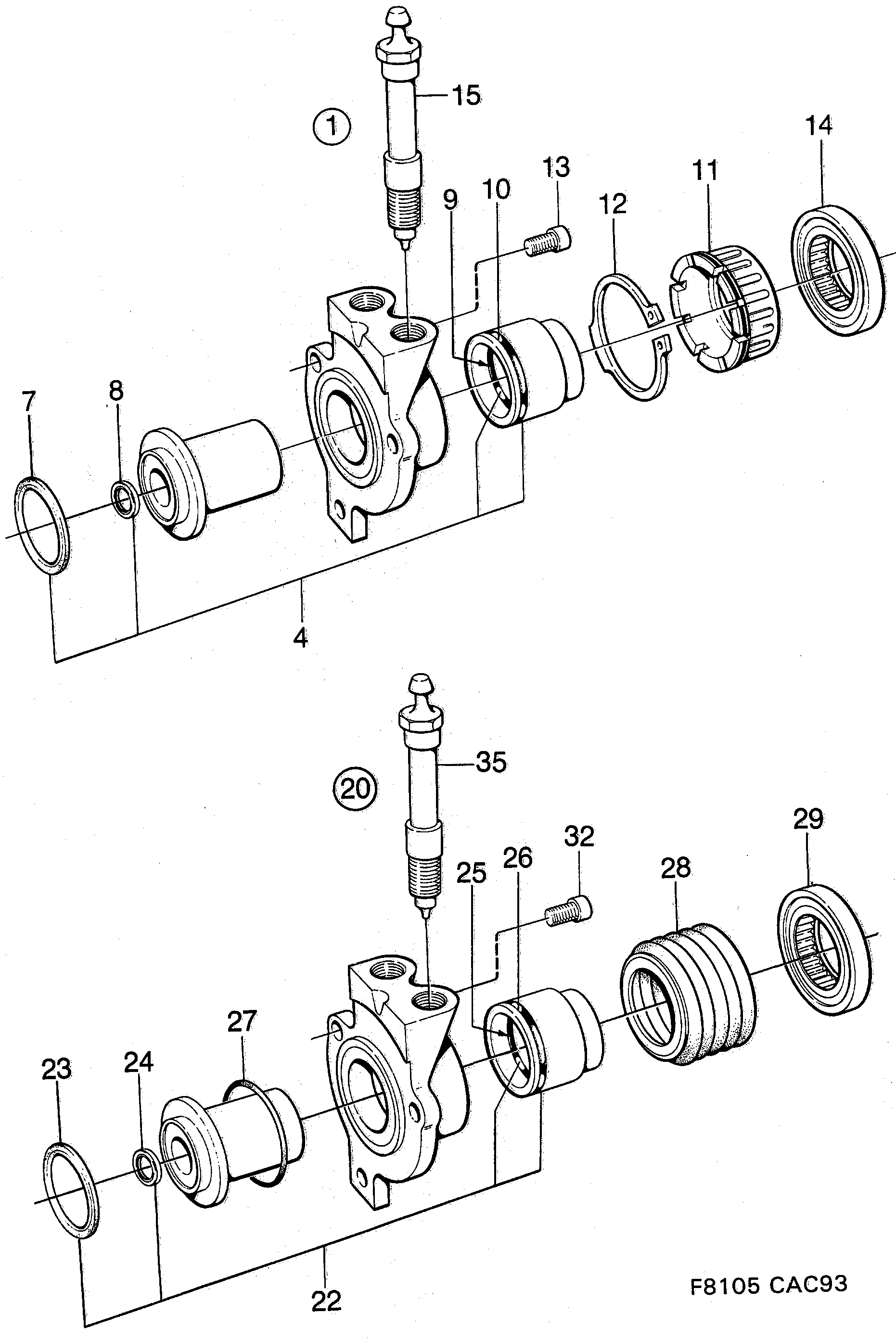

Saab 9000 Release bearing Slave cylinder diagram
PosArticlePart No.
1Slave cylinder8781189
4Sealing kit8781122
7Seal8733198
8Seal8722001
9Seal8722126
10Seal8722118
11Seal8722100
12Snap ring8714420
13Screw8723322
14Release bearing8721995
15Nipple8722746
20Slave cylinder4904579 (replaces 8781387)
22Sealing kit4904561
23O-ring4903787 (replaces 8729600)
27Seal8729592
28Dust cover8729618
32Screw8729675
