Saab 9000 1994-1998 Gear box case

Group 4 Transmission, section 240

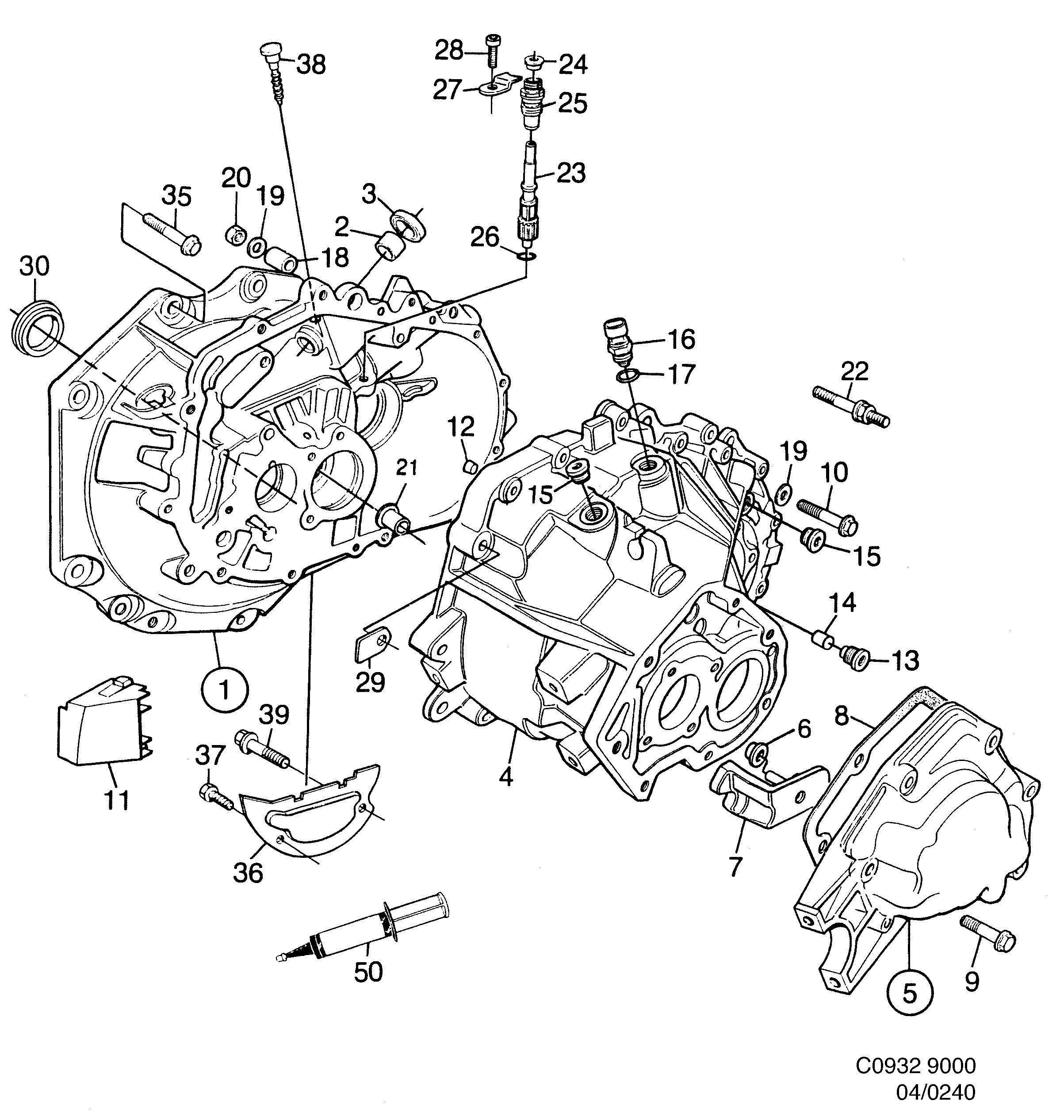

Saab 9000 Gear box case diagram

Pos	Article	Part No.
1	Bell housing	30564109 (replaces 8737421)
1	Bell housing	8747313
1	Bell housing	8748170
2	Bushing	30546057 (replaces 8731143)
3	Seal	90511282 (replaces 8734998)
3	Seal	90511282 (replaces 8741878)
4	Transmission housing	8744203 (replaces 8738338)
4	Transmission housing	8744203
5	Cover	8734717
6	Washer	90486024 (replaces 8734105)
7	Oil collector	30546087 (replaces 8734097)
8	Gasket	90541166 (replaces 8734832)
9	Flange screw	55561609 (replaces 7972714)
11	Cover	21018743 (replaces 8734816)
12	Sintered compact	90512565 (replaces 8701658)
13	Plug	55568847 (replaces 8734873)
13	Plug	55568847 (replaces 8743858)
14	Magnet	3449250 (replaces 8734881)
15	Plug	4776266
16	Back-up light contact	90482454 (replaces 4232666)
16	Back-up light contact	90482454 (replaces 4617668)
17	Gasket	12755014 (replaces 4346748)
17	Gasket	12755014 (replaces 4940169)
18	Guide pin	12755009 (replaces 8723967)
19	Washer	7061328
20	Nut	8074106
21	Sleeve	90121130 (replaces 8730665)
22	Flange screw	55561710 (replaces 8738411)
23	Gear	8748311 (replaces 8734972)
23	Gear	8748311
24	Seal	8724874
25	Sleeve	8727828
26	O-ring	8711707
27	Bracket	8735037
28	Screw	92151821 (replaces 8059552)
29	Bracket	8739682
35	Screw	55557007 (replaces 7984297)
35	Hexagon screw	92150043 (replaces 7982606)
36	Baffle	4164497
36	Baffle	4164489
37	Hexagon screw	4346235
37	Hexagon screw	55562122 (replaces 4685475)
38	Plug	90105651 (replaces 4387544)
39	Hexagon screw	4087193
50	Flange sealant	90297970
	Gasket kit	8781593
	Gasket kit	4904553
