Saab 9000 1990-1993 Gear box case

Group 4 Transmission, section 230

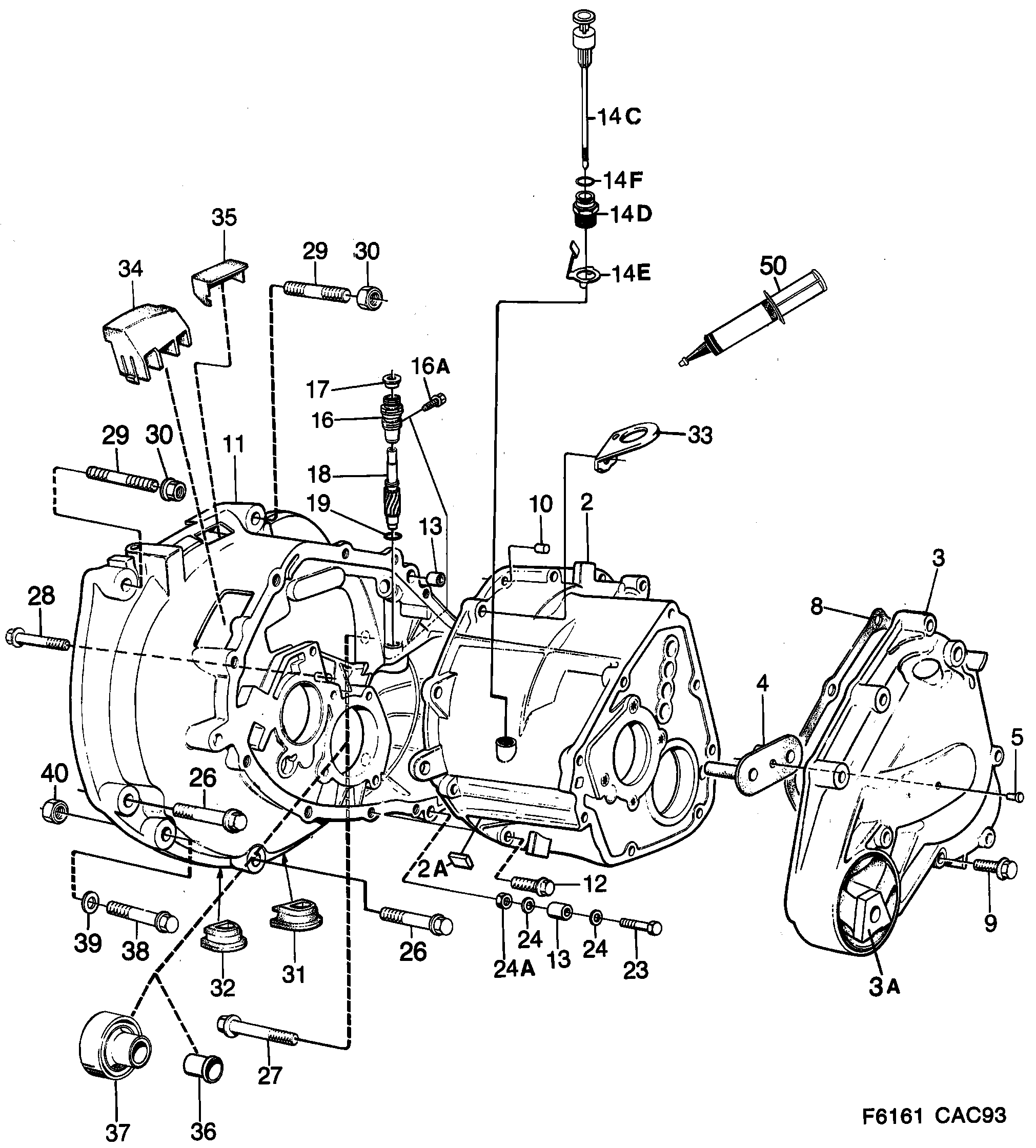

Saab 9000 Gear box case diagram

Pos	Article	Part No.
2	Transmission housing	8727760
2A	Magnet	8727745
3	Cover	11066422 (replaces 8728107)
4	Oil collector	8722183
5	Rivet	8094732
8	Gasket	8728685
9	Screw	55561609 (replaces 8125221)
10	Sintered compact	90512565 (replaces 8701658)
11	Bell housing	8727521
11	Bell housing	8729568
13	Guide pin	12755009 (replaces 8723967)
14C	Dipstick	8726762
14D	Nipple	8726770
14E	Spring	8727737
14F	O-ring	8109647
16	Sleeve	8727828
16A	Screw	8724882
17	Seal	8724874
18	Gear	8727240
19	O-ring	8711707
24	Washer	7061328
24A	Nut	8151235
26	Screw	7974819
27	Screw	7974801
28	Screw	7974793
29	Stud	7553688
30	Nut	7976962
30	Flange nut	8151342
31	Plug	9386459
31	Plug	4119640
32	Plug	9386467
32	Plug	4119657
33	Lifting eye	8728271
34	Cover	8728545
35	Cover	8723223
36	Tube	8723538
37	Seal	8719825
38	Screw	7979594
39	Washer	11011199 (replaces 8073116)
50	Flange sealant	90297970
