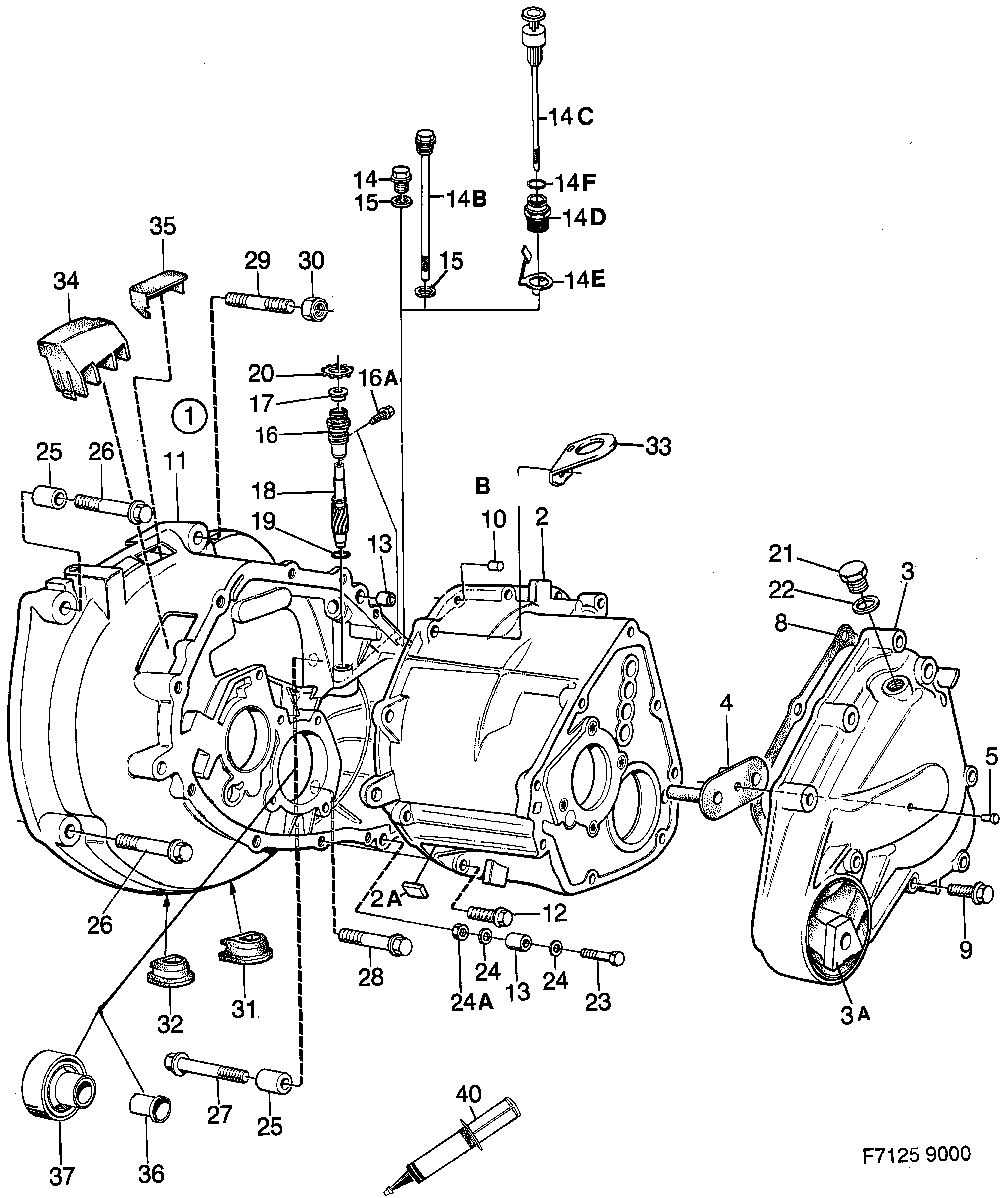

Group 4 Transmission, section 190
| Pos | Article | Part No. |
|---|---|---|
| 2 | Transmission housing | 8725186 |
| 2 | Transmission housing | 8726705 |
| 2A | Magnet | 8727745 |
| 3 | Cover | 8723983 |
| 3 | Cover | 8724619 |
| 3 | Cover | 11066422 (replaces 8728107) |
| 4 | Oil collector | 8722183 |
| 5 | Rivet | 8094732 |
| 8 | Gasket | 8728685 |
| 8 | Gasket | 8728685 (replaces 8725061) |
| 9 | Screw | 55561609 (replaces 8125221) |
| 10 | Sintered compact | 90512565 (replaces 8701658) |
| 11 | Bell housing | 4280764 (replaces 8725178) |
| 11 | Bell housing | 8726697 |
| 11 | Bell housing | 8727521 |
| 13 | Guide pin | 12755009 (replaces 8723967) |
| 14 | Plug | 8123762 |
| 14B | Dipstick | 8724924 |
| 14C | Dipstick | 8726762 |
| 14D | Nipple | 8726770 |
| 14E | Spring | 8727737 |
| 14F | O-ring | 8109647 |
| 15 | Gasket | 8124182 |
| 16 | Sleeve | 8727828 |
| 16A | Screw | 8724882 |
| 17 | Seal | 8713463 |
| 17 | Seal | 8724874 |
| 18 | Gear | 8723892 (replaces 8720641) |
| 18 | Gear | 8723892 |
| 18 | Gear | 8727240 |
| 19 | O-ring | 8711707 |
| 20 | Locking | 8717308 |
| 21 | Screw | 8723405 |
| 22 | Gasket | 11066422 (replaces 8124133) |
| 23 | Screw | 8125213 |
| 24 | Washer | 7061328 |
| 24A | Nut | 8074106 |
| 24A | Nut | 8151235 |
| 25 | Guide | 8346470 |
| 26 | Screw | 7974819 |
| 27 | Screw | 7974801 |
| 28 | Screw | 7974793 |
| 29 | Stud | 7553688 |
| 30 | Nut | 7976962 |
| 31 | Plug | 9386459 |
| 32 | Plug | 9386467 |
| 33 | Lifting eye | 8728271 (replaces 8722506) |
| 34 | Cover | 8722449 |
| 35 | Cover | 8723223 |
| 36 | Tube | 8723538 |
| 37 | Seal | 8719825 |
| 40 | Flange sealant | 90297970 |
