Saab 9000 1994-1998 Pedal, master cylinder

Group 4 Transmission, section 180

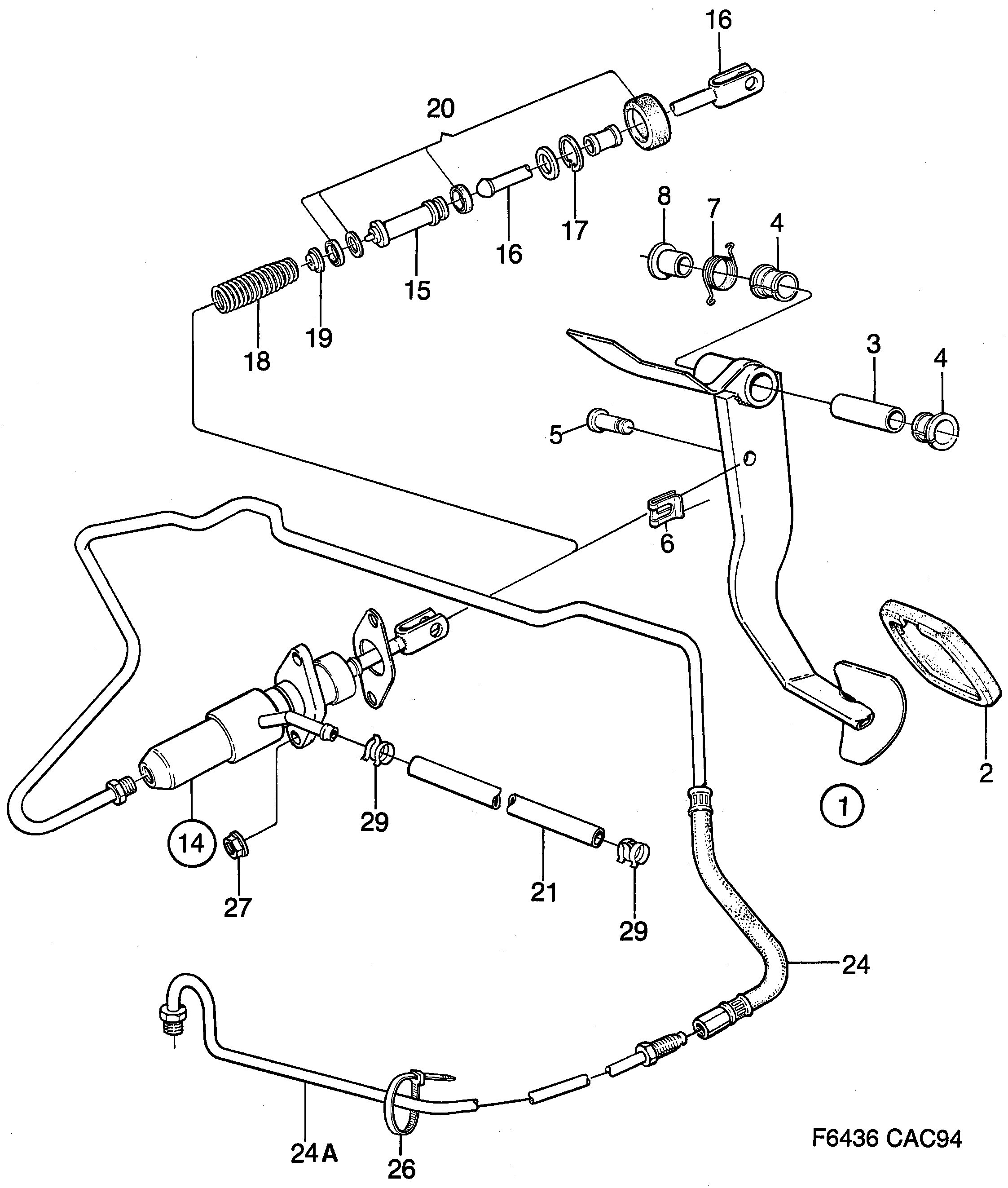

Saab 9000 Pedal, master cylinder diagram

Pos	Article	Part No.
1	Clutch pedal	8965535
2	Pedal pad	8965345
3	Spacer tube	8950297
4	Bearing bushing	8962128
5	Bolt	8956443
6	Clip	12780365 (replaces 8252553)
7	Return spring	8966756
8	Spacer sleeve	8970196
14	Clutch cylinder	4385019
15	Piston	4385027
16	Push rod	4385035
17	Lock ring	8957193
18	Spring	8986622
19	Spring support	8945156
20	Repair kit	8993156
21	Hose	4118949
21	Hose	4385068
23	Gasket	8941478
24	Clutch hose	4904231 (replaces 4280921)
24	Clutch hose	4903688 (replaces 4477832)
24	Clutch hose	4903688
24A	Tube	4477048
26	Tie strap	8552663
27	Nut	92150143 (replaces 7971922)
29	Hose clamp	7973605
