Saab 9000 1990-1993 Pedal, master cylinder

Group 4 Transmission, section 170

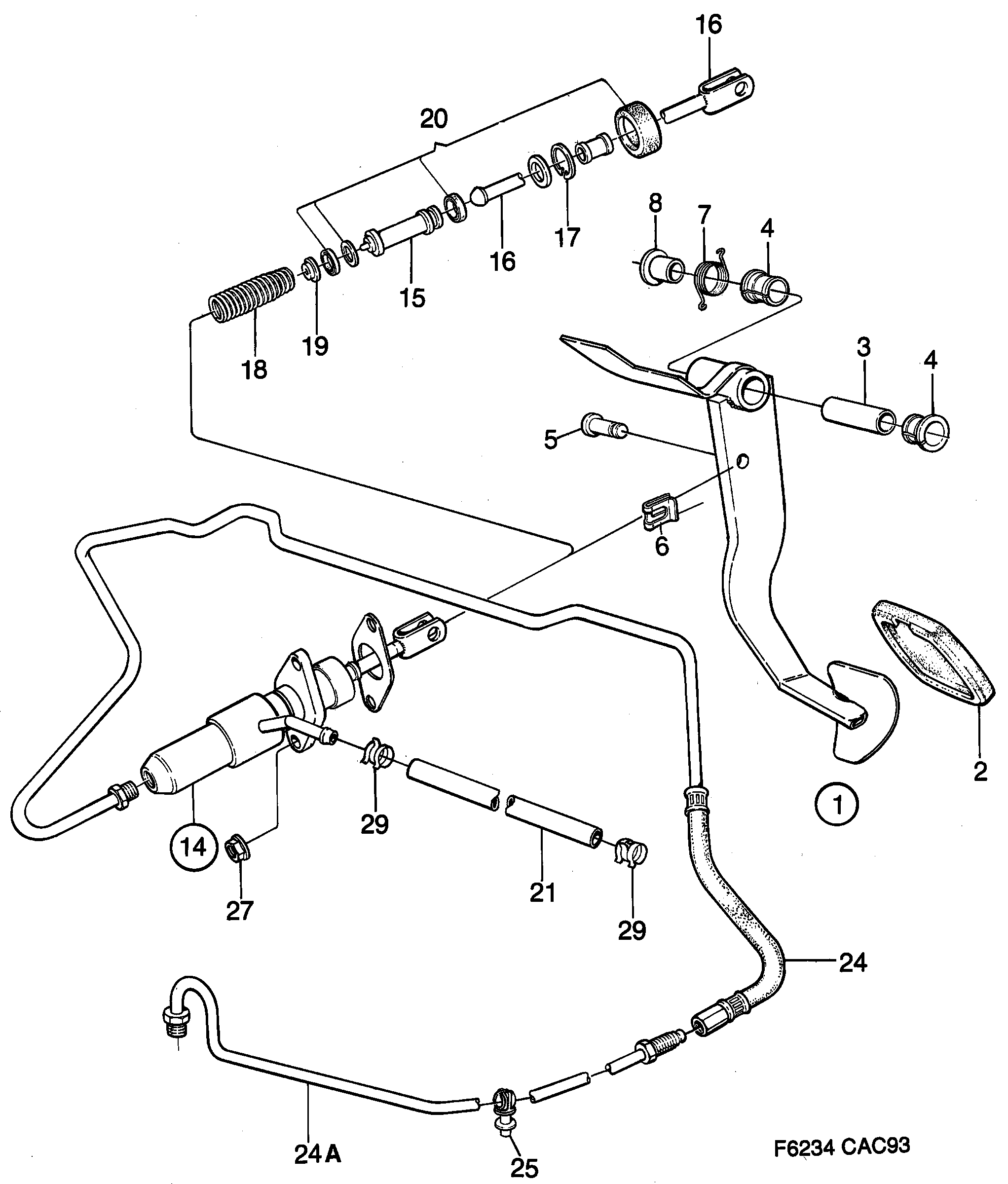

Saab 9000 Pedal, master cylinder diagram

Pos	Article	Part No.
1	Clutch pedal	8965535
2	Pedal pad	8965345
3	Spacer tube	8950297
4	Bearing bushing	8962128
5	Bolt	8956443
6	Clip	12780365 (replaces 8252553)
7	Return spring	8966756
8	Spacer sleeve	8970196
14	Clutch cylinder	4385019
15	Piston	4385027
16	Push rod	4385035
16	Push rod	8968729
17	Lock ring	8957193
18	Spring	8986622
19	Spring support	8945156
20	Repair kit	8993156
21	Hose	8957326
21	Hose	4118949
23	Gasket	8941478
24	Clutch hose	4904231 (replaces 4028791)
24	Clutch hose	4904231 (replaces 4280921)
24A	Tube	4028742
24A	Tube	4477048 (replaces 4384111)
24A	Tube	4477048 (replaces 4385878)
25	Tube clamp	7352651
27	Nut	92150143 (replaces 7971922)
29	Hose clamp	7973605
