Saab 9000 1990-1993 Pedal, master cylinder

Group 4 Transmission, section 140

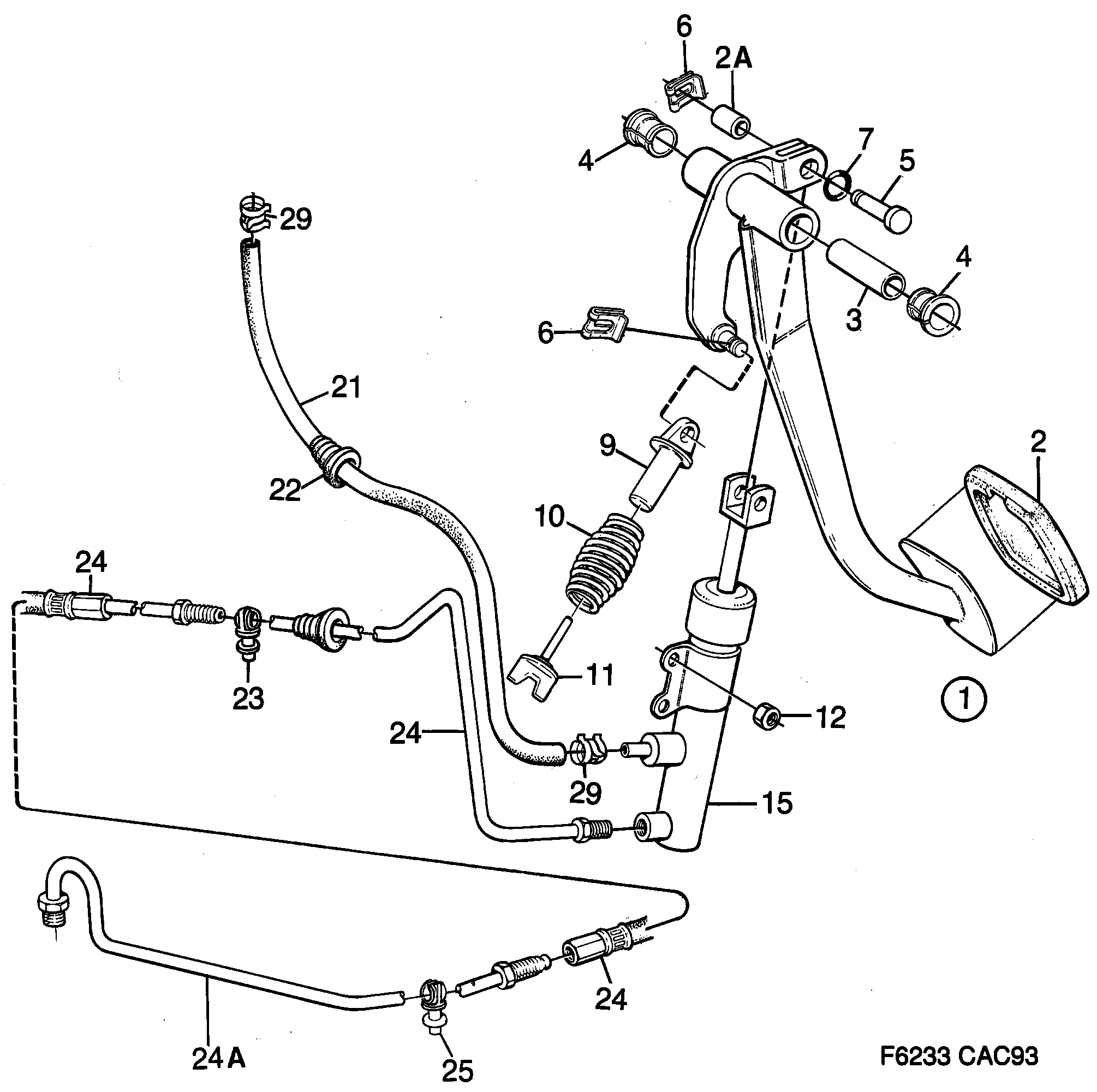

Saab 9000 Pedal, master cylinder diagram

Pos	Article	Part No.
1	Clutch pedal	8973299
2	Pedal pad	8916272
2A	Bushing	9105495
3	Spacer tube	30519674 (replaces 8970832)
4	Bearing bushing	8962128
5	Bolt	4105821
6	Clip	12780365 (replaces 8252553)
7	O-ring	30541940 (replaces 4190807)
9	Spring guide	4000568
10	Spring	8958316
10	Spring	4107975
11	Spring guide	8957813
12	Lock nut	92150265 (replaces 8073512)
15	Clutch cylinder	4384079 (replaces 7594039)
15	Clutch cylinder	4384079
21	Hose	4027751
21	Hose	4121562
22	Grommet	4027769
23	Tube clamp	4028221
24	Clutch hose	4903670 (replaces 7596174)
24	Clutch hose	4903670 (replaces 4279543)
24	Clutch hose	4903670 (replaces 4385167)
24A	Tube	4029369
24A	Tube	4477022 (replaces 4281200)
24A	Tube	4477022 (replaces 4385860)
25	Tube clamp	7352651
29	Hose clamp	7973605
