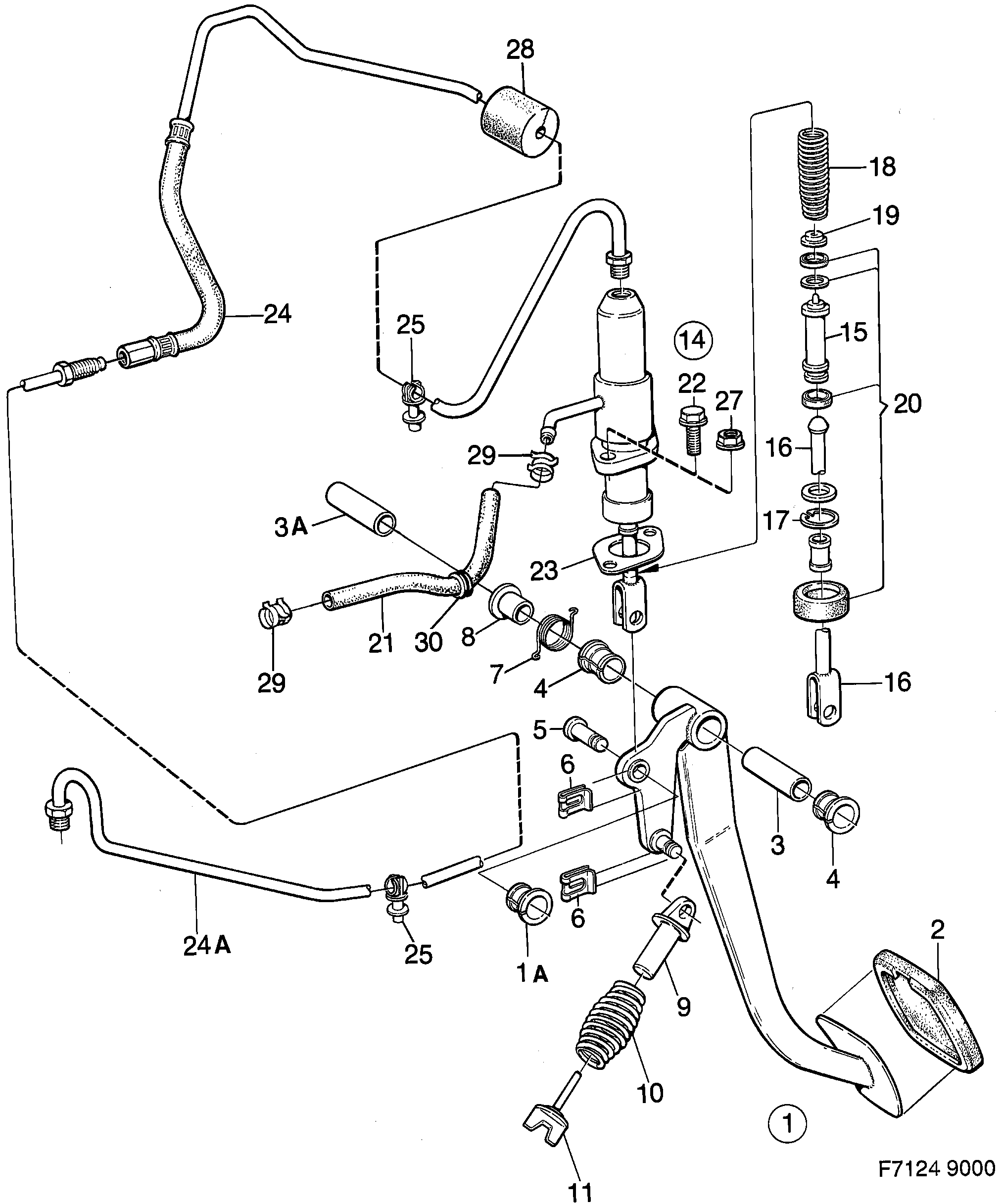

Group 4 Transmission, section 130
| Pos | Article | Part No. |
|---|---|---|
| 1 | Clutch pedal | 8957367 |
| 1 | Clutch pedal | 8963639 |
| 1 | Clutch pedal | 8965535 |
| 1A | Plastic bushing | 8959082 |
| 2 | Pedal pad | 8916272 |
| 2 | Pedal pad | 8965345 |
| 3 | Spacer tube | 8950933 |
| 3A | Spacer tube | 8950297 |
| 4 | Bearing bushing | 8962128 |
| 5 | Bolt | 8956450 |
| 5 | Bolt | 8956443 |
| 6 | Clip | 12780365 (replaces 8252553) |
| 7 | Return spring | 8962052 |
| 7 | Return spring | 8966756 |
| 8 | Spacer sleeve | 8970196 (replaces 8962045) |
| 8 | Spacer sleeve | 8970196 |
| 9 | Guide | 8955924 |
| 10 | Spring | 8958316 |
| 11 | Spring guide | 8957813 |
| 14 | Clutch cylinder | 4385001 |
| 14 | Clutch cylinder | 4385019 |
| 15 | Piston | 4385027 |
| 16 | Push rod | 4385035 |
| 16 | Push rod | 8957201 |
| 16 | Push rod | 8968711 |
| 16 | Push rod | 8957318 |
| 16 | Push rod | 8968729 |
| 17 | Lock ring | 7313232 |
| 18 | Spring | 8986622 |
| 19 | Spring support | 8945156 |
| 20 | Repair kit | 8993156 |
| 21 | Hose | 8957227 |
| 21 | Hose | 8966855 |
| 21 | Hose | 4027793 |
| 21 | Hose | 8957326 |
| 21 | Hose | 8966889 |
| 21 | Hose | 4118949 |
| 22 | Screw | 7975113 |
| 23 | Gasket | 8941478 |
| 24 | Hose | 8963712 |
| 24 | Clutch hose | 4904165 |
| 24 | Clutch hose | 4904181 |
| 24 | Hose | 8964009 |
| 24 | Clutch hose | 7598188 |
| 24 | Clutch hose | 4904231 |
| 24A | Tube | 8963704 |
| 24A | Tube | 8966814 |
| 24A | Tube | 4028742 |
| 25 | Tube clamp | 7963887 |
| 25 | Tube clamp | 7352651 |
| 27 | Nut | 92150143 (replaces 7971922) |
| 28 | Grommet | 7599004 (replaces 8966103) |
| 28 | Grommet | 7599004 |
| 29 | Hose clamp | 7973605 |
| 30 | Grommet | 7399199 |
