Saab 9000 1993-1993 Connector housing etc

Group 3b Electrical, connector, section 980

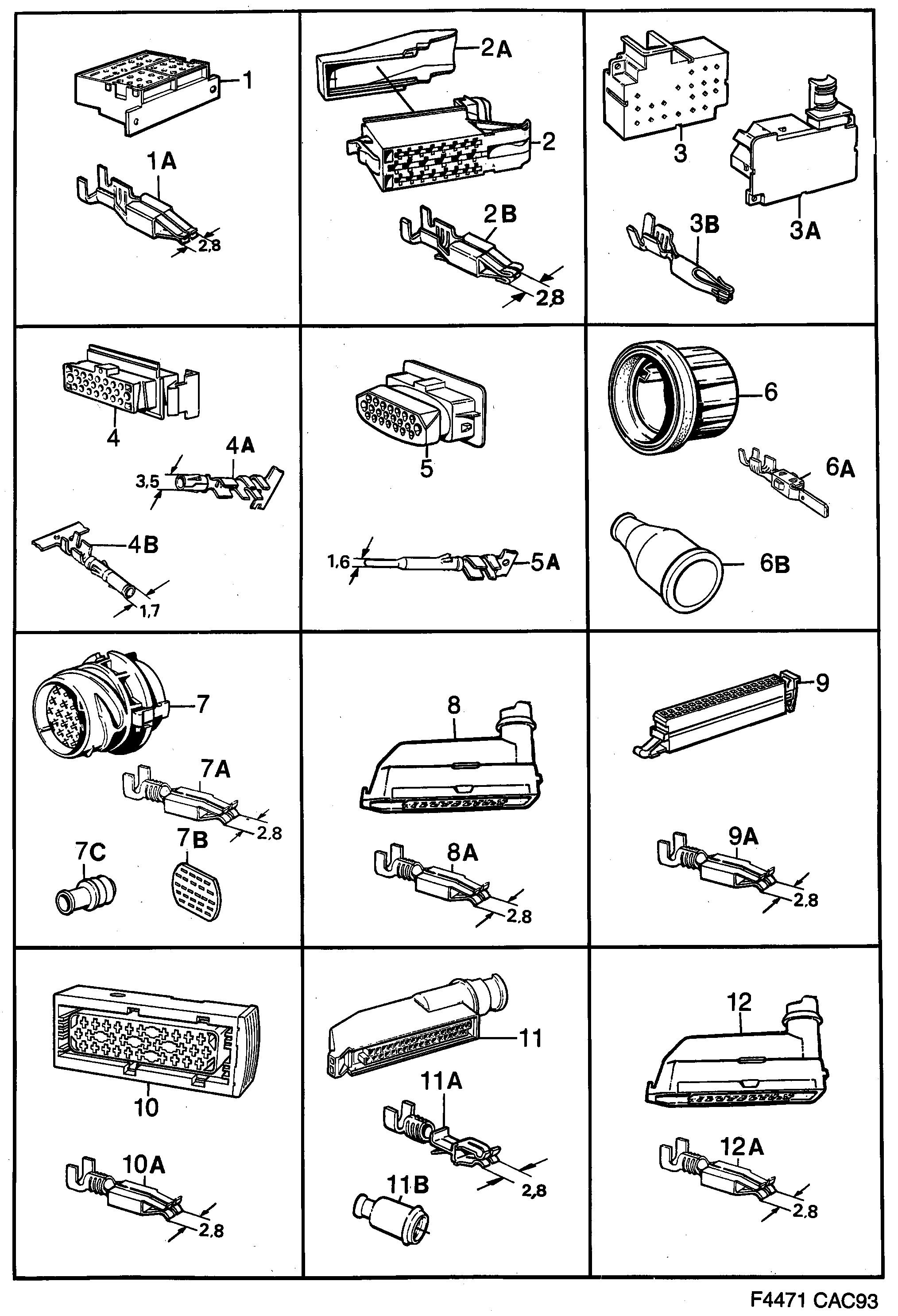

Saab 9000 Connector housing etc diagram

Pos	Article	Part No.
1	Connector housing	9125543
1A	Cable terminal	30520557 (replaces 9120791)
2	Connector housing	4060893
2A	Cover	4067617
2B	Cable terminal	12789796 (replaces 9120957)
3	Connector housing	9527755
3A	Connector housing	9527763
3B	Cable terminal	9527771
4	Connector housing	9525106
4A	Cable terminal	8582595
4B	Cable terminal	8587552
5	Connector housing	9525114
5A	Cable terminal	8593964
6	Connector housing	4174868
6A	Cable terminal	12789934 (replaces 4115192)
6B	Rubber protection	4111308
6C	Lock ring	4588349
7	Connector housing	4176244
7A	Cable terminal	4061586
7B	Seal	4352936
7C	Seal	12798370 (replaces 4061958)
7C	Seal	4061966
7C	Seal	12798372 (replaces 4061974)
8	Connector housing	4176582
9	Connector housing	4176186
10	Connector housing	4114609
11	Connector housing	9125519
11A	Cable terminal	12789796 (replaces 9120668)
11B	Rubber protection	8587511
12	Connector housing	4175428
