Saab 9000 1993-1993 Connector housing etc

Group 3b Electrical, connector, section 950

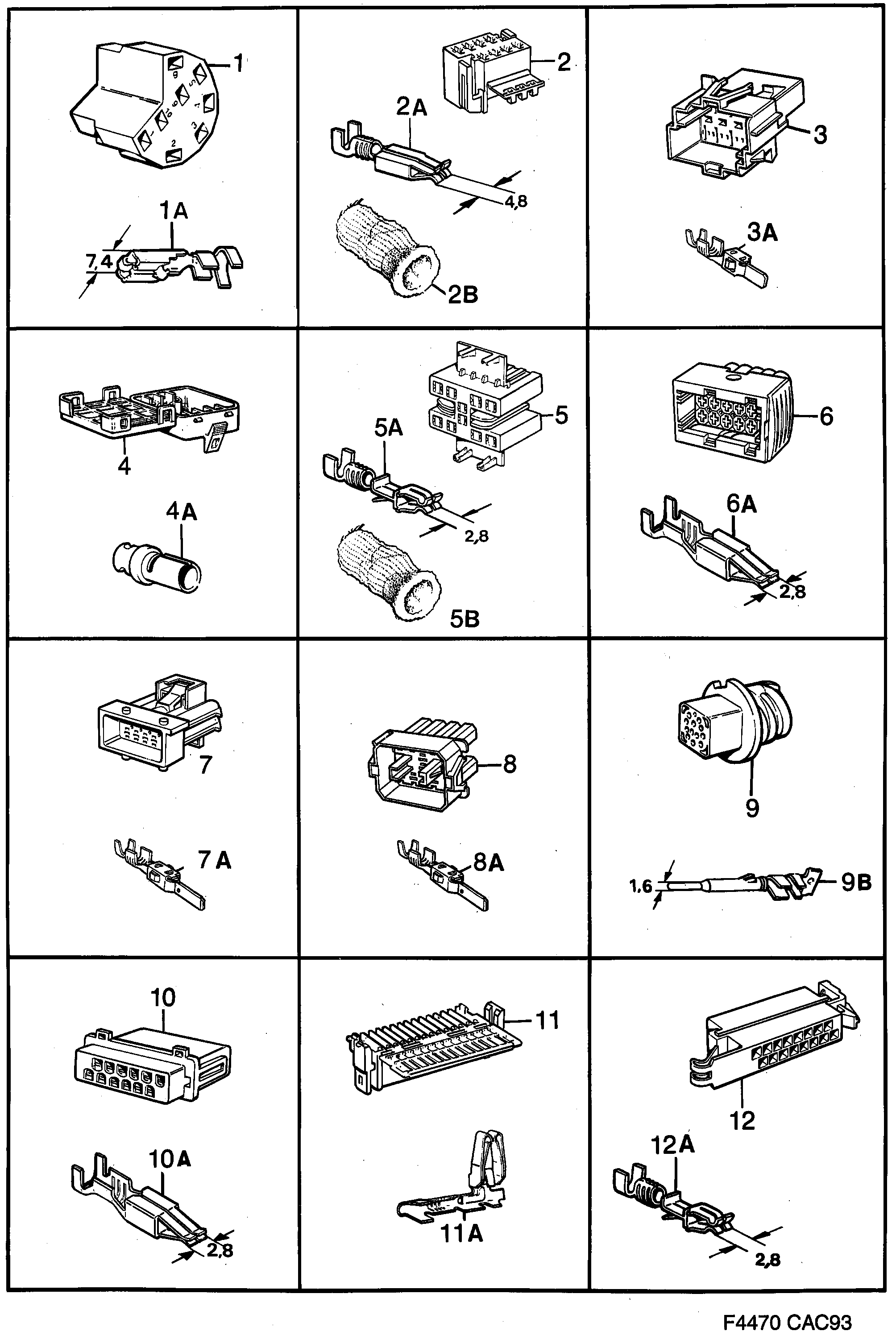

Saab 9000 Connector housing etc diagram

Pos	Article	Part No.
1	Connector housing	8544363
1A	Cable terminal	8560476
1A	Cable terminal	8541211
2	Connector housing	9124090
2A	Cable terminal	30520557 (replaces 9120791)
2B	Insulation	9568775
3	Connector housing	4117768
3A	Cable terminal	4115580
4	Connector housing	30526066 (replaces 9512930)
4A	Cable terminal	9509746
5	Connector housing	12764801 (replaces 9123399)
5A	Cable terminal	12789796 (replaces 9120668)
5A	Cable terminal	12789796 (replaces 9120957)
6	Connector housing	12788954 (replaces 4114005)
6A	Cable terminal	4061586
7	Connector housing	12788959 (replaces 4114054)
7A	Cable terminal	12789934 (replaces 4115192)
8	Connector housing	4117461
8A	Cable terminal	12789934 (replaces 4115077)
8A	Cable terminal	12789932 (replaces 4115085)
9	Connector housing	9529512
9A	Cable terminal	9526401
10	Connector housing	9525031
11	Connector housing	30525826 (replaces 9503020)
11A	Cable terminal	9505397
12	Connector housing	9566282
