Saab 9000 1993-1993 Connector housing etc

Group 3b Electrical, connector, section 890

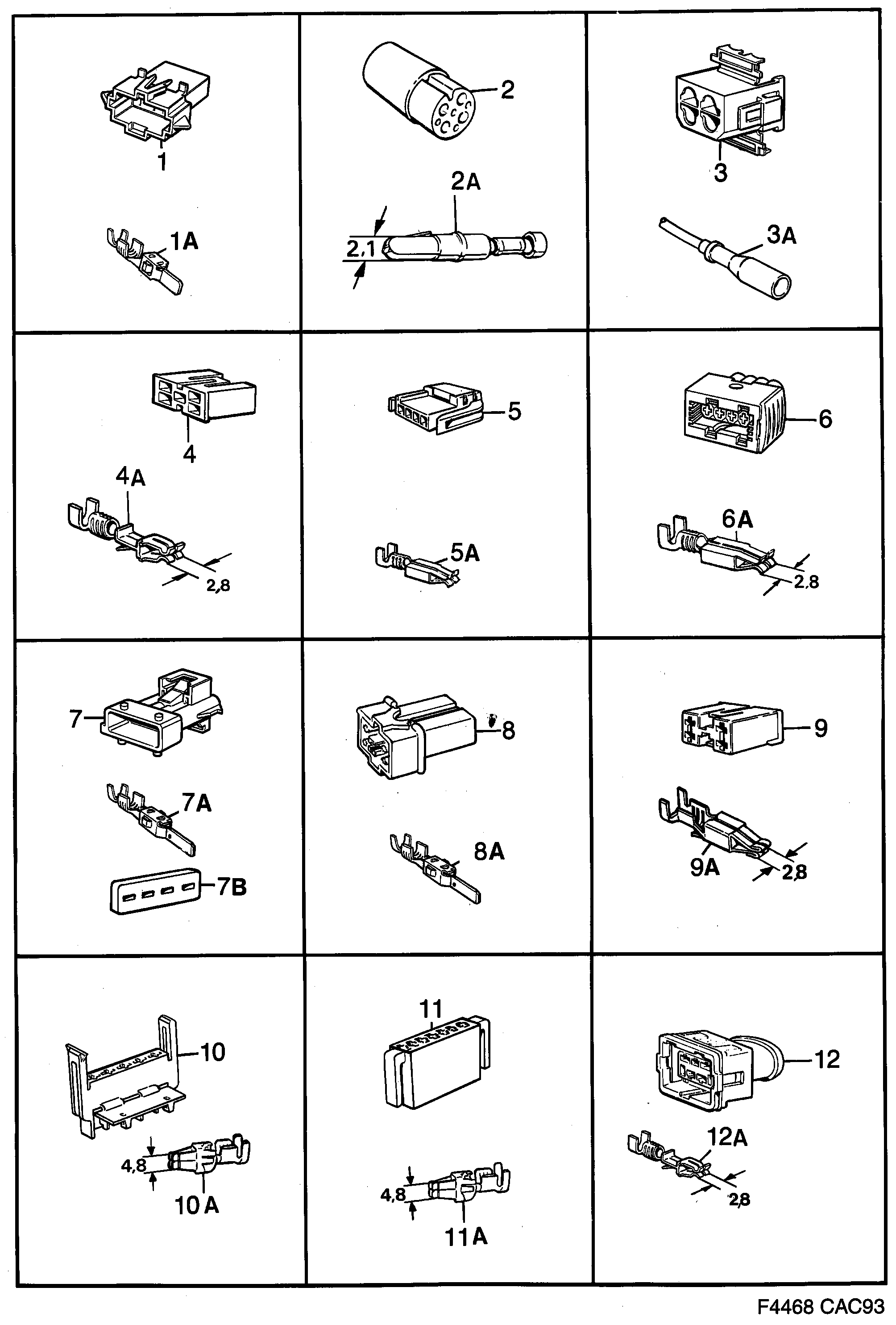

Saab 9000 Connector housing etc diagram

Pos	Article	Part No.
1	Connector housing	4117669
1A	Cable terminal	4115580
2	Connector housing	8530099
2A	Cable terminal	8522583
3	Connector housing	9503434
3A	Connector	8547796
3A	Connection	7874498
4	Connector housing	9123555
4A	Cable terminal	12789796 (replaces 9508714)
5	Connector housing	12790244 (replaces 4060869)
5A	Cable terminal	12790467 (replaces 4063970)
5A	Cable terminal	9121088
6	Connector housing	12788993 (replaces 4113601)
6A	Cable terminal	4350526
7	Connector housing	12788998 (replaces 4113650)
7A	Cable terminal	12789934 (replaces 4115192)
7B	Seal	12789004 (replaces 4113759)
8	Connector housing	4117263
8A	Cable terminal	12789934 (replaces 4115077)
9	Connector housing	4061503
9A	Cable terminal	12789796 (replaces 9120957)
10	Connector housing	9122789
10A	Cable terminal	30520557 (replaces 9120791)
11	Connector housing	9124173
12	Connector housing	4432365
