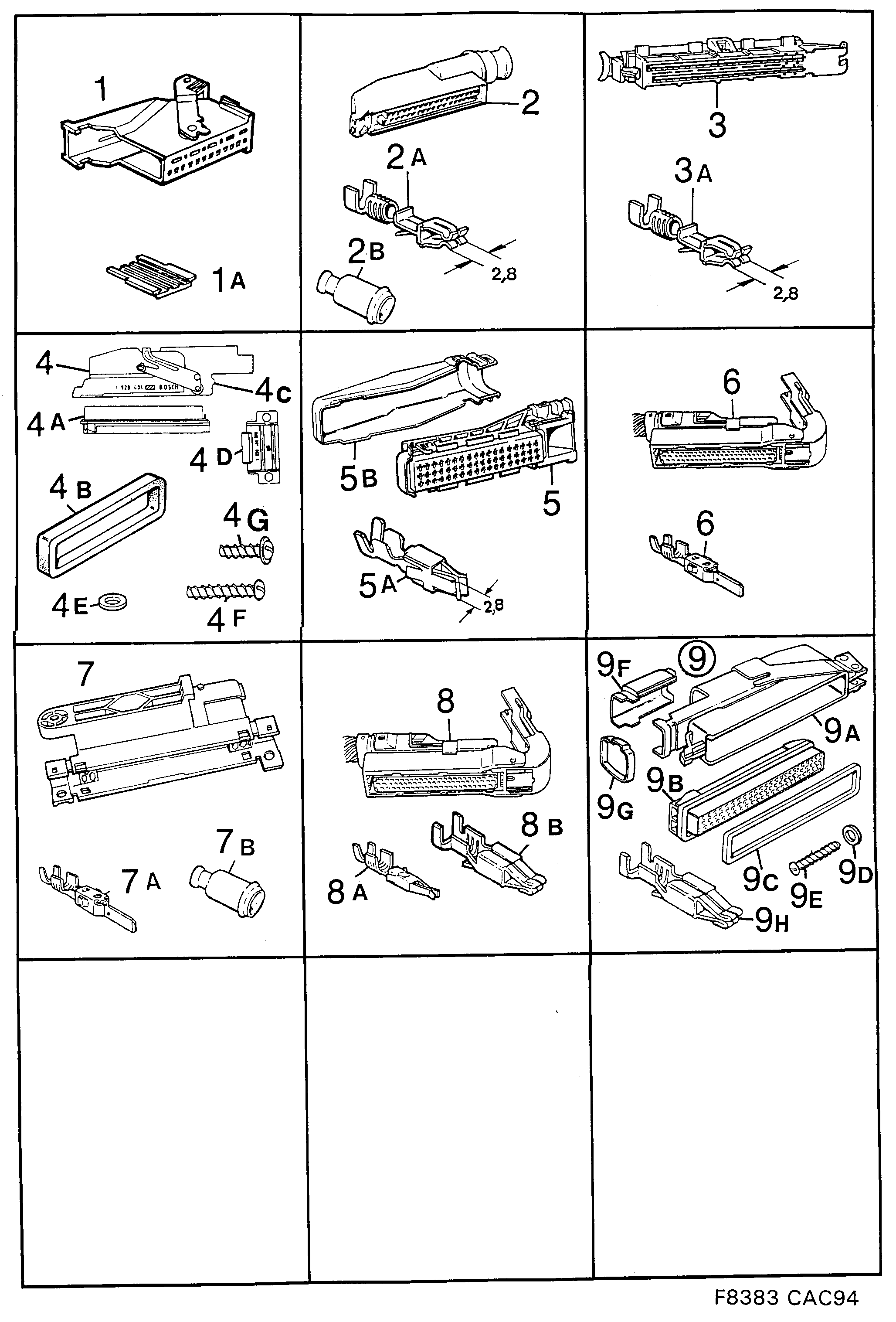

Group 3b Electrical, connector, section 870
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cover | 4734455 |
| 1A | Locking | 12799084 (replaces 4734471) |
| 2 | Connector housing | 4434031 |
| 2A | Cable terminal | 12789796 (replaces 9120957) |
| 3 | Connector housing | 9565045 |
| 3A | Cable terminal | 12790467 (replaces 4063970) |
| 4 | Connector housing | 4517629 |
| 4A | Connector housing | 4224630 |
| 4B | Seal | 4224655 |
| 4C | Cover | 4517637 |
| 4D | Seal | 4517652 |
| 4E | Seal | 8587461 |
| 4F | Screw | 4223483 |
| 4G | Screw | 4223574 |
| 5 | Connector housing | 4353637 |
| 5A | Cable terminal | 4061586 |
| 5B | Cover | 4418380 |
| 6 | Connector housing | 4176616 |
| 6A | Cable terminal | 4354353 |
| 7 | Connector housing | 4354692 |
| 7 | Cable terminal | 4535530 |
| 7A | Cable terminal | 4538625 |
| 7A | Cable terminal | 12789934 (replaces 4115192) |
| 7B | Seal | 12798375 (replaces 4354239) |
| 8 | Connector housing | 4176624 |
| 9 | Connector housing | 4222451 |
| 9A | Cover | 4223558 |
| 9B | Connector housing | 4223541 |
| 9C | Seal | 4223566 |
| 9F | Cable attachment | 4223582 |
| 9G | Tie strap | 4223590 |
