Saab 9000 1996-1996 Connector housing etc

Group 3b Electrical, connector, section 840

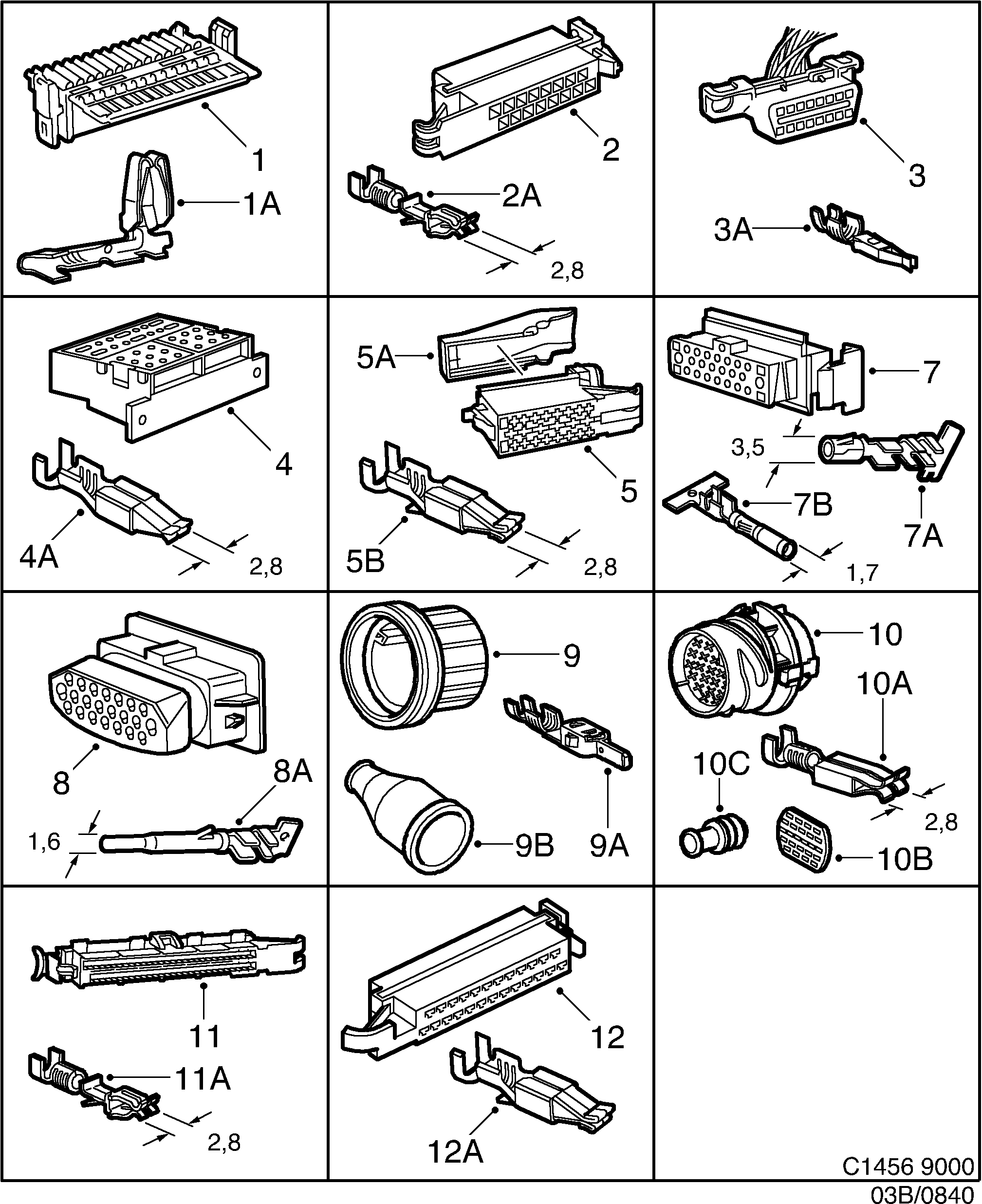

Saab 9000 Connector housing etc diagram

Pos	Article	Part No.
1	Connector housing	30525826 (replaces 9503020)
1A	Cable terminal	9505397
2	Connector housing	9566282
2A	Cable terminal	12789796 (replaces 9120668)
3	Connector housing	4807954 (replaces 4224606)
3A	Cable terminal	12790414 (replaces 4115499)
4	Connector housing	9125543
4A	Cable terminal	30520557 (replaces 9120791)
5	Connector housing	4060893
5A	Cover	4067617
5B	Cable terminal	12789796 (replaces 9120957)
7	Connector housing	9525106
7A	Cable terminal	8582595
7B	Cable terminal	8587552
8	Connector housing	9525114
8A	Cable terminal	8593964
9	Connector housing	4174868
9A	Cable terminal	12789934 (replaces 4115192)
9B	Rubber protection	4111308
9C	Lock ring	4588349
10	Connector housing	4176244
10A	Cable terminal	4061586
10B	Seal	4352936
10C	Seal	12798370 (replaces 4061958)
10C	Seal	4061966
10C	Seal	12798372 (replaces 4061974)
11	Connector housing	4176186
12	Connector housing	4537429
