Saab 9000 1996-1996 Connector housing etc

Group 3b Electrical, connector, section 810

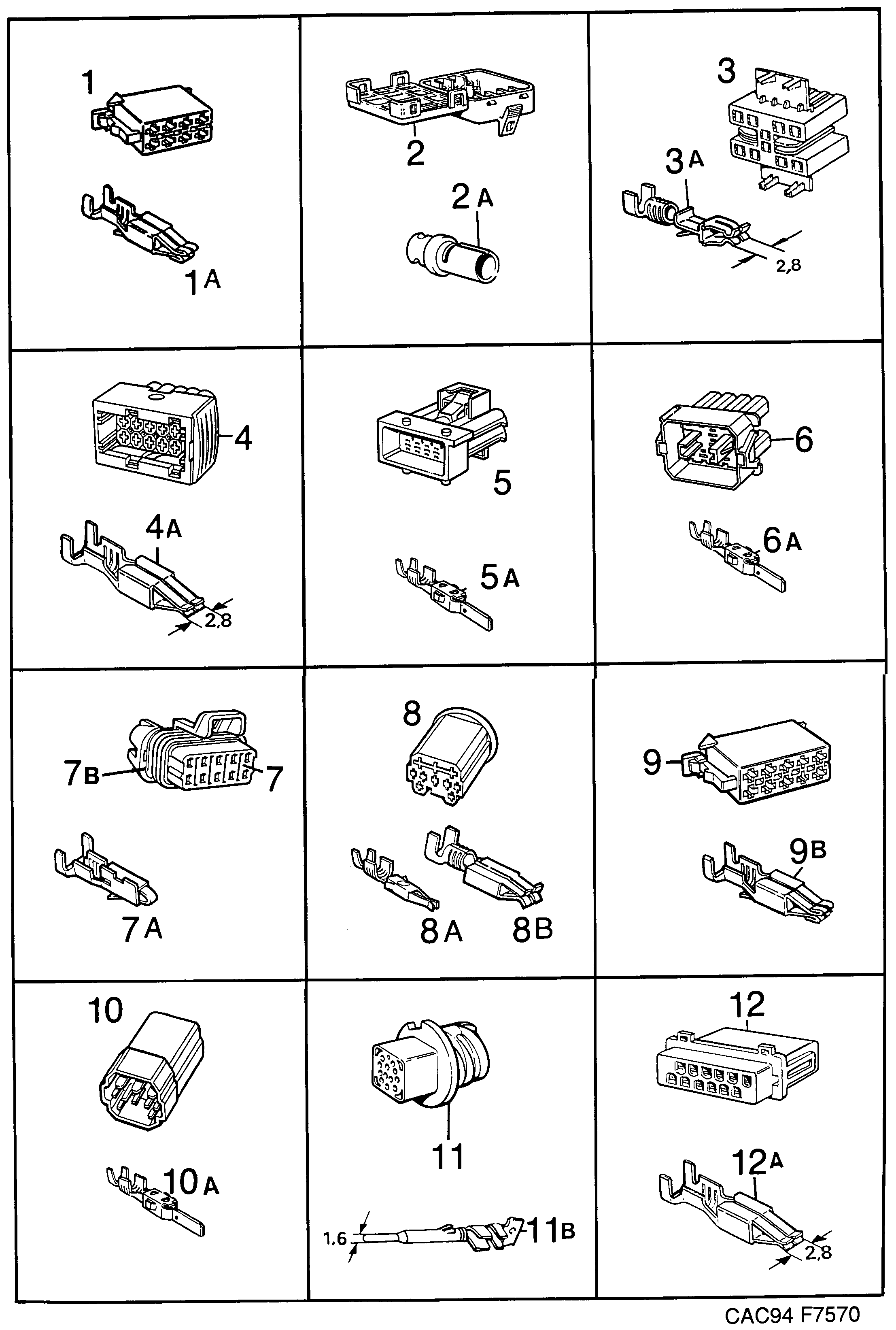

Saab 9000 Connector housing etc diagram

Pos	Article	Part No.
1	Connector housing	4203618
1A	Cable terminal	12789796 (replaces 9120957)
2	Connector housing	30526066 (replaces 9512930)
2A	Cable terminal	9509746
3	Connector housing	12764801 (replaces 9123399)
3A	Cable terminal	12789796 (replaces 9120668)
4	Connector housing	12788954 (replaces 4114005)
4A	Cable terminal	4061586
5	Connector housing	12788959 (replaces 4114054)
5A	Cable terminal	12789934 (replaces 4115192)
6	Connector housing	4117461
6A	Cable terminal	12789934 (replaces 4115077)
6A	Cable terminal	12789932 (replaces 4115085)
7	Connector housing	4203568
7A	Cable terminal	4418505
7B	Locking	4203576
8	Connector housing	12756334 (replaces 4411518)
8A	Cable terminal	12790414 (replaces 4115499)
9	Connector housing	4203634
10	Connector housing	4410510
11	Connector housing	9529512
11A	Cable terminal	9526401
12	Connector housing	9525031
