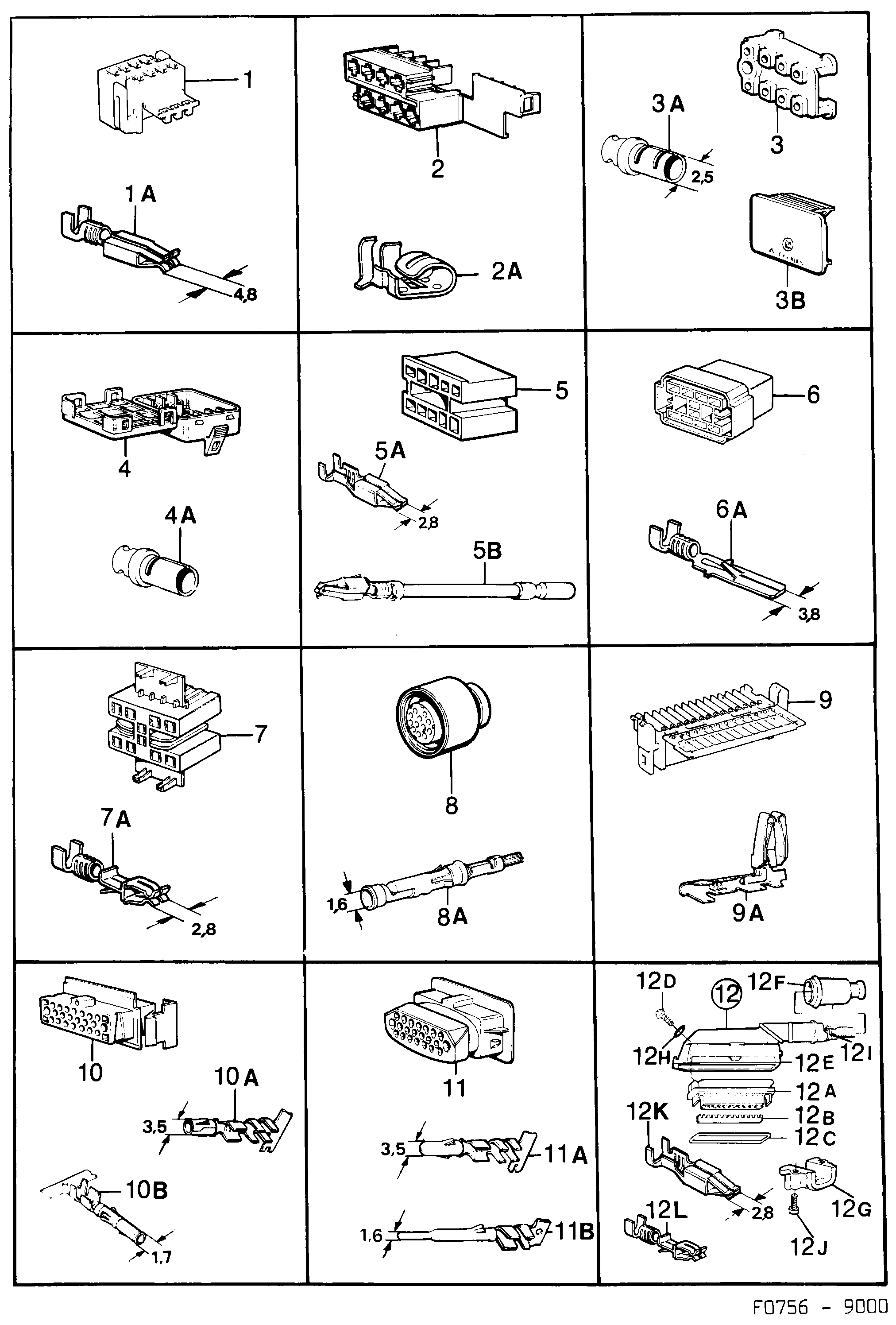

Group 3b Electrical, connector, section 760
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 9124090 |
| 1A | Cable terminal | 30520557 (replaces 9120791) |
| 2 | Connector housing | 9503525 |
| 2A | Cable terminal | 8582090 |
| 3 | Connector housing | 9552159 |
| 3A | Cable terminal | 9552175 |
| 3B | Cover | 9552167 |
| 4 | Connector housing | 30526066 (replaces 9512930) |
| 4A | Cable terminal | 9509746 |
| 5 | Connector housing | 8544371 |
| 5A | Cable terminal | 8521593 |
| 5B | Cable terminal | 8522617 |
| 6 | Connector housing | 9122557 |
| 6A | Cable terminal | 9552100 |
| 7 | Connector housing | 12764801 (replaces 9123399) |
| 7A | Cable terminal | 12789796 (replaces 9120668) |
| 8 | Connector housing | 9529538 |
| 8A | Cable terminal | 9525817 |
| 9 | Connector housing | 30525826 (replaces 9503020) |
| 9A | Cable terminal | 9505397 |
| 10 | Connector housing | 9525106 |
| 10A | Cable terminal | 8582595 (replaces 8544298) |
| 10B | Cable terminal | 8587552 |
| 11 | Connector housing | 9525114 |
| 11A | Cable terminal | 8582603 (replaces 8544314) |
| 11B | Cable terminal | 8593964 |
| 12 | Connector housing | 8579930 |
| 12A | Connector housing | 8587420 |
| 12B | Striker plate | 8587438 |
| 12C | Seal | 8587453 |
| 12D | Screw | 8587487 |
| 12E | Cover | 8587412 |
| 12F | Bushing | 8587446 |
| 12G | Bracket | 8587495 |
| 12H | Seal | 8587461 |
| 12I | Tie strap | 7971872 |
| 12J | Screw | 7971351 |
