Saab 9000 1992-1992 Connector housing etc

Group 3b Electrical, connector, section 740

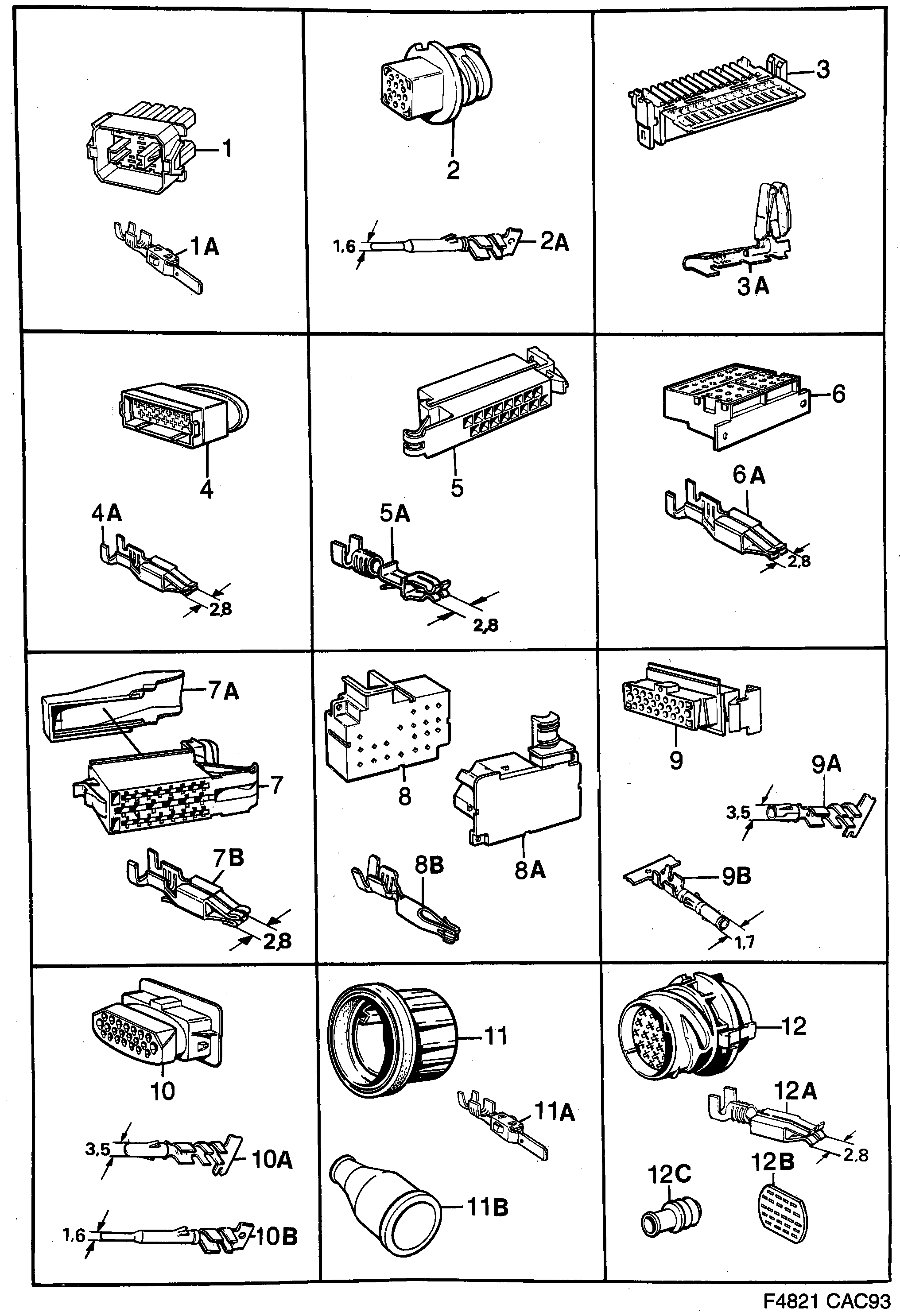

Saab 9000 Connector housing etc diagram

Pos	Article	Part No.
1	Connector housing	4117461
1A	Cable terminal	12789934 (replaces 4115077)
1A	Cable terminal	12789932 (replaces 4115085)
2	Connector housing	9529512
2A	Cable terminal	9526401
3	Connector housing	30525826 (replaces 9503020)
3A	Cable terminal	9505397
4	Connector housing	4109278
4A	Cable terminal	12789796 (replaces 9120957)
5	Connector housing	9566282
5A	Cable terminal	12789796 (replaces 9120668)
6	Connector housing	9125543
6A	Cable terminal	30520557 (replaces 9120791)
7	Connector housing	4060893
7A	Cover	4067617
8	Connector housing	9527755
8A	Connector housing	9527763
8B	Cable terminal	9527771
9	Connector housing	9525106
9A	Cable terminal	8582595
9B	Cable terminal	8587552
10	Connector housing	9525114
10A	Cable terminal	8582603
10B	Cable terminal	8593964
11	Connector housing	4174868
11A	Cable terminal	12789934 (replaces 4115192)
11B	Rubber protection	4111308
11C	Lock ring	4588349
12	Connector housing	4176244
12A	Cable terminal	4061586
12B	Seal	4352936
12C	Seal	12798370 (replaces 4061958)
12C	Seal	4061966
12C	Seal	12798372 (replaces 4061974)
