Saab 9000 1996-1996 Connector housing etc

Group 3b Electrical, connector, section 660

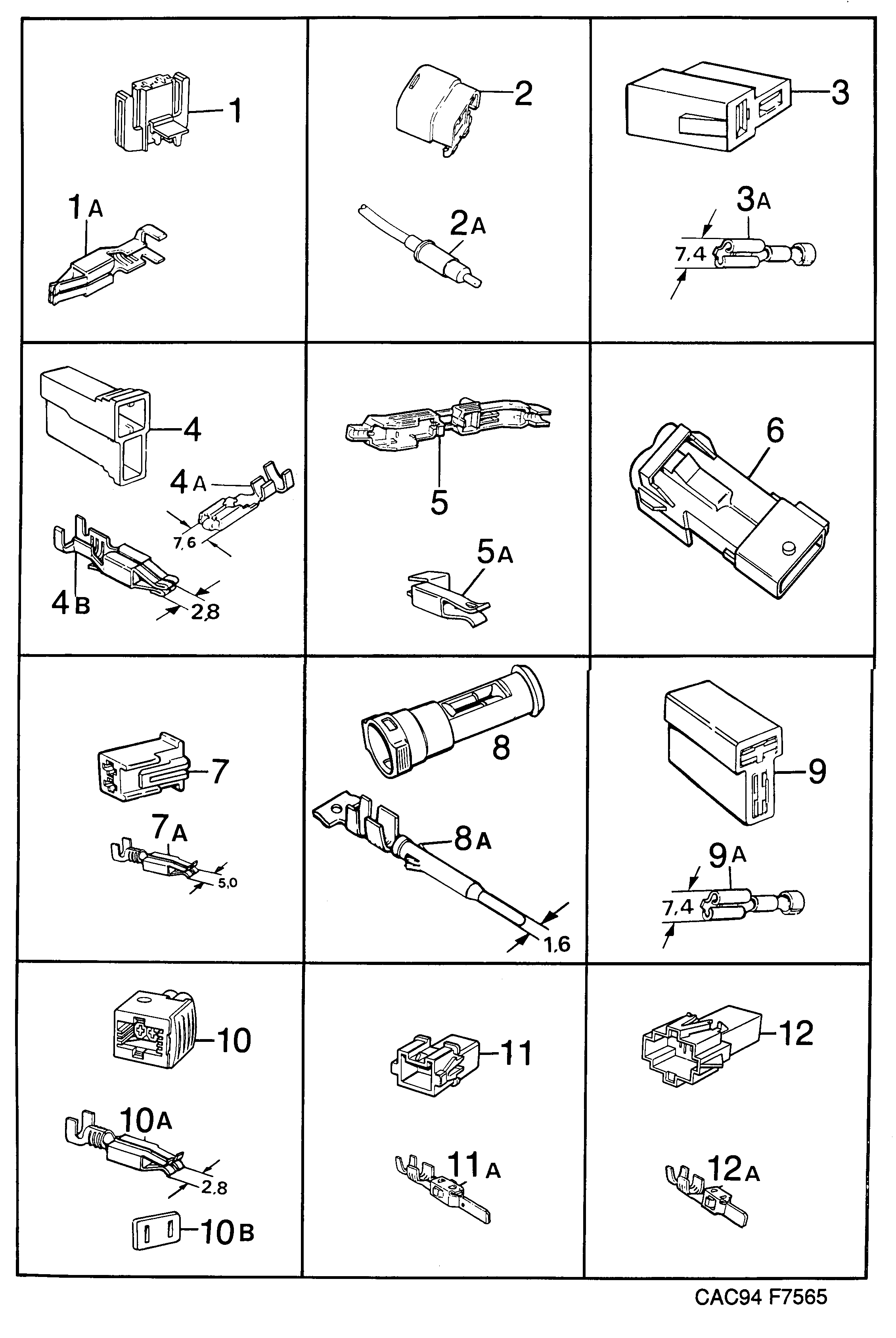

Saab 9000 Connector housing etc diagram

Pos	Article	Part No.
1	Connector housing	30520661 (replaces 9124157)
1A	Cable terminal	30520556 (replaces 9120783)
1A	Cable terminal	30520557 (replaces 9120791)
2	Connector housing	9501685
2A	Connector	8547770
3	Connector housing	8558538
3A	Cable terminal	8522534
4	Connector housing	12790282 (replaces 8574949)
4A	Cable terminal	8560476
4B	Cable terminal	12789796 (replaces 9120957)
6	Connector housing	12788987 (replaces 4113452)
7	Connector housing	12790106 (replaces 9123548)
7A	Cable terminal	12789796 (replaces 9120668)
8	Connector housing	4224895
8A	Cable terminal	9519398
9	Connector housing	7155096
9A	Cable terminal	7971708
10	Connector housing	12788933 (replaces 4113205)
10A	Cable terminal	4061586
10B	Seal	12788992 (replaces 4114310)
11	Connector housing	12795968 (replaces 4117164)
11A	Cable terminal	12789934 (replaces 4115077)
12	Connector housing	4117560
12A	Cable terminal	4115580
