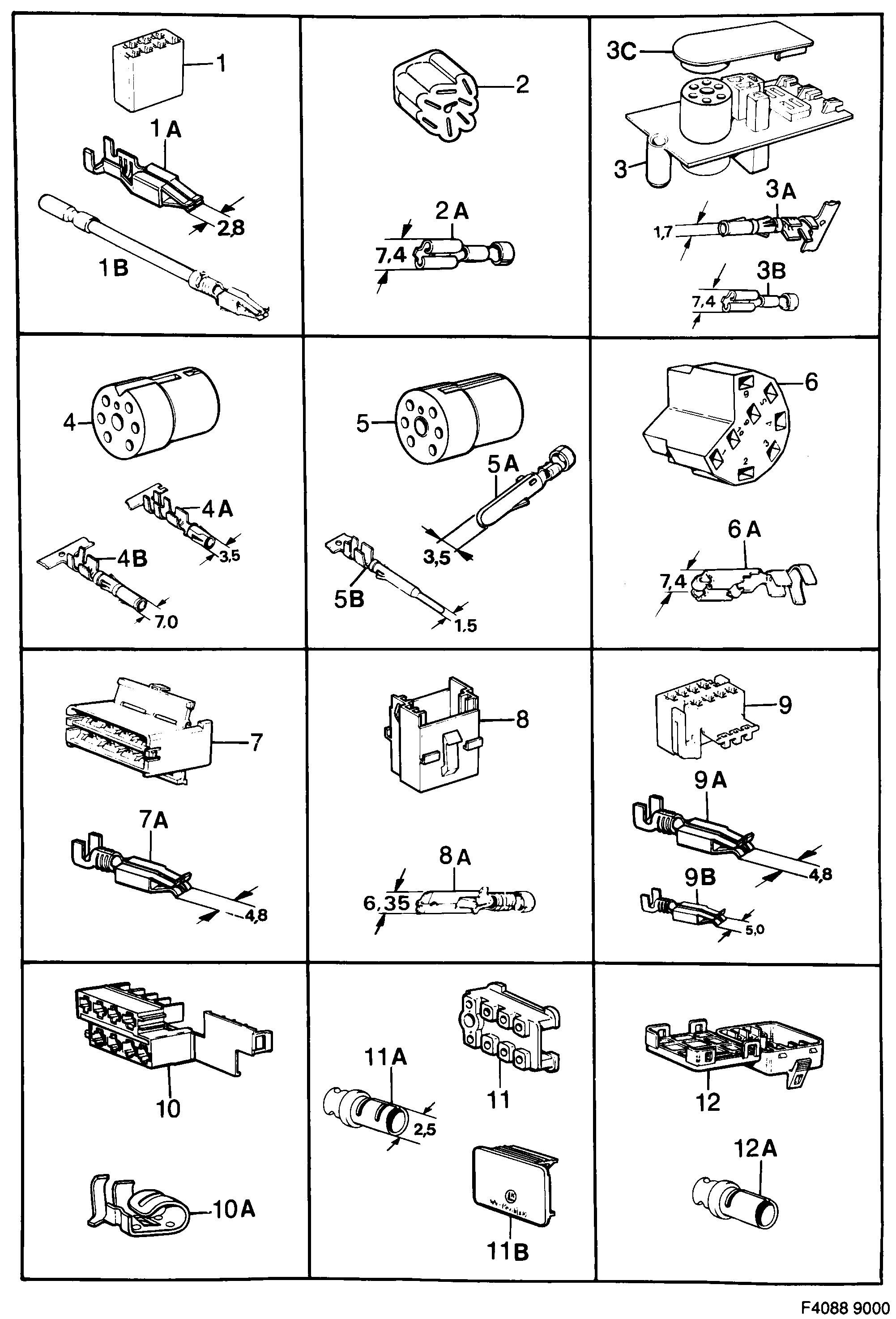

Group 3b Electrical, connector, section 550
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 9123381 |
| 1A | Cable terminal | 8521593 |
| 1B | Cable terminal | 8522617 |
| 2 | Connector housing | 9503251 |
| 2A | Cable terminal | 7972029 |
| 3 | Switch | 9512591 |
| 3A | Cable terminal | 8587552 |
| 3A | Cable terminal | 8587560 |
| 3B | Cable terminal | 8582454 |
| 3C | Cover | 9520974 |
| 4 | Switch | 8521700 |
| 4A | Cable terminal | 8582595 (replaces 8544298) |
| 5 | Connector housing | 8521718 |
| 5A | Cable terminal | 8582603 (replaces 8544314) |
| 5B | Cable terminal | 8593964 |
| 6 | Connector housing | 8544363 |
| 6A | Cable terminal | 8541203 |
| 6A | Cable terminal | 8541211 |
| 7 | Connector housing | 8533655 |
| 7A | Cable terminal | 30520555 (replaces 9120775) |
| 8 | Connector housing | 9124181 |
| 8A | Cable terminal | 8593089 |
| 8A | Cable terminal | 7155062 |
| 8A | Cable terminal | 8516957 |
| 9 | Connector housing | 9124090 |
| 9A | Cable terminal | 30520556 (replaces 9120783) |
| 9A | Cable terminal | 30520557 (replaces 9120791) |
| 9B | Cable terminal | 9521972 |
| 9B | Cable terminal | 30520556 (replaces 9521980) |
| 10 | Connector housing | 9503525 |
| 10A | Cable terminal | 8582090 |
| 11 | Connector housing | 9552159 |
| 11A | Cable terminal | 9552175 |
| 11B | Cover | 9552167 |
| 12 | Connector housing | 30526066 (replaces 9512930) |
| 12A | Cable terminal | 9509746 |
