Saab 9000 1995-1995 Connector housing etc

Group 3b Electrical, connector, section 540

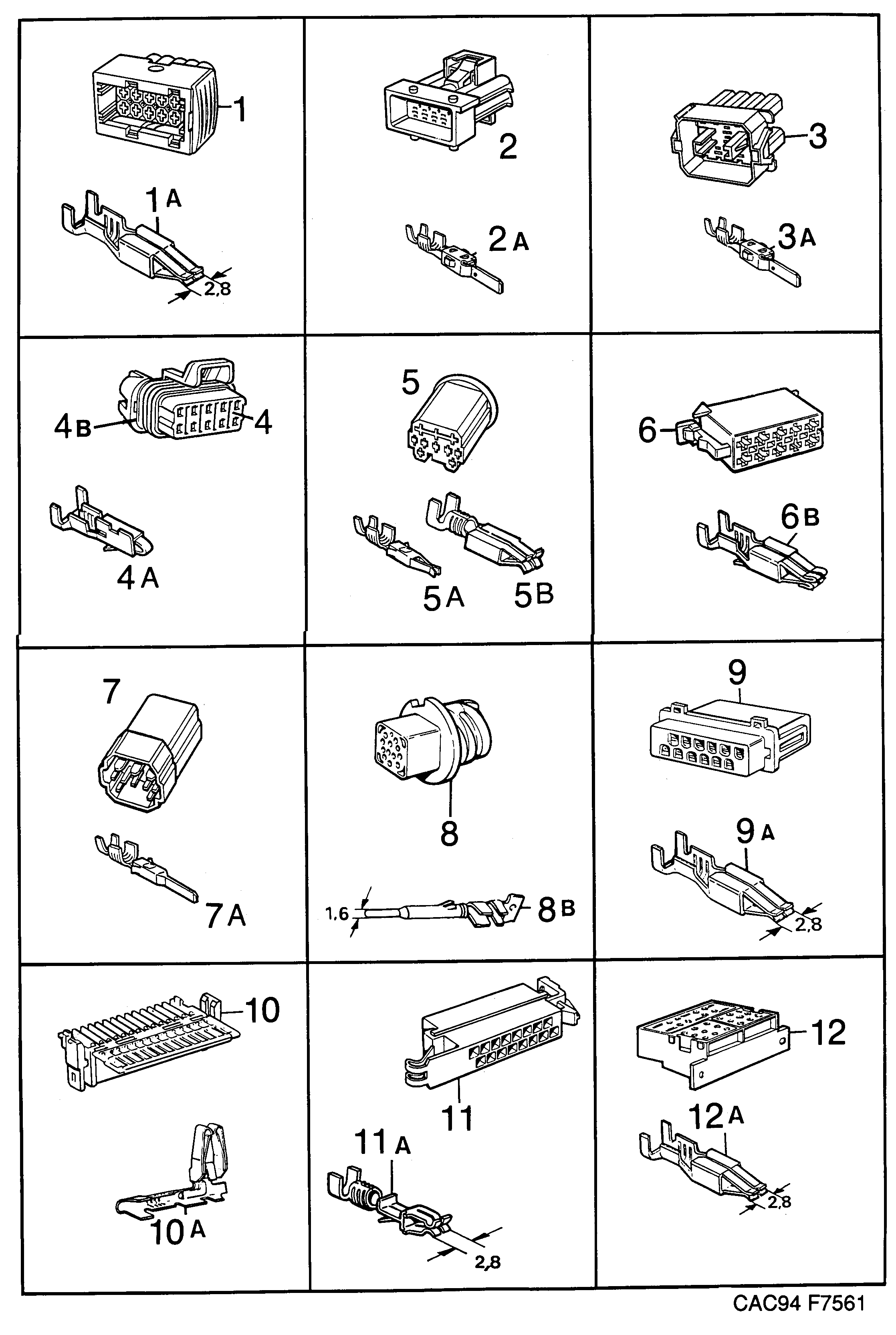

Saab 9000 Connector housing etc diagram

Pos	Article	Part No.
1	Connector housing	12788954 (replaces 4114005)
1A	Cable terminal	12789796 (replaces 9120957)
1A	Cable terminal	4061586
2	Connector housing	12788959 (replaces 4114054)
2A	Cable terminal	12789934 (replaces 4115192)
3	Connector housing	4117461
3A	Cable terminal	12789934 (replaces 4115077)
3A	Cable terminal	12789932 (replaces 4115085)
4	Connector housing	4203568
4A	Cable terminal	4418505
4B	Locking	4203576
5	Connector housing	12756334 (replaces 4411518)
5A	Cable terminal	12790414 (replaces 4115499)
6	Connector housing	4203634
7	Connector housing	4410510
8	Connector housing	9529512
8A	Cable terminal	9526401
9	Connector housing	9525031
10	Connector housing	30525826 (replaces 9503020)
10A	Cable terminal	9505397
11	Connector housing	9566282
11A	Cable terminal	12789796 (replaces 9120668)
12	Connector housing	9125543
12A	Cable terminal	30520557 (replaces 9120791)
