Saab 9000 1991-1991 Connector housing etc

Group 3b Electrical, connector, section 530

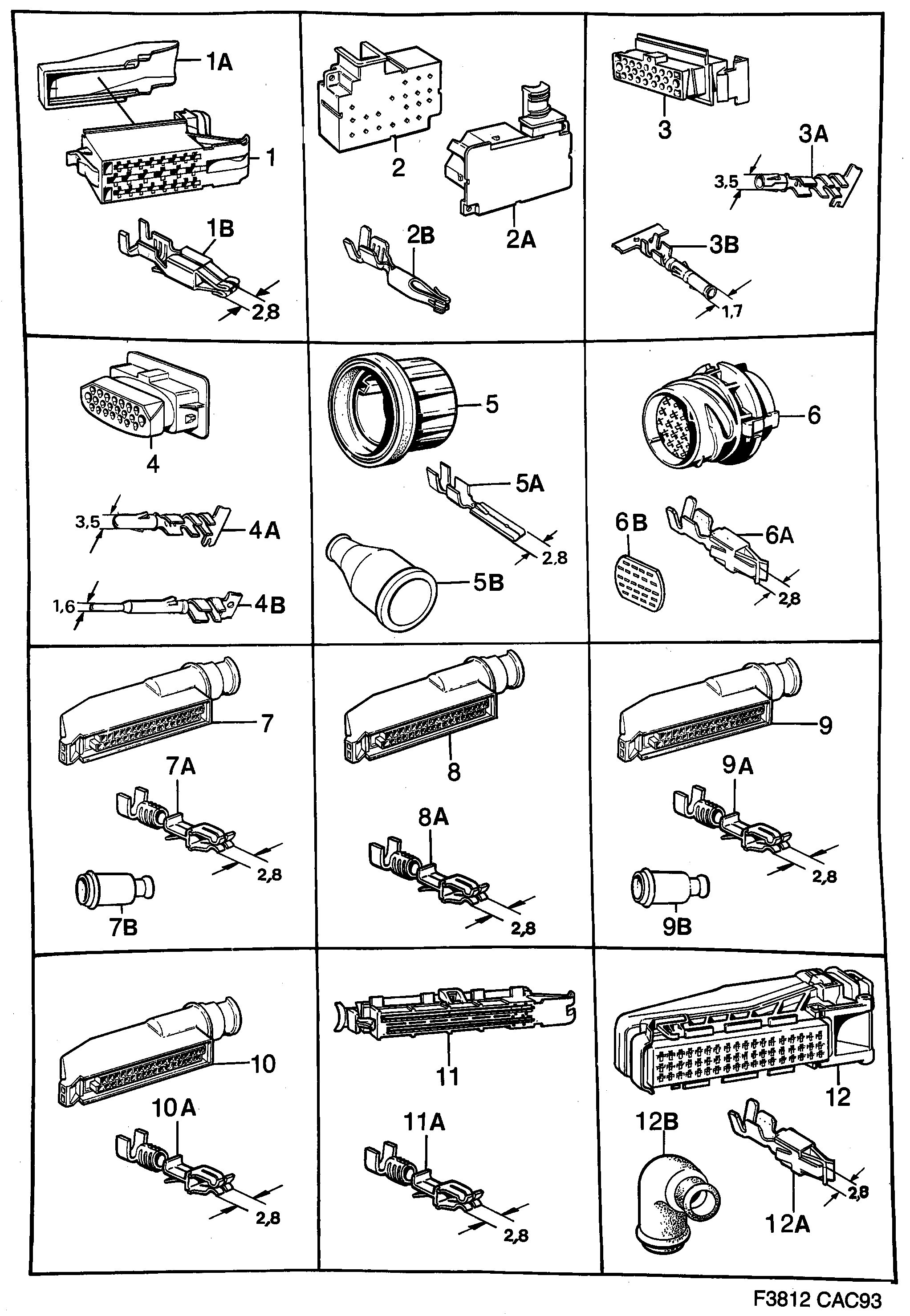

Saab 9000 Connector housing etc diagram

Pos	Article	Part No.
1	Connector housing	4060893
1A	Cover	4067617
1B	Cable terminal	12789796 (replaces 9120957)
2	Connector housing	9527755
2A	Connector housing	9527763
2B	Cable terminal	9527771
3	Connector housing	9525106
3A	Cable terminal	8582595
3B	Cable terminal	8587552
4	Connector housing	9525114
4A	Cable terminal	8582603
4B	Cable terminal	8593964
5	Connector housing	4060877
5A	Cable terminal	4063376
5B	Rubber protection	4111308
5C	Lock ring	4588349
6	Connector housing	4060885
6A	Cable terminal	4061586
6B	Seal	4352936
7	Connector housing	9125519
7A	Cable terminal	12789796 (replaces 9120668)
7B	Rubber protection	8587511
8	Connector housing	4068441
9	Connector housing	9566266
9B	Protection	30520533 (replaces 9120106)
10	Connector housing	4109310
11	Connector housing	9565045
11A	Cable terminal	12790467 (replaces 4063970)
12	Connector housing	4061446
12B	Protection	4067492
