Saab 9000 1995-1995 Connector housing etc

Group 3b Electrical, connector, section 450

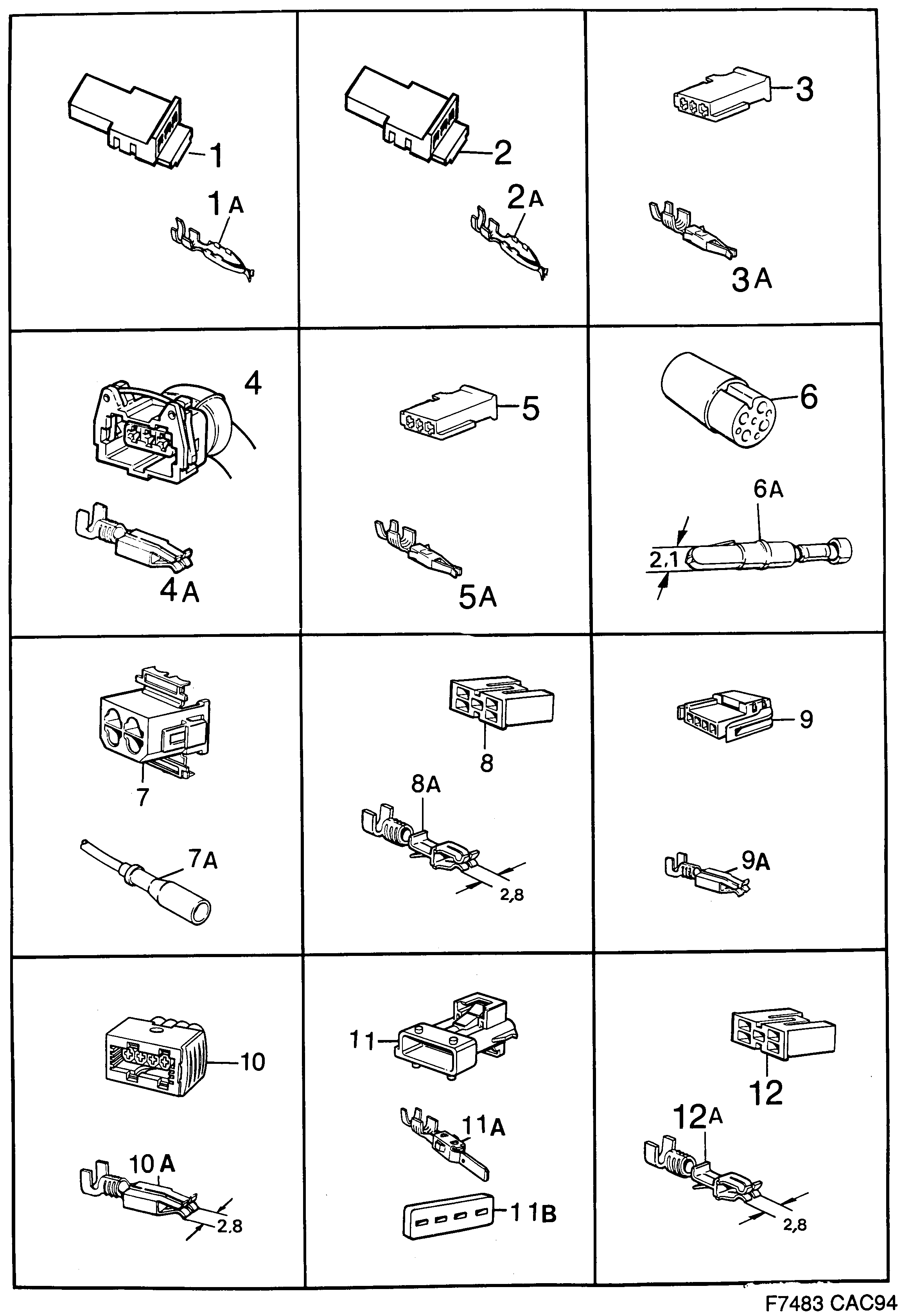

Saab 9000 Connector housing etc diagram

Pos	Article	Part No.
1	Connector housing	4109195
1A	Cable terminal	12790467 (replaces 4063970)
2	Connector housing	12790245 (replaces 4109187)
3	Connector housing	12789410 (replaces 4113007)
3A	Cable terminal	12790414 (replaces 4115499)
4	Connector housing	4489647
4A	Cable terminal	4061586
5	Connector housing	4517702
5A	Cable terminal	4466801
6	Connector housing	8530099
6A	Cable terminal	8522583
7	Connector housing	9503434
7A	Connector	8547796
7A	Connection	7874498
8	Connector housing	9123555
8A	Cable terminal	12789796 (replaces 9508714)
9	Connector housing	12790244 (replaces 4060869)
10	Connector housing	12788993 (replaces 4113601)
10A	Cable terminal	4350526
11	Connector housing	12788998 (replaces 4113650)
11A	Cable terminal	12789934 (replaces 4115192)
11B	Seal	12789004 (replaces 4113759)
12	Connector housing	4061503
12A	Cable terminal	12789796 (replaces 9120957)
