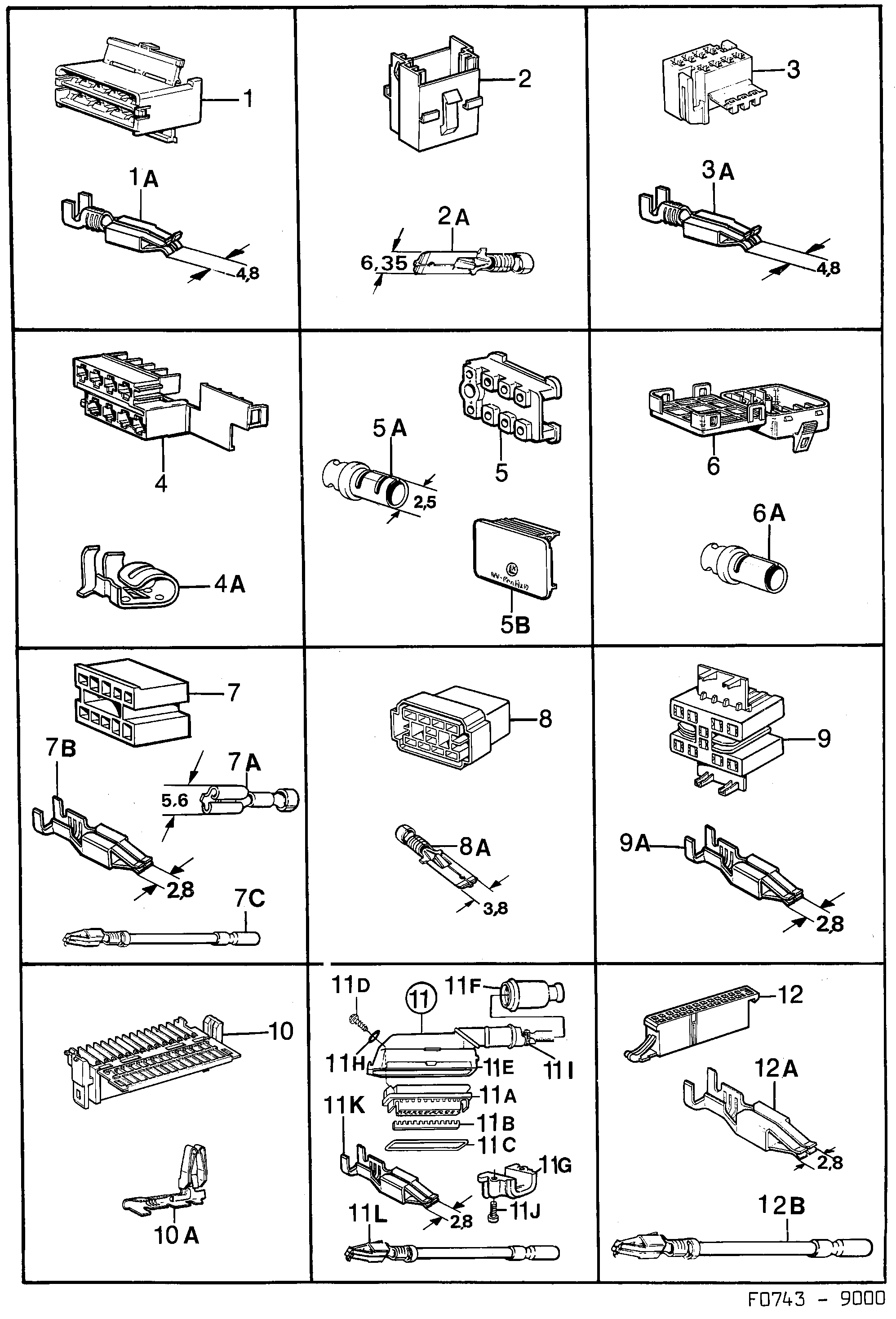

Group 3b Electrical, connector, section 370
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 8533655 |
| 1A | Cable terminal | 30520555 (replaces 9120775) |
| 2 | Connector housing | 9124181 |
| 2A | Cable terminal | 7155062 |
| 2A | Cable terminal | 8516957 |
| 3 | Connector housing | 9124090 |
| 3A | Cable terminal | 30520556 (replaces 9120783) |
| 3A | Cable terminal | 30520557 (replaces 9120791) |
| 4 | Connector housing | 9503525 |
| 4A | Cable terminal | 8582090 |
| 5 | Connector housing | 9552159 |
| 5A | Cable terminal | 9552175 |
| 5B | Cover | 9552167 |
| 6 | Connector housing | 30526066 (replaces 9512930) |
| 6A | Cable terminal | 9509746 |
| 7 | Connector housing | 8544371 |
| 7A | Cable terminal | 8544389 |
| 7B | Cable terminal | 8521593 |
| 7C | Cable terminal | 8522617 |
| 8 | Connector housing | 9122557 |
| 8A | Cable terminal | 9552100 |
| 9 | Connector housing | 12764801 (replaces 9123399) |
| 9A | Cable terminal | 12789796 (replaces 9120668) |
| 9A | Cable terminal | 12789796 (replaces 9508748) |
| 10 | Connector housing | 30525826 (replaces 9503020) |
| 10A | Cable terminal | 9505397 |
| 11 | Connector housing | 8579930 |
| 11A | Connector housing | 8587420 |
| 11B | Striker plate | 8587438 |
| 11C | Seal | 8587453 |
| 11D | Screw | 8587487 |
| 11E | Cover | 8587412 |
| 11F | Bushing | 8587446 |
| 11G | Bracket | 8587495 |
| 11H | Seal | 8587461 |
| 11I | Tie strap | 7971872 |
| 11J | Screw | 7971351 |
| 12 | Connector housing | 9506650 |
