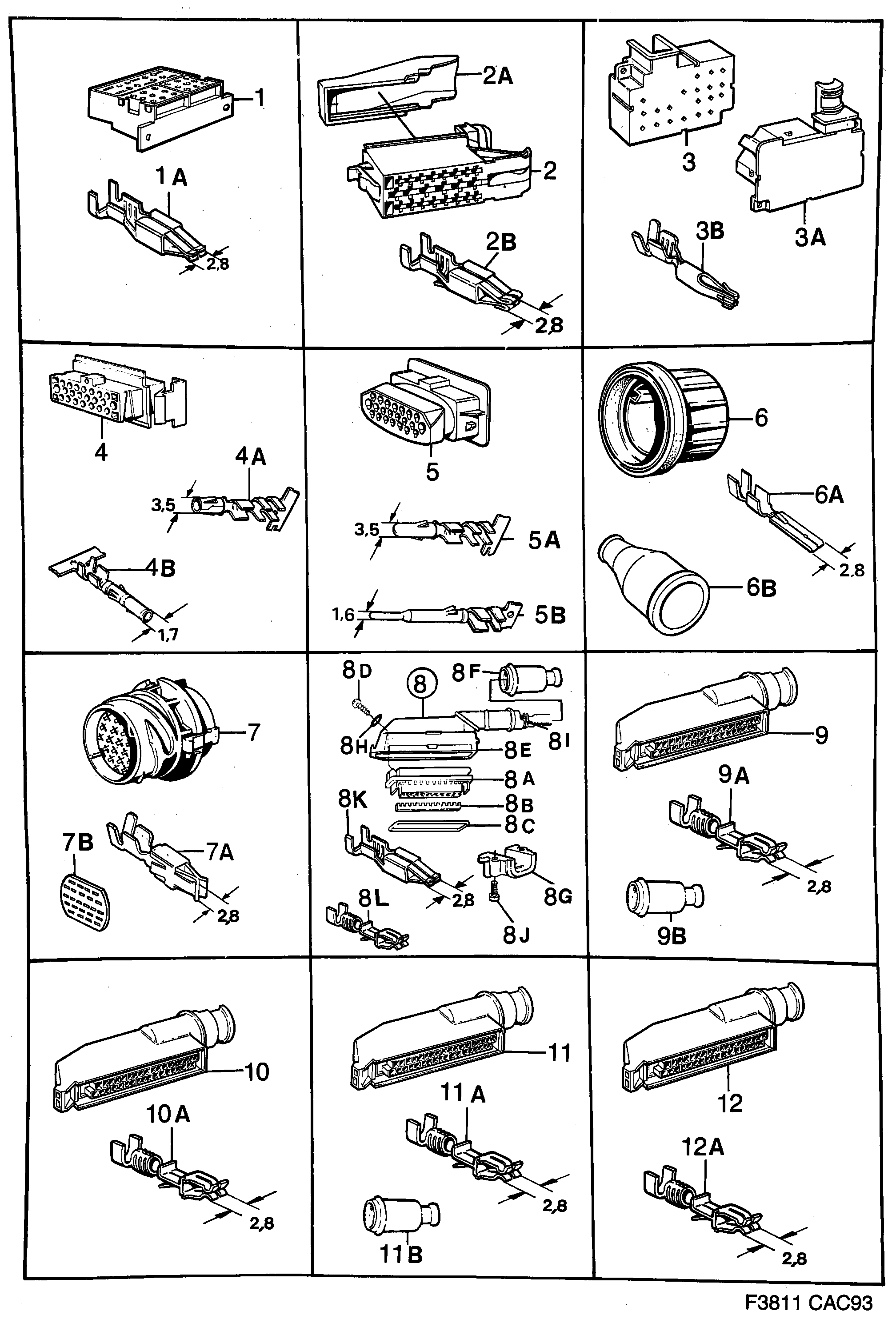

Group 3b Electrical, connector, section 290
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 9125543 |
| 1A | Cable terminal | 30520557 (replaces 9120791) |
| 2 | Connector housing | 4060893 |
| 2A | Cover | 4067617 |
| 2B | Cable terminal | 12789796 (replaces 9120957) |
| 3 | Connector housing | 9527755 |
| 3A | Connector housing | 9527763 |
| 3B | Cable terminal | 9527771 |
| 4 | Connector housing | 9525106 |
| 4A | Cable terminal | 8582595 |
| 4B | Cable terminal | 8587552 |
| 5 | Connector housing | 9525114 |
| 5A | Cable terminal | 8582603 |
| 5B | Cable terminal | 8593964 |
| 6 | Connector housing | 4060877 |
| 6A | Cable terminal | 4063376 |
| 6B | Rubber protection | 4111308 |
| 6C | Lock ring | 4588349 |
| 7 | Connector housing | 4060885 |
| 7A | Cable terminal | 4061586 |
| 7B | Seal | 4352936 |
| 8 | Connector housing | 8579930 |
| 8A | Connector housing | 8587420 |
| 8B | Striker plate | 8587438 |
| 8C | Seal | 8587453 |
| 8D | Screw | 8587487 |
| 8E | Cover | 8587412 |
| 8F | Bushing | 8587446 |
| 8G | Bracket | 8587495 |
| 8H | Seal | 8587461 |
| 8I | Tie strap | 8558256 |
| 8J | Screw | 7971351 |
| 8K | Cable terminal | 8521593 |
| 8L | Cable terminal | 12789796 (replaces 9120668) |
| 9 | Connector housing | 9125519 |
| 9B | Rubber protection | 8587511 |
| 10 | Connector housing | 4068441 |
| 11 | Connector housing | 9566266 |
| 11B | Protection | 30520533 (replaces 9120106) |
| 12 | Connector housing | 4068888 |
