Saab 9000 1994-1994 Connector housing etc

Group 3b Electrical, connector, section 180

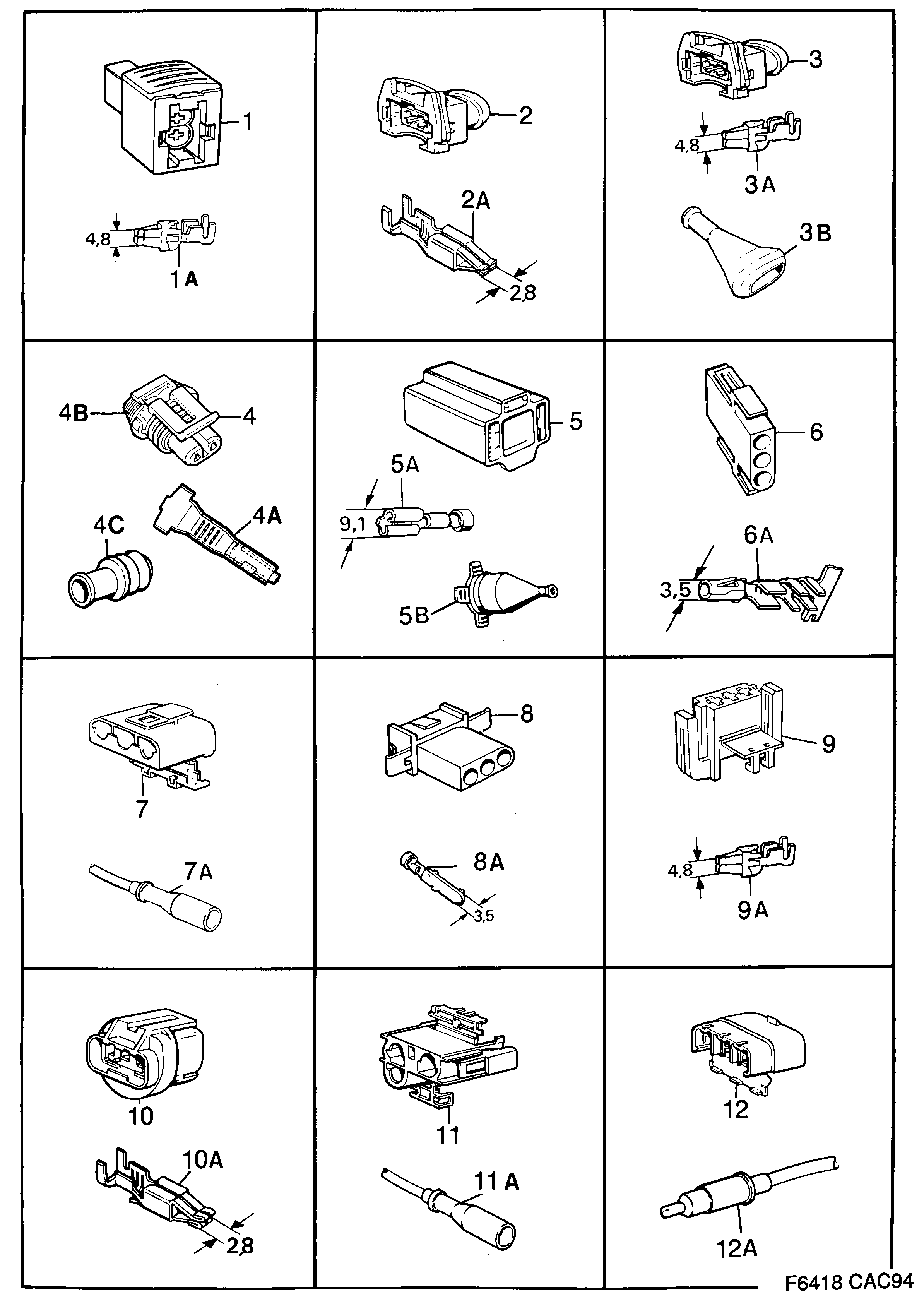

Saab 9000 Connector housing etc diagram

Pos	Article	Part No.
1	Connector housing	12788982 (replaces 4113411)
1A	Cable terminal	12970428 (replaces 4354171)
2	Connector housing	12790247 (replaces 4178414)
2A	Cable terminal	4061586
3	Connector housing	9519422
3A	Cable terminal	30520557 (replaces 9120791)
3B	Protection	8579955
4	Connector housing	12790252 (replaces 4201224)
4A	Cable terminal	4418505
4B	Locking	12789184 (replaces 4201232)
4C	Seal	4419305
4C	Seal	4419313
5	Connector housing	7155021
5A	Cable terminal	8582413
5B	Cable protection	8552721
6	Connector housing	8564916
6A	Cable terminal	8582595
7	Connector housing	9503277
7A	Connector	8547796
8	Connector housing	8564924
8A	Cable terminal	8582603
8A	Cable terminal	8544322
9	Connector housing	9124165
10	Connector housing	9514803
10A	Cable terminal	12789796 (replaces 9120668)
11	Connector housing	9519679
11A	Connection	7874498
12	Connector housing	9503327
12A	Connector	8547770
