Saab 9000 1997-1998 Connector housing etc

Group 3b Electrical, connector, section 1140

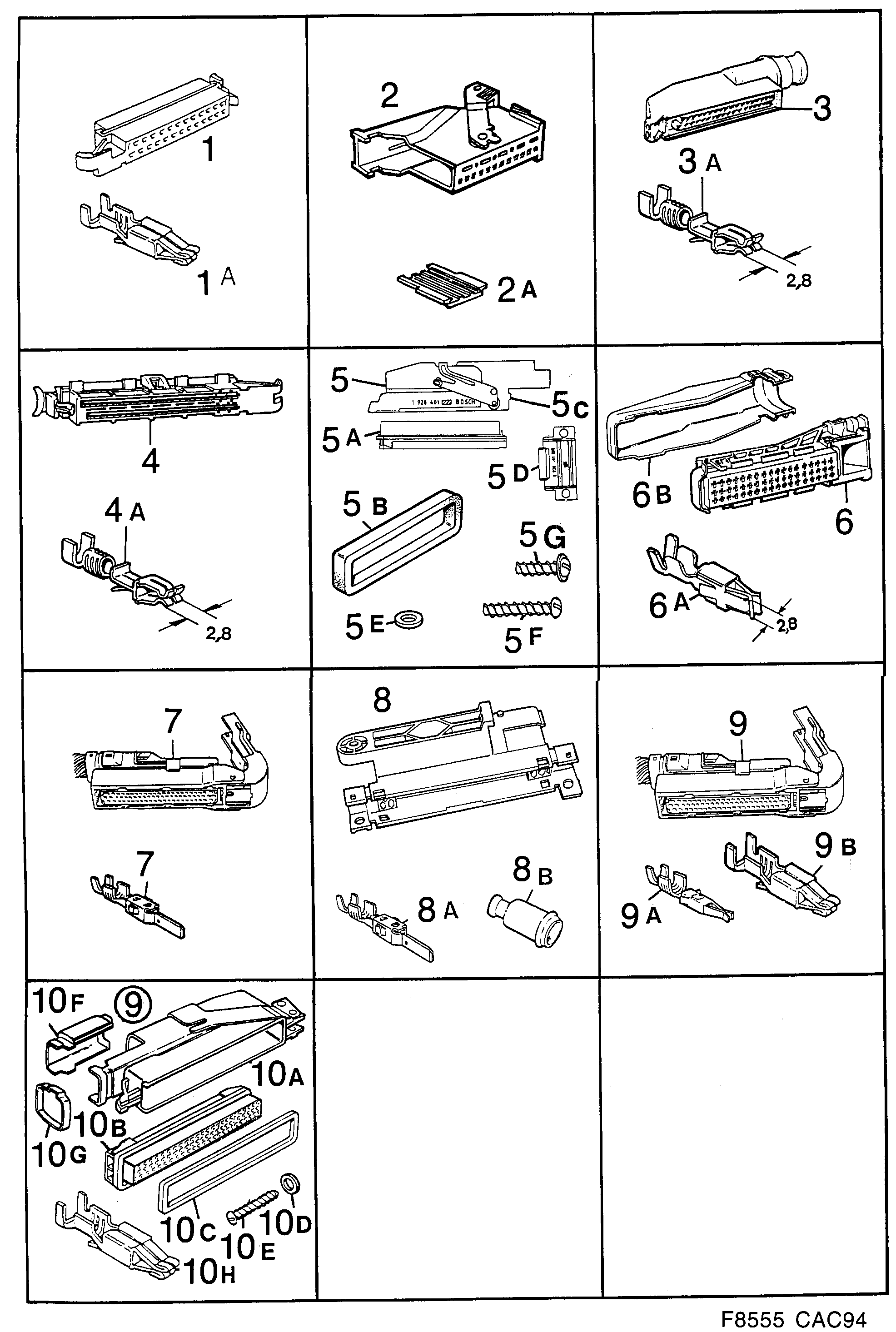

Saab 9000 Connector housing etc diagram

Pos	Article	Part No.
1	Connector housing	4537429
1A	Cable terminal	12789796 (replaces 9120957)
2	Cover	4734455
2A	Locking	12799084 (replaces 4734471)
3	Connector housing	4434031
4	Connector housing	9565045
4A	Cable terminal	12790467 (replaces 4063970)
5	Connector housing	4517629
5A	Connector housing	4224630
5B	Seal	4224655
5C	Cover	4517637
5D	Seal	4517652
5E	Seal	8587461
5F	Screw	4223483
5G	Screw	4223574
6	Connector housing	4353637
6A	Cable terminal	4061586
6B	Cover	4418380
7	Connector housing	4176616
7A	Cable terminal	4354353
8	Connector housing	4354692
8	Cable terminal	4535530
8A	Cable terminal	4538625
8A	Cable terminal	12789934 (replaces 4115192)
8B	Seal	12798375 (replaces 4354239)
9	Connector housing	4176624
10	Connector housing	4222451
10A	Cover	4223558
10B	Connector housing	4223541
10C	Seal	4223566
10F	Cable attachment	4223582
10G	Tie strap	4223590
