Saab 9000 1997-1998 Connector housing etc

Group 3b Electrical, connector, section 1110

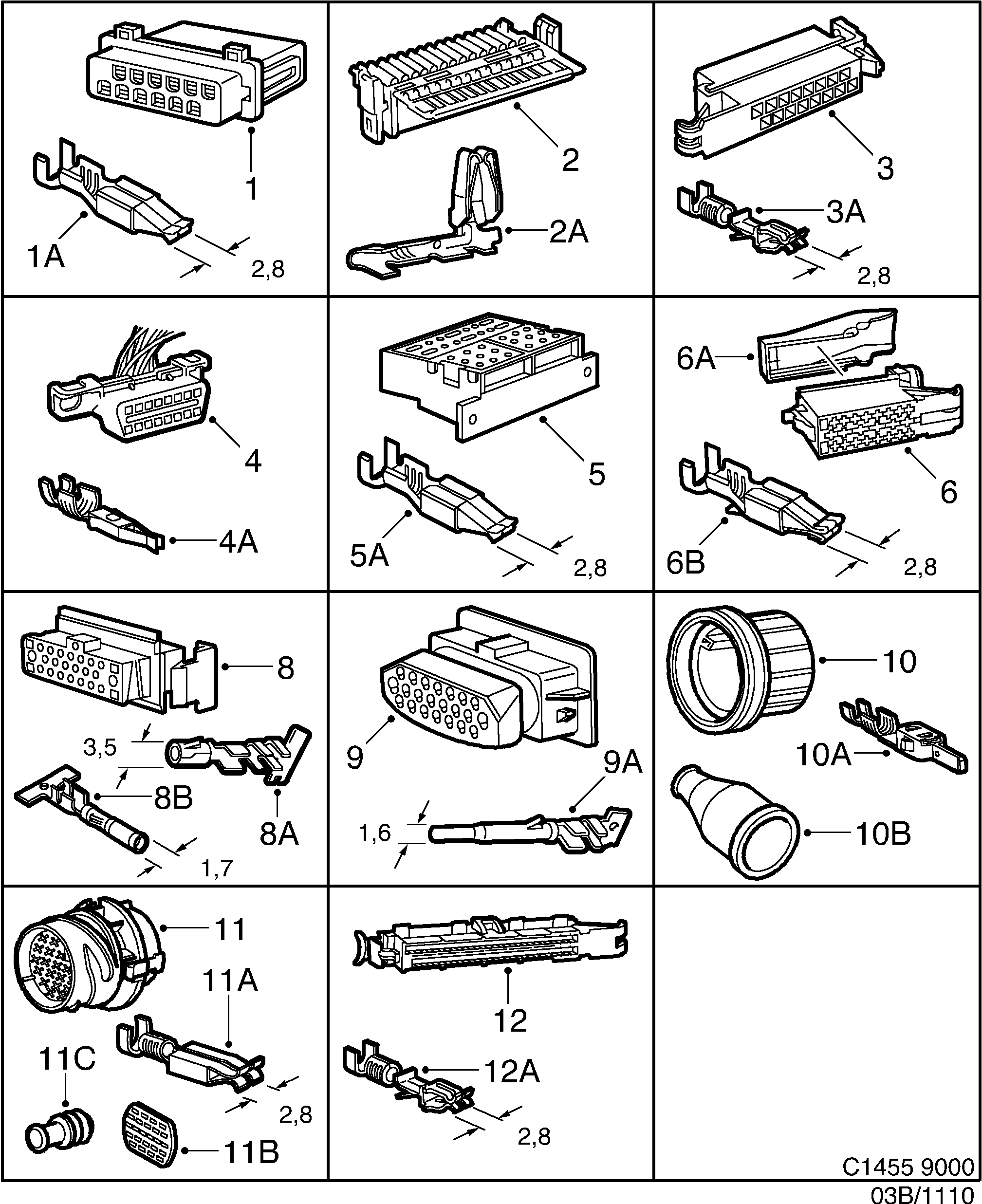

Saab 9000 Connector housing etc diagram

Pos	Article	Part No.
1	Connector housing	9525031
1A	Cable terminal	12789796 (replaces 9120957)
2	Connector housing	30525826 (replaces 9503020)
2A	Cable terminal	9505397
3	Connector housing	9566282
3A	Cable terminal	12789796 (replaces 9120668)
4	Connector housing	4807954
4A	Cable terminal	12790414 (replaces 4115499)
5	Connector housing	9125543
5A	Cable terminal	30520557 (replaces 9120791)
6	Connector housing	4060893
6A	Cover	4067617
8	Connector housing	9525106
8A	Cable terminal	8582595
8B	Cable terminal	8587552
9	Connector housing	9525114
9A	Cable terminal	8593964
10	Connector housing	4174868
10A	Cable terminal	12789934 (replaces 4115192)
10B	Rubber protection	4111308
10C	Lock ring	4588349
11	Connector housing	4176244
11A	Cable terminal	4061586
11B	Seal	4352936
11C	Seal	12798370 (replaces 4061958)
11C	Seal	4061966
11C	Seal	12798372 (replaces 4061974)
12	Connector housing	4176186
