Saab 9000 1997-1998 Connector housing etc

Group 3b Electrical, connector, section 1080

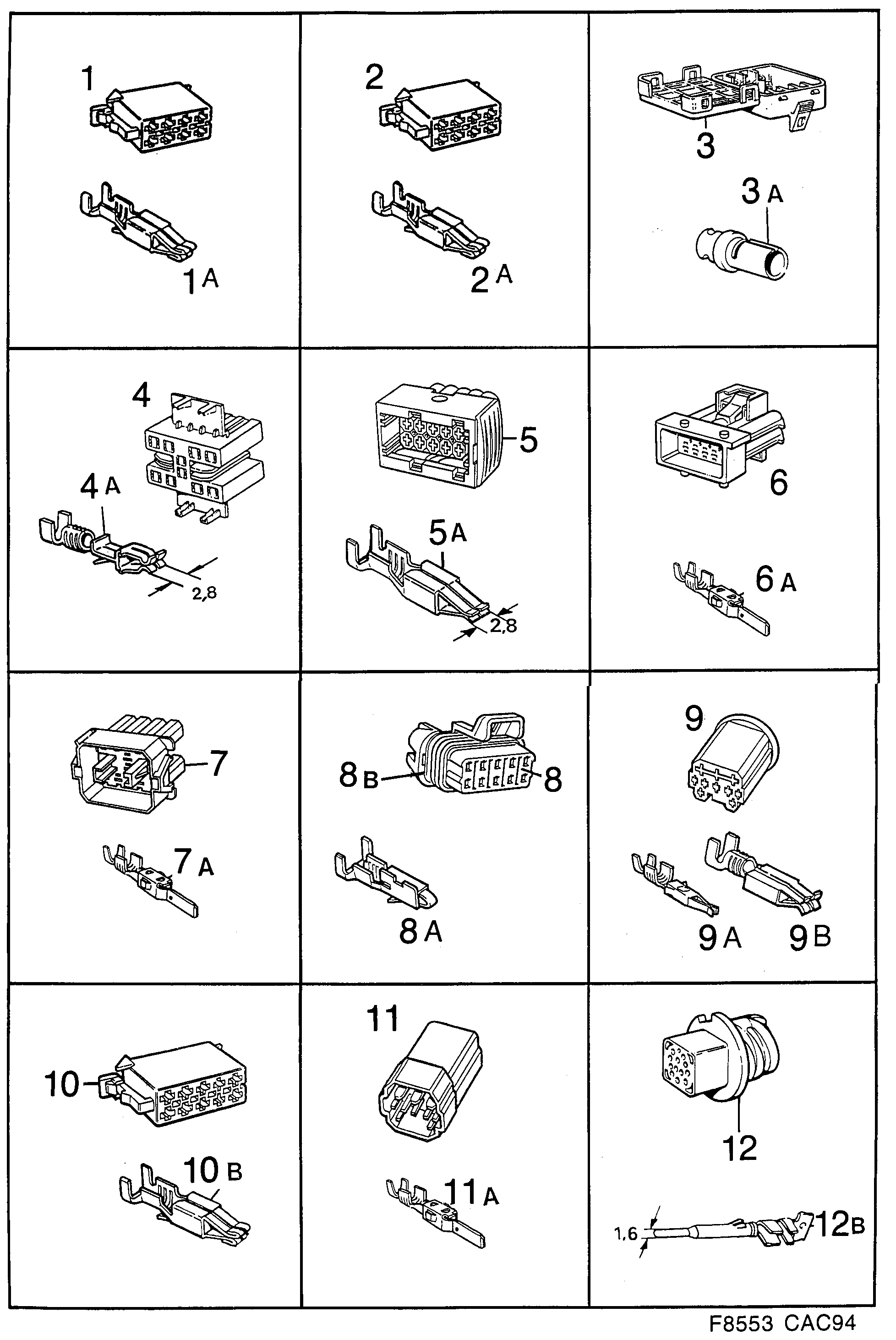

Saab 9000 Connector housing etc diagram

Pos	Article	Part No.
1	Connector housing	12802178 (replaces 4203626)
1A	Cable terminal	12789796 (replaces 9120957)
2	Connector housing	4203618
3	Connector housing	30526066 (replaces 9512930)
3A	Cable terminal	9509746
4	Connector housing	12764801 (replaces 9123399)
4A	Cable terminal	12789796 (replaces 9120668)
5	Connector housing	12788954 (replaces 4114005)
5A	Cable terminal	4061586
6	Connector housing	12788959 (replaces 4114054)
6A	Cable terminal	12789934 (replaces 4115192)
7	Connector housing	4117461
7A	Cable terminal	12789934 (replaces 4115077)
7A	Cable terminal	12789932 (replaces 4115085)
8	Connector housing	4203568
8A	Cable terminal	4418505
8B	Locking	4203576
9	Connector housing	12756334 (replaces 4411518)
9A	Cable terminal	12790414 (replaces 4115499)
10	Connector housing	4203634
11	Connector housing	4410510
12	Connector housing	9529512
12A	Cable terminal	9526401
12	Connector housing	9525031
