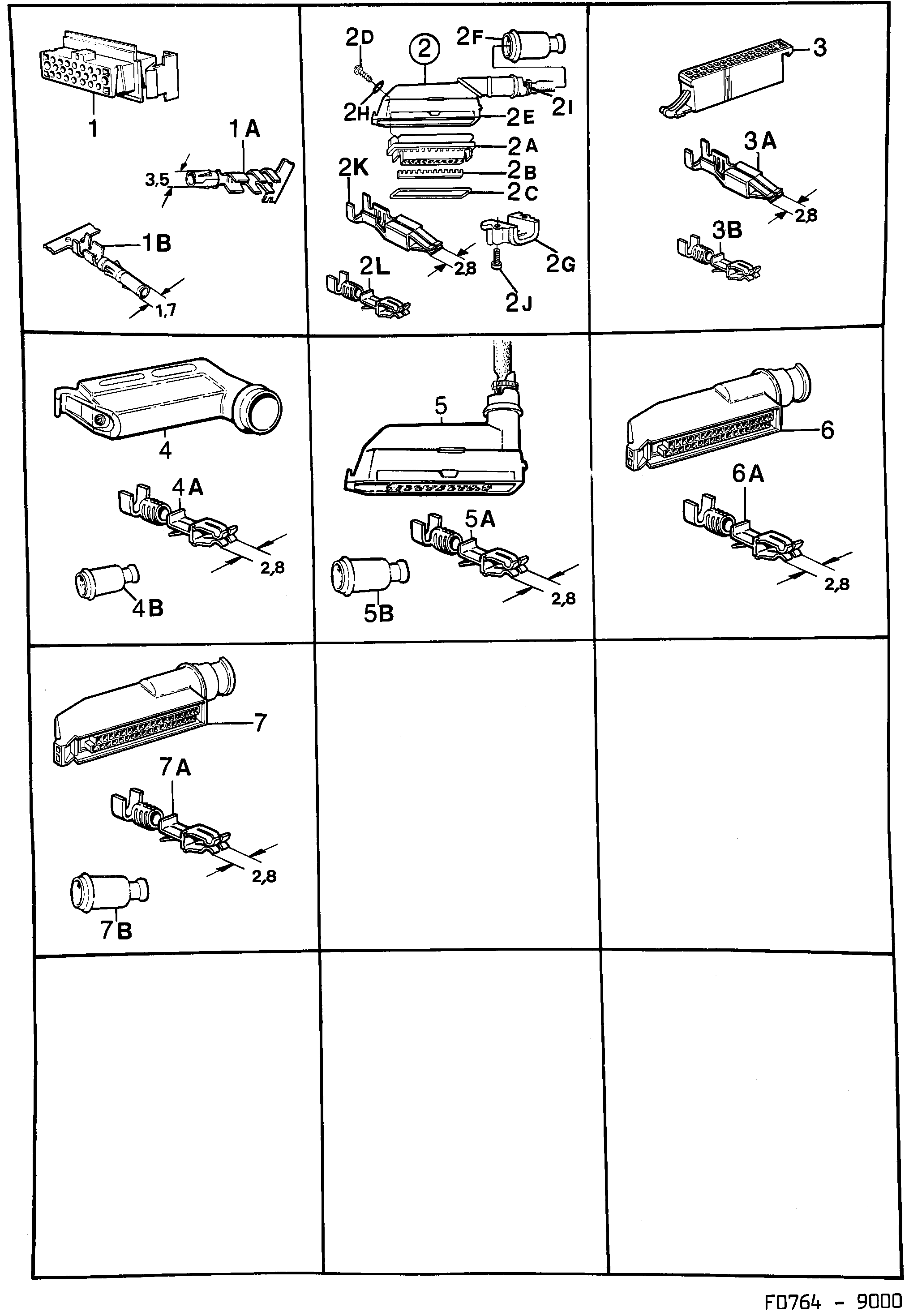

Group 3b Electrical, connector, section 1000
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 9525106 |
| 1A | Cable terminal | 8582595 (replaces 8544298) |
| 1B | Cable terminal | 8587552 |
| 2 | Connector housing | 8579930 |
| 2A | Connector housing | 8587420 |
| 2B | Striker plate | 8587438 |
| 2C | Seal | 8587453 |
| 2D | Screw | 8587487 |
| 2E | Cover | 8587412 |
| 2F | Bushing | 8587446 |
| 2G | Bracket | 8587495 |
| 2H | Seal | 8587461 |
| 2I | Tie strap | 7971872 |
| 2J | Screw | 7971351 |
| 2K | Cable terminal | 8521593 |
| 2L | Cable terminal | 12789796 (replaces 9120668) |
| 3 | Connector housing | 9506650 |
| 4 | Connector housing | 9564089 |
| 4B | Rubber protection | 8587511 |
| 5 | Connector housing | 9529496 |
| 6 | Connector housing | 9125519 |
| 7 | Connector housing | 9566266 |
| 7B | Protection | 30520533 (replaces 9120106) |
