Saab 9000 1990-1993 Windshield wiper

Group 3a Electrical, general, section 980

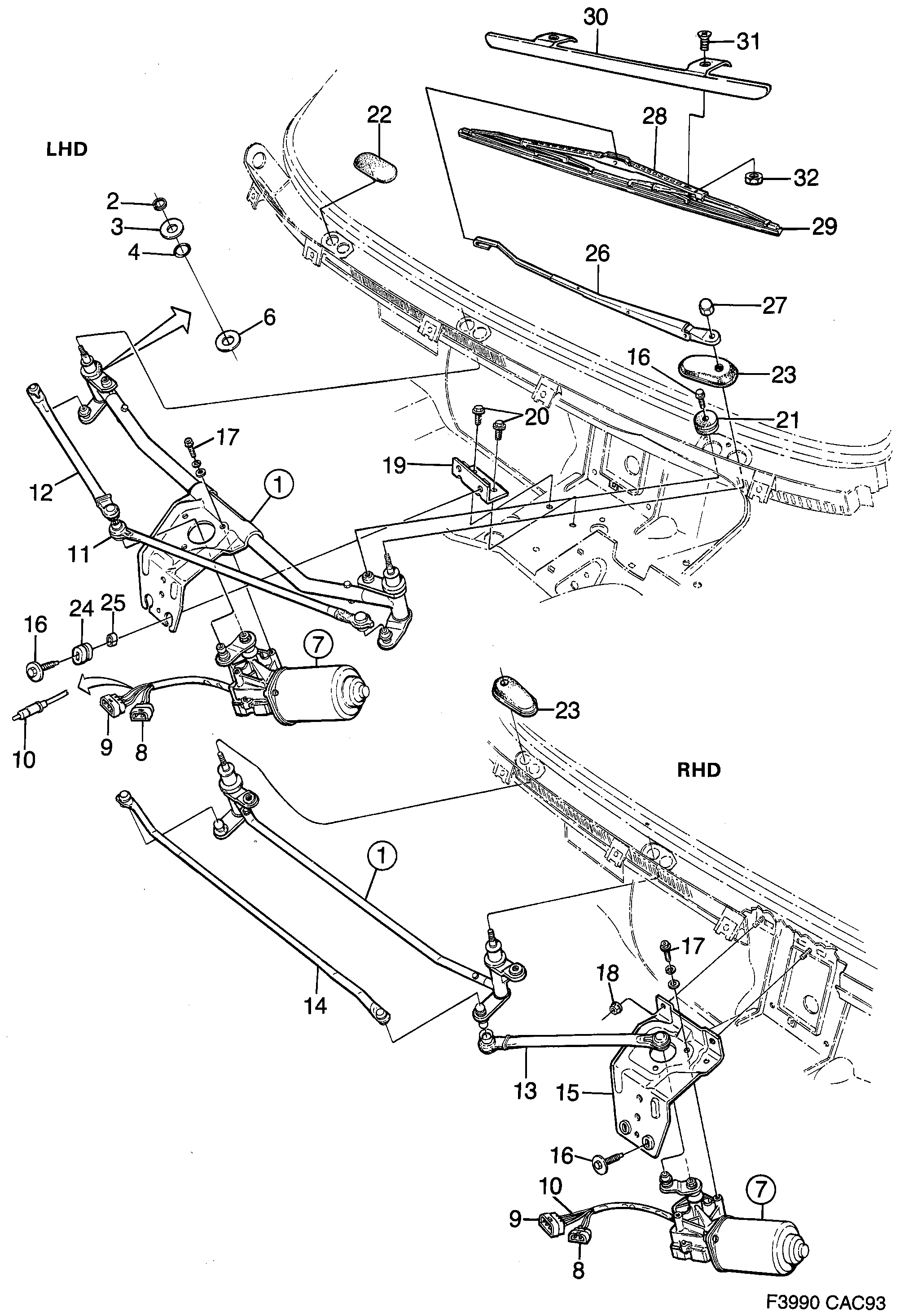

Saab 9000 Windshield wiper diagram

Pos	Article	Part No.
1	Spindle frame	9123688
1	Spindle frame	4060497
2	Snap ring	9123837
3	Washer	9123845
4	O-ring	9123852
6	Washer	9123894
7	Electrical motor	9123662
7	Electrical motor	4060489
8	Connector housing	9501685
9	Connector housing	9503327
10	Connector	8547770
11	Crank arm	9123696
12	Crank arm	9123704
13	Crank arm	4060513
14	Crank arm	4060505
15	Bracket	4063574
16	Hexagon screw	7399900
17	Screw	4063814
18	Nut	11900451 (replaces 7977929)
19	Bracket	9124751
20	Screw	7969223
21	Rubber bushing	9123589
22	Plug	9123639
23	Cover	9123597
23	Cover	9123605
23	Cover	9123613
24	Bushing	9123753
25	Sleeve	9123761
26	Wiper arm	9123977
26	Wiper arm	4095626
26	Wiper arm	9123985
26	Wiper arm	4095634
26	Wiper arm	4063806
26	Wiper arm	4095659
26	Wiper arm	4063798
26	Wiper arm	4095642
27	Cap nut	9565912
28	Wiper blade	9529488
28	Wiper blade	93195936 (replaces 4381844)
28	Wiper blade	5582556 (replaces 9523754)
28	Wiper blade	5582556 (replaces 4381851)
28	Wiper blade	4448049
28	Wiper blade	4448056
30	Spoiler	4092748
30	Spoiler	4093035
31	Screw	4092755
32	Nut	4092763
