Saab 9000 1985-1989 Switch

Group 3a Electrical, general, section 970

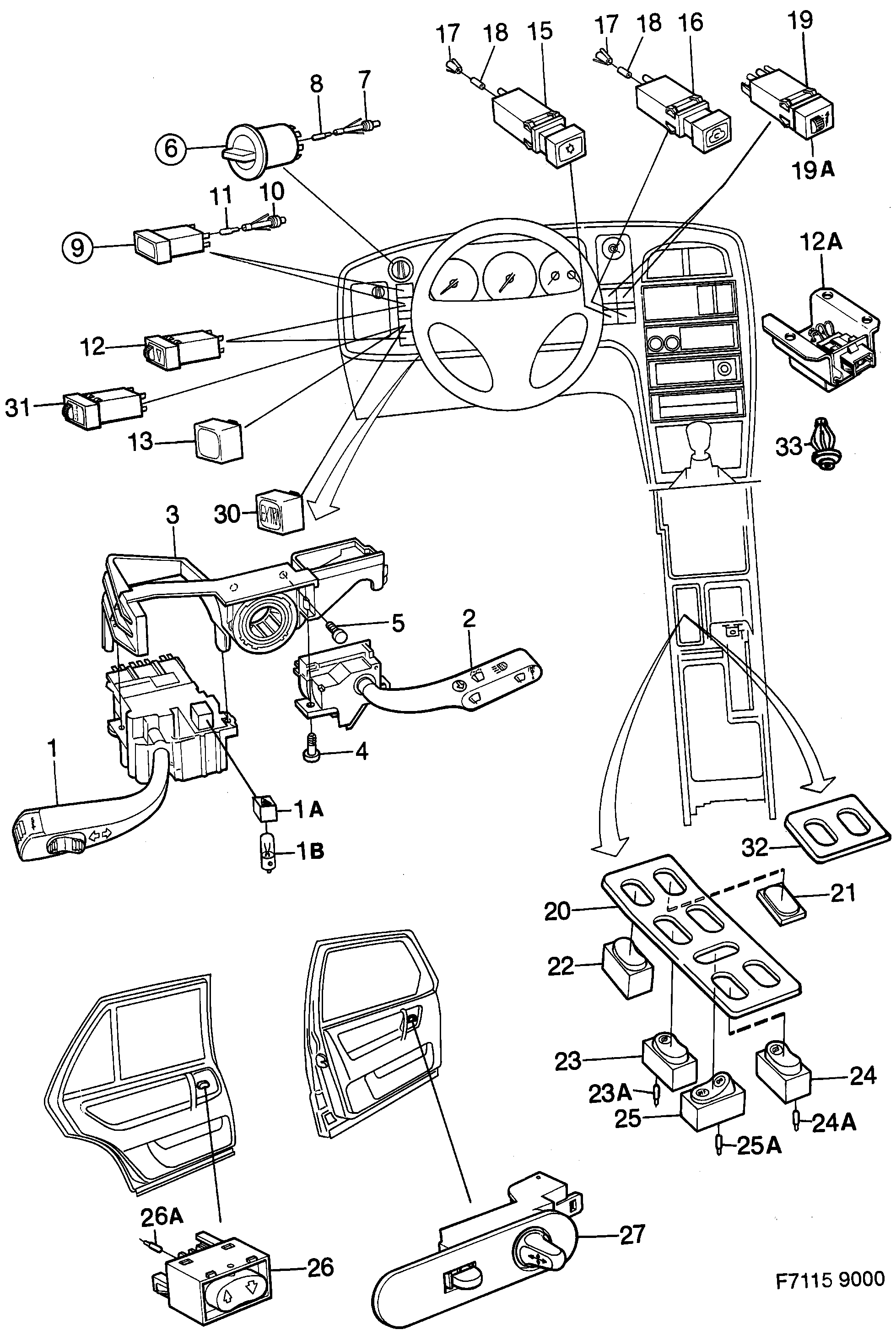

Saab 9000 Switch diagram

Pos	Article	Part No.
1	Switch	9517533
1	Switch	9518242
1	Switch	9526054
1	Switch	9517517
1	Switch	9518218
1	Switch	9526039
1A	Button	9518309
1B	Bulb	9518291
2	Switch	9500299
2	Switch	4692752 (replaces 9518226)
2	Switch	9523812
3	Retainer	9500513
3	Bracket	9123464
4	Screw	7982333 (replaces 9505645)
4	Screw	7982333
5	Screw	8059396
6	Switch	8590838
7	Bracket	8553356
8	Bulb	93190474 (replaces 8500613)
9	Switch	8566762
9	Switch	9523747 (replaces 9512666)
9	Switch	9523747
9	Switch	9523762
10	Bracket	8553315
12	Rheostat	9505751
12	Rheostat	9517806
12A	Rheostat	9522079
13	Button	9568122 (replaces 8542912)
13	Button	9568122
15	Switch	9508078
16	Switch	9508086
15	Switch	9523788 (replaces 9512682)
15	Switch	9523788
16	Switch	30526057 (replaces 9512690)
19	Switch	5106190 (replaces 9518820)
19A	Switch button	4084554
20	Retainer	9506676
21	Cover washer	9501891
21	Cover washer	9125212
22	Switch	9507674
22	Switch	9526609
23	Switch	9501859
23	Switch	30526039 (replaces 9512310)
23A	Bulb	8548992
24	Switch	9501867
25	Switch	9501875
26	Switch	9503772
27	Switch	9505488
30	Switch	9523804
31	Switch	9527904
32	Retainer	9508003
33	Clip	9473869
