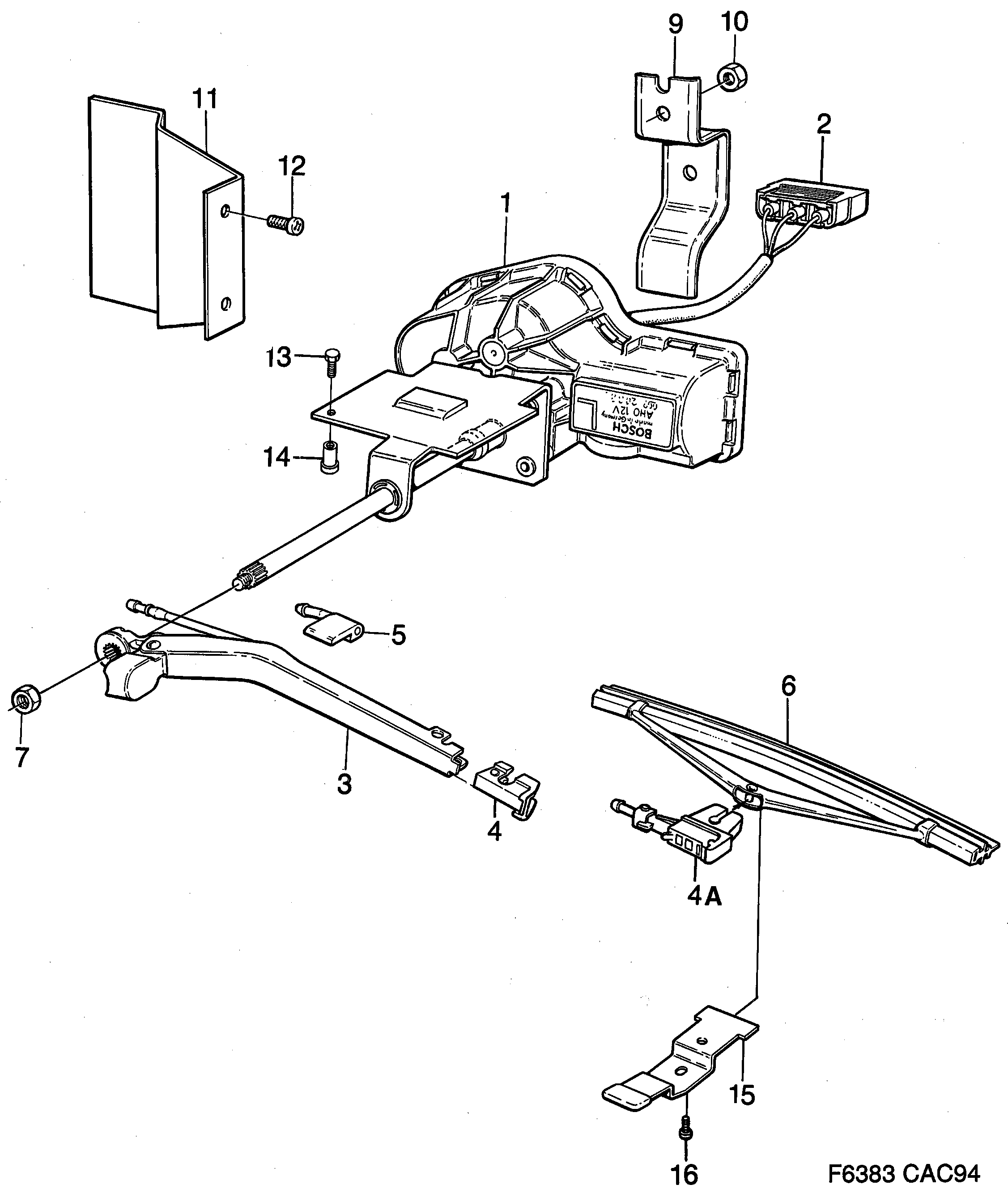

Group 3a Electrical, general, section 960
| Pos | Article | Part No. |
|---|---|---|
| 1 | Electrical motor | 4094942 |
| 1 | Electrical motor | 4094926 |
| 1 | Electrical motor | 9123233 |
| 1 | Electrical motor | 9123241 |
| 2 | Connector housing | 9503327 |
| 3 | Wiper arm | 4250197 |
| 3 | Wiper arm | 4250205 |
| 3 | Wiper arm | 4251476 |
| 3 | Wiper arm | 4251484 |
| 4 | Adapter | 9558149 |
| 4A | Adapter | 9123217 |
| 4A | Adapter | 9123225 |
| 5 | Nozzle | 9568999 |
| 5 | Nozzle | 9569005 |
| 6 | Wiper blade | 4095063 |
| 6 | Wiper blade | 30520558 (replaces 9120882) |
| 7 | Nut | 32026207 (replaces 7977911) |
| 9 | Bracket | 9501495 |
| 10 | Nut | 8151227 |
| 11 | Shield | 9124124 |
| 12 | Screw | 7922420 |
| 13 | Screw | 7965544 |
| 14 | Nut | 9223082 |
| 15 | Stop | 9524596 |
| 16 | Screw | 7922891 |
| Wiper blade kit | 8548042 | |
| Wiper blade kit | 8547408 |
