Saab 9000 1985-1989 Central lock

Group 3a Electrical, general, section 940

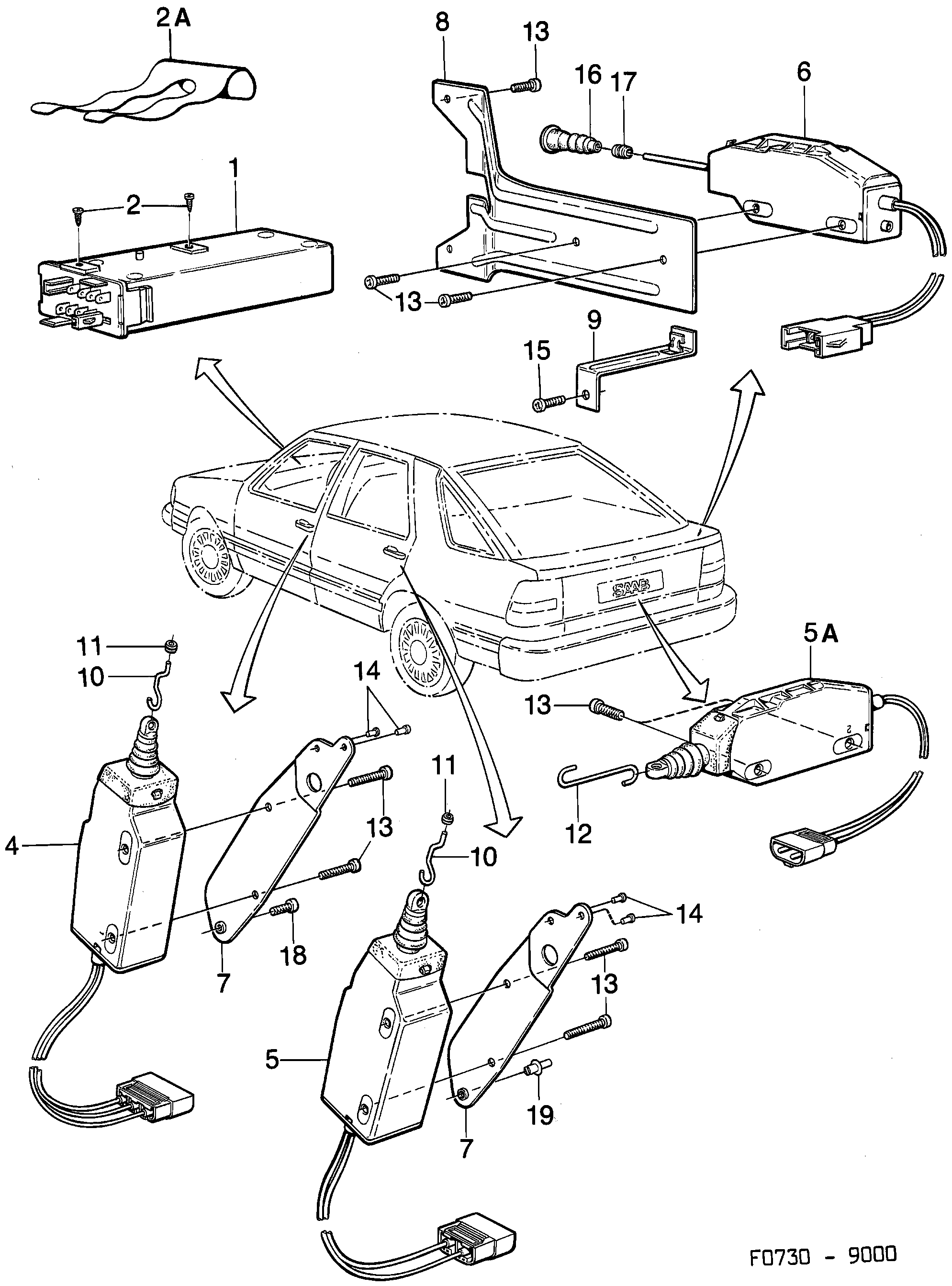

Saab 9000 Central lock diagram

Pos	Article	Part No.
1	Electronic unit	8547622
1	Electronic unit	9529975
2	Screw	7971344
2A	Clip	8565855
4	Control device	8591216
5	Electrical motor	8591224
5A	Electrical motor	4012639
6	Electrical motor	9503723
7	Bracket	30525830 (replaces 9503079)
7	Bracket	30525829 (replaces 9503061)
8	Bracket	9502691
9	Clamp	9124454 (replaces 9502725)
9	Clamp	9124454
10	Pull rod	9564881 (replaces 9503087)
10	Pull rod	9564881
11	Bushing	30525872 (replaces 9505058)
12	Pull rod	9502741
13	Screw	7971823
14	Rivet	30525968 (replaces 9508094)
15	Screw	7922420
16	Bellows	9502709
17	Bushing	9502717
18	Screw	7969223
19	Plastic rivet	9255845
