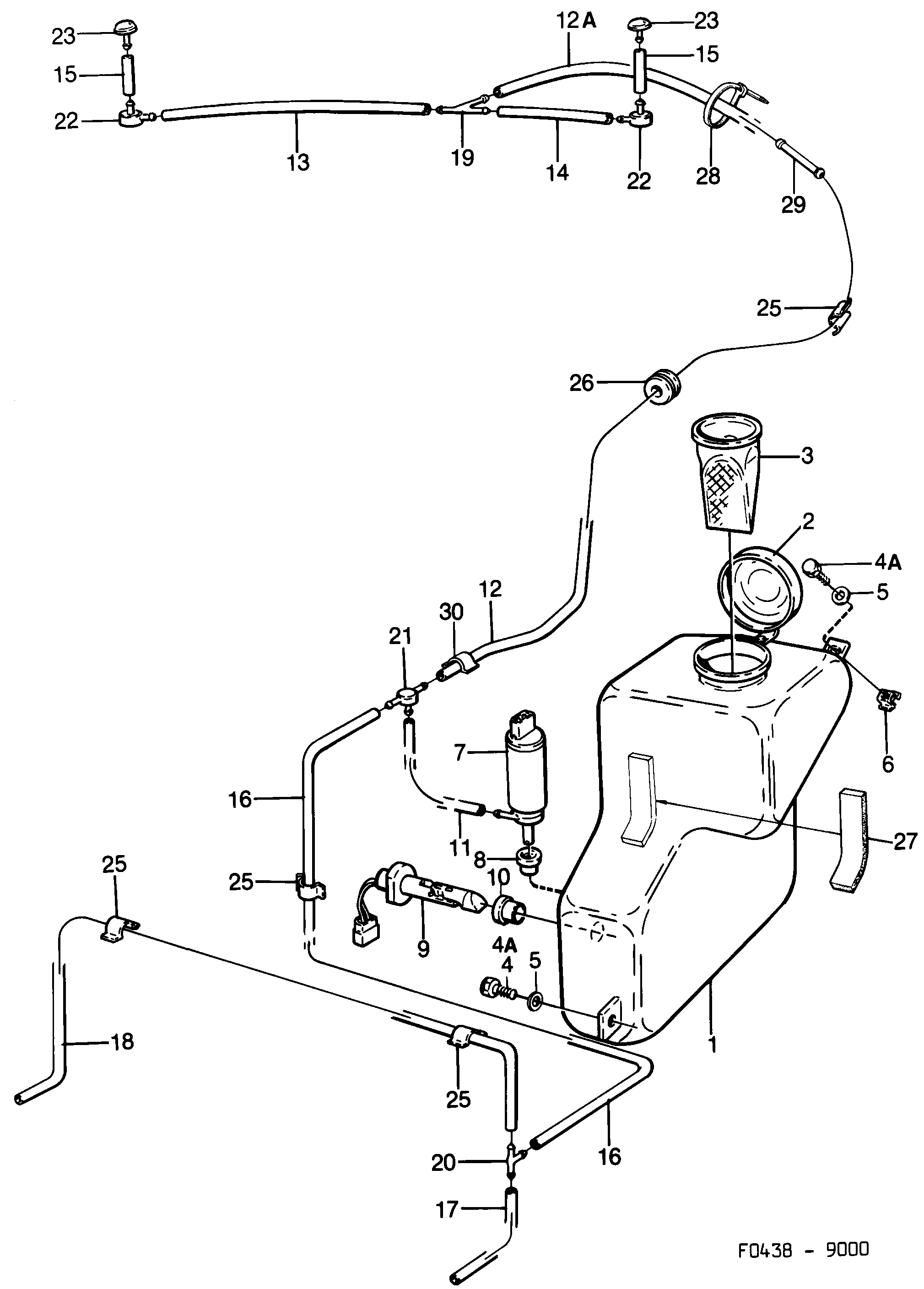

Group 3a Electrical, general, section 910
| Pos | Article | Part No. |
|---|---|---|
| 1 | Washer fluid reservoir | 9500471 |
| 1 | Washer fluid reservoir | 9524992 |
| 2 | Cover | 8518557 |
| 3 | Filter | 9566332 |
| 4 | Screw | 92153150 (replaces 7976947) |
| 4A | Screw | 8019911 |
| 5 | Washer | 7311772 |
| 5 | Washer | 7987506 (replaces 7975469) |
| 6 | Nut | 7975006 |
| 7 | Washer pump | 30525922 (replaces 9506379) |
| 8 | Rubber bushing | 9528795 |
| 9 | Level sender | 9507633 |
| 10 | Bushing | 9507617 |
| 11 | Hose | 8552044 |
| 12 | Hose | 9506395 |
| 12 | Hose | 9524844 |
| 12A | Hose | 9526781 |
| 13 | Hose | 8533366 |
| 14 | Hose | 9506387 |
| 15 | Hose | 8573677 |
| 16 | Hose | 8533358 |
| 17 | Hose | 9506411 |
| 18 | Hose | 9506403 |
| 19 | Tube | 8509002 |
| 20 | T-pipe | 8544660 |
| 21 | Valve | 5142765 (replaces 9569013) |
| 22 | Valve | 5142757 (replaces 8573669) |
| 23 | Nozzle | 8504144 |
| 23 | Nozzle | 8504144 (replaces 8544728) |
| 25 | Clip | 7977176 |
| 26 | Bushing | 7961337 |
| 27 | Seal | 7535404 |
| 28 | Tie strap | 11900513 (replaces 7971880) |
| 29 | Junction pipe | 8508848 |
| 30 | Clip | 8513574 |
