Saab 9000 1990-1993 Stop light High mounted

Group 3a Electrical, general, section 890

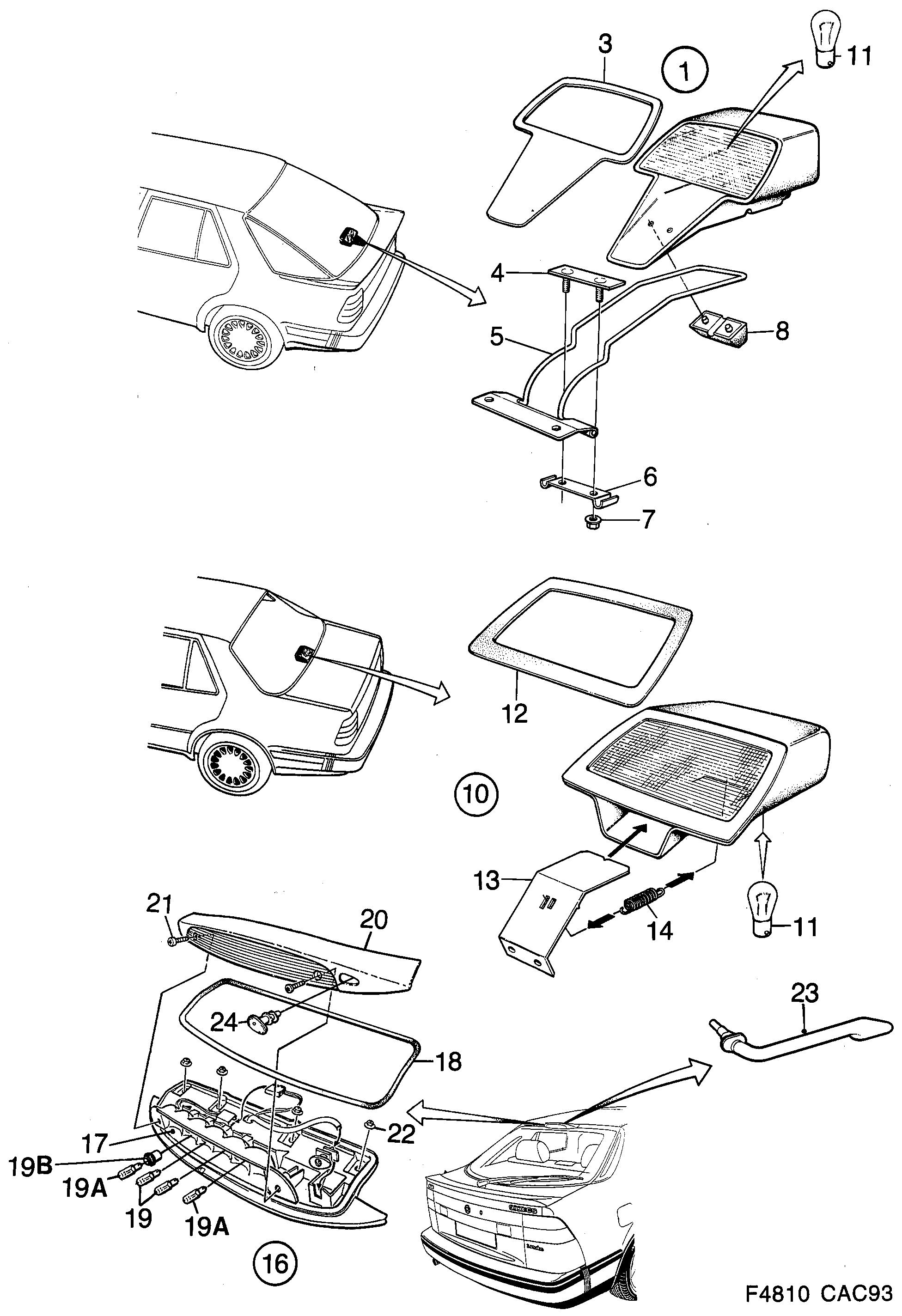

Saab 9000 Stop light High mounted diagram

Pos	Article	Part No.
1	Stop light	9567223
2	Bulb	8535692
3	Seal	9514233
4	Attaching plate	9514969
5	Tensioner	9518267
6	Clamping-piece	9514951
7	Nut	8151227
8	Gasket	9659301
10	Stop light	8598286
10	Stop light	4341194
12	Seal	9551953
13	Bracket	4090015
13	Bracket	4090007
14	Spring	9553512
16	Stop light	4014429
16	Stop light	4344834
17	Bulb socket	4014452
18	Sealing strip	4014478
19	Bulb	93190471 (replaces 9512880)
19	Bulb	93190472 (replaces 9505116)
19B	Bulb socket	4448999
20	Lens	4673273 (replaces 4320255)
20	Lens	4673281 (replaces 4014460)
21	Screw	7974025
22	Nut	7398423
