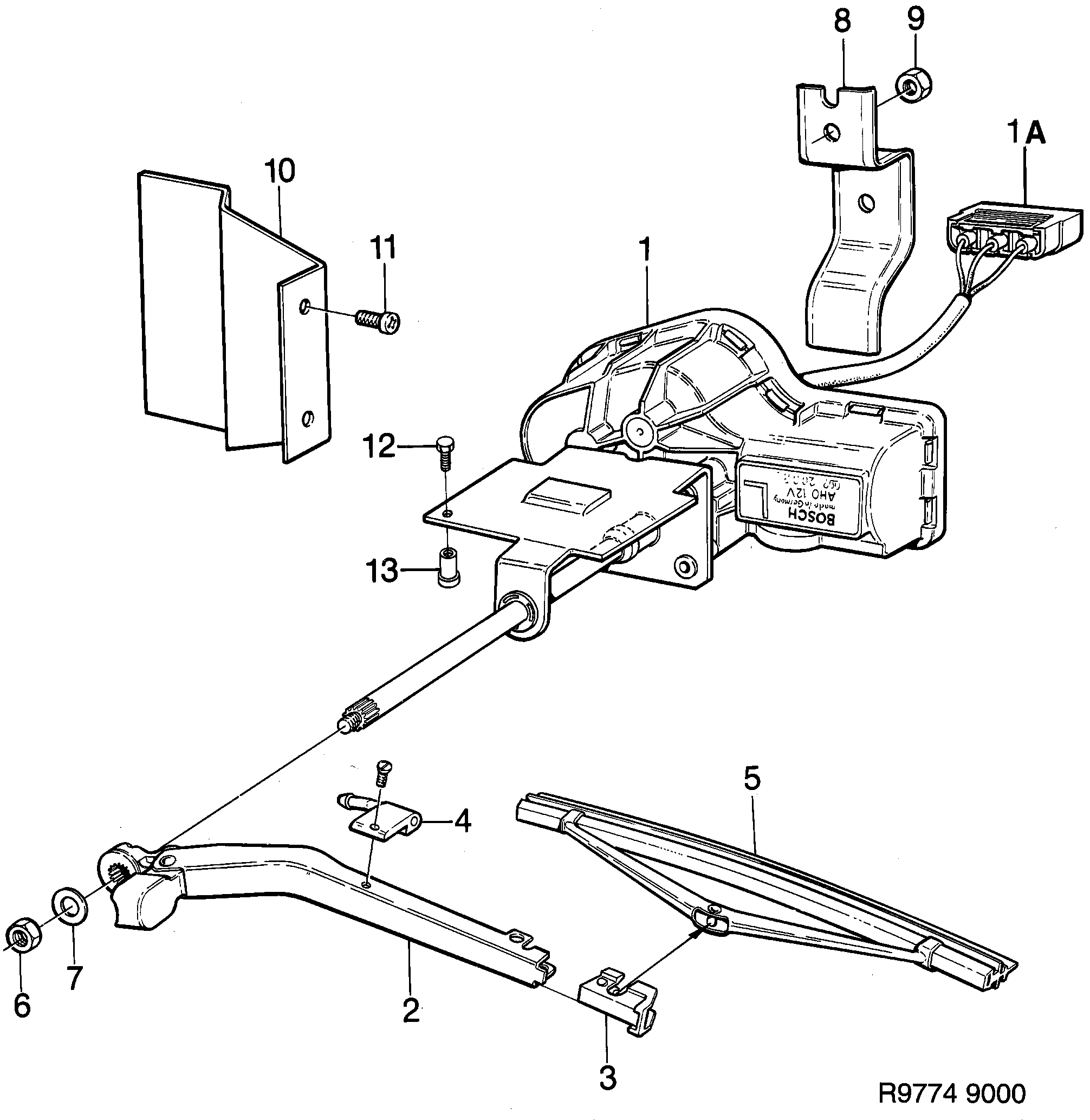

Group 3a Electrical, general, section 880
| Pos | Article | Part No. |
|---|---|---|
| 1 | Electrical motor | 9509688 |
| 1 | Electrical motor | 9509696 |
| 1 | Electrical motor | 9524232 |
| 1 | Electrical motor | 9524224 |
| 1A | Connector housing | 9503327 |
| 2 | Wiper arm | 9502584 |
| 2 | Wiper arm | 9502592 |
| 2 | Wiper arm | 9568973 |
| 2 | Wiper arm | 9568981 |
| 3 | Adapter | 30526007 (replaces 9509100) |
| 3 | Adapter | 9558149 |
| 4 | Nozzle | 30526008 (replaces 9509118) |
| 4 | Nozzle | 30526009 (replaces 9509126) |
| 4 | Nozzle | 9568999 |
| 4 | Nozzle | 9569005 |
| 5 | Wiper blade | 4095063 (replaces 9513268) |
| 5 | Wiper blade | 4095063 (replaces 9120890) |
| 5 | Wiper blade | 30520558 (replaces 9556309) |
| 5 | Wiper blade | 30520558 (replaces 9120882) |
| 6 | Nut | 8029548 |
| 6 | Nut | 8029548 (replaces 8151219) |
| 7 | Washer | 7972284 |
| 8 | Bracket | 9501495 |
| 9 | Nut | 8151227 (replaces 8029555) |
| 9 | Nut | 8151227 |
| 10 | Shield | 9501636 |
| 10 | Shield | 9124124 |
| 11 | Screw | 7922420 |
| 12 | Screw | 7965544 |
| 13 | Nut | 8278467 |
| 13 | Nut | 9223082 |
| Wiper blade kit | 8548042 (replaces 8547077) | |
| Wiper blade kit | 8547408 |
