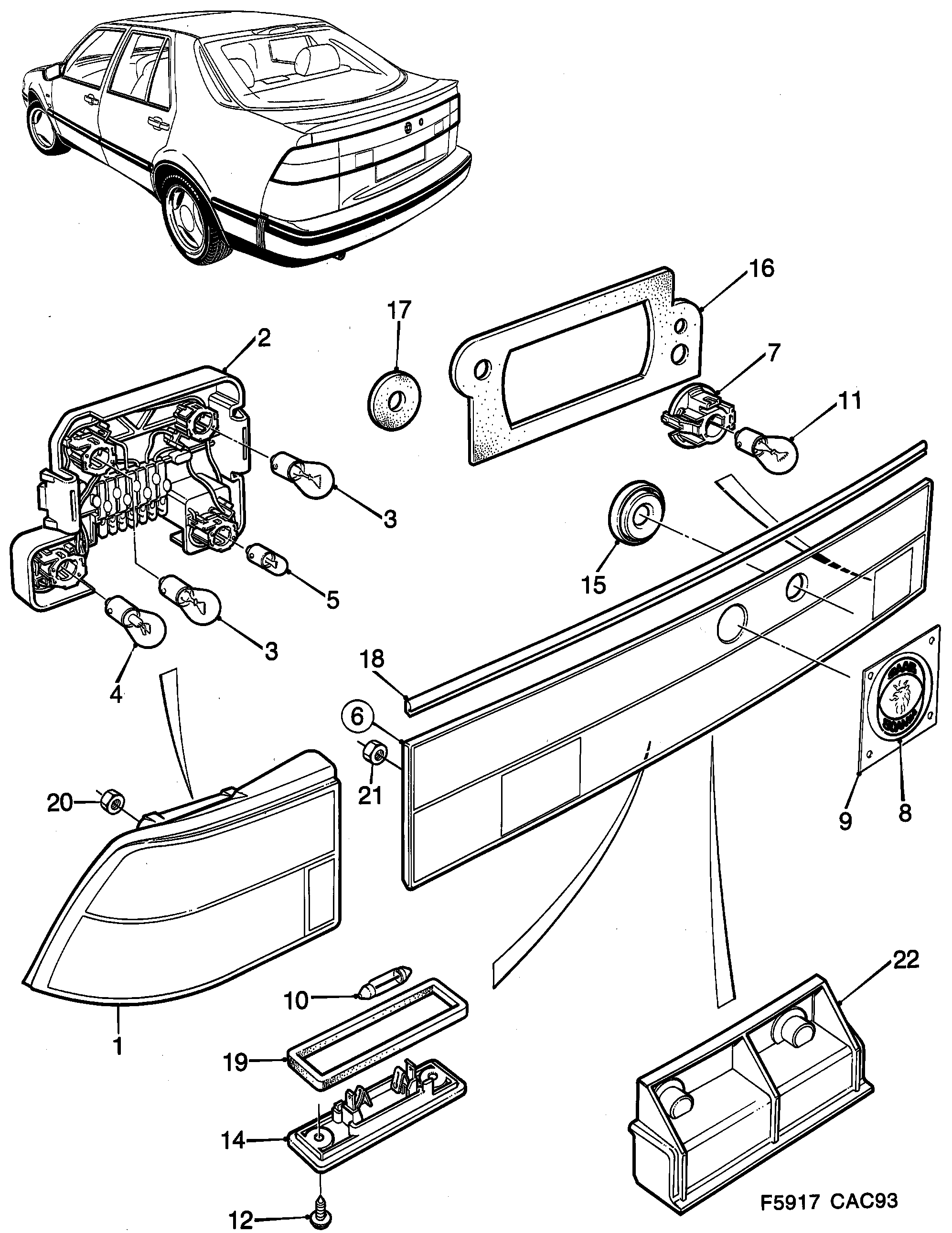

Group 3a Electrical, general, section 860
| Pos | Article | Part No. |
|---|---|---|
| 1 | Tail light | 9084039 |
| 1 | Tail light | 9084047 |
| 1 | Tail light | 9085358 |
| 1 | Tail light | 9085366 |
| 2 | Bulb socket | 9084070 |
| 2 | Bulb socket | 9084088 |
| 3 | Bulb | 93169011 (replaces 7154719) |
| 3 | Bulb | 8535692 |
| 4 | Bulb | 93190467 (replaces 4320594) |
| 4 | Bulb | 8532756 |
| 5 | Bulb | 8535700 |
| 5 | Bulb | 8552325 |
| 6 | Decor panel | 4830840 (replaces 9083734) |
| 6 | Decor panel | 4830840 (replaces 4380291) |
| 6 | Decor panel | 4830857 (replaces 9083551) |
| 6 | Decor panel | 4830857 (replaces 4380317) |
| 6 | Decor panel | 9083742 |
| 6 | Decor panel | 4380309 |
| 7 | Bulb socket | 4090114 |
| 8 | Emblem | 4171856 |
| 9 | Decal tape | 4254249 |
| 10 | Bulb | 7084197 |
| 12 | Screw | 7922271 |
| 14 | Lens | 4673224 (replaces 9086224) |
| 15 | Sealing collar | 9086232 |
| 15 | Sealing collar | 4380325 |
| 16 | Seal | 9086240 |
| 17 | Seal | 9086265 |
| 18 | Seal | 4380382 (replaces 9086273) |
| 18 | Seal | 4380382 |
| 19 | Seal | 9086281 |
| 20 | Nut | 7398423 |
| 22 | Handle | 4344222 |
