Saab 9000 1988-1989 Windshield wiper

Group 3a Electrical, general, section 850

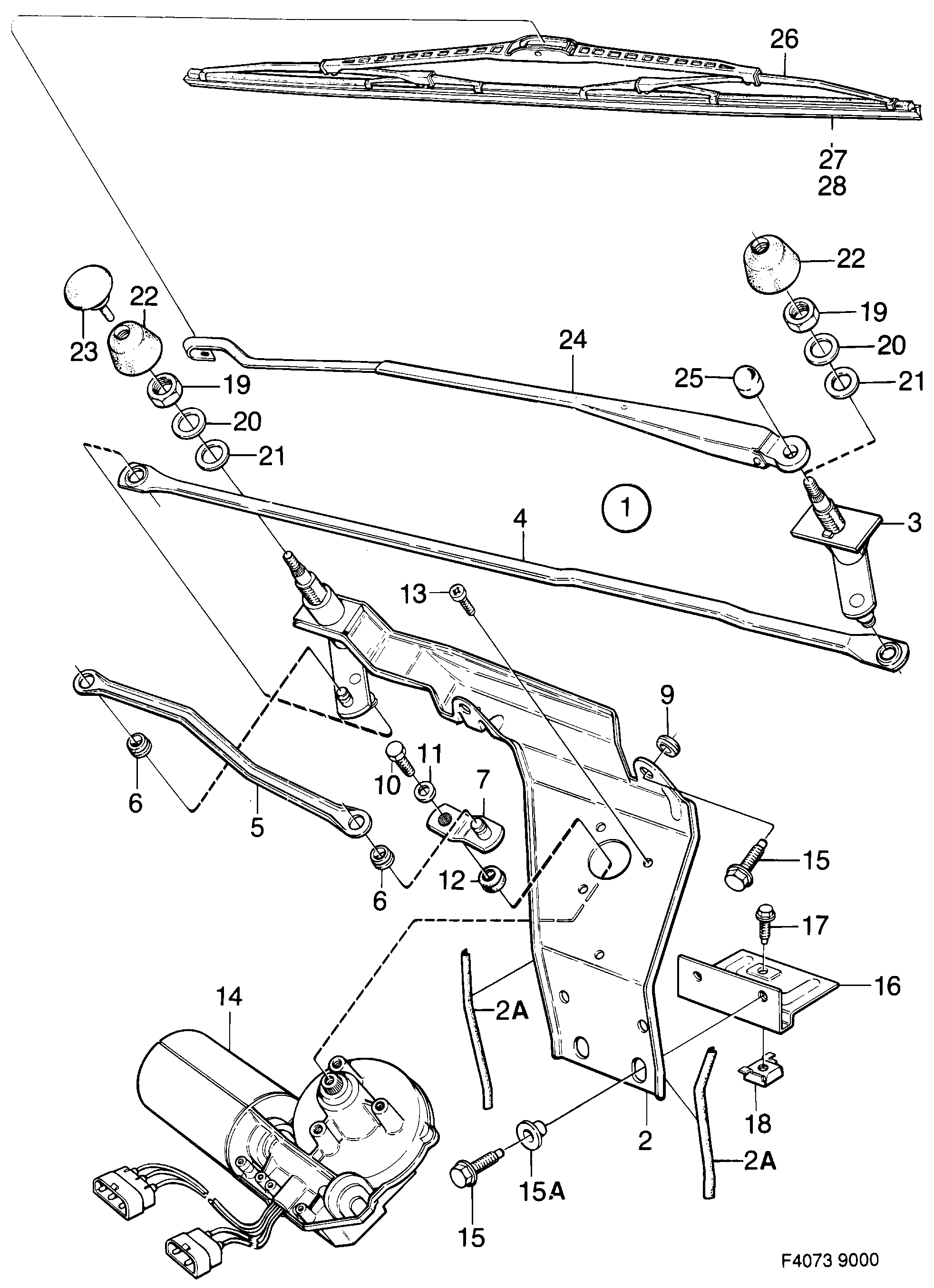

Saab 9000 Windshield wiper diagram

Pos	Article	Part No.
1	Linkage	4060133
1	Linkage	8548489
2	Beam	9120502
2A	Protection	9528910
3	Spindle	9122409
4	Connecting rod	9120536
4	Connecting rod	9120528
5	Connecting rod	9120510
6	Bushing	8559320
7	Crank arm	9122383
9	Bushing	8544421
10	Screw	8019895
11	Washer	8029951
12	Seal	9508318
13	Screw	92151821 (replaces 8059552)
14	Motor	9519448
15	Screw	7972466
15A	Sleeve	8544413
16	Bracket	9523432
18	Nut	7975006
19	Nut	7965585
20	Washer	7978083
21	Plastic washer	9563263
22	Seal	4014619
23	Plug	9504424
24	Wiper arm	9529991
24	Wiper arm	9529702
24	Wiper arm	9529561
24	Wiper arm	9529504
25	Cap nut	9565912
26	Wiper blade	9529488
26	Wiper blade	5582556 (replaces 9523754)
26	Wiper blade	4448049
26	Wiper blade	4448056
