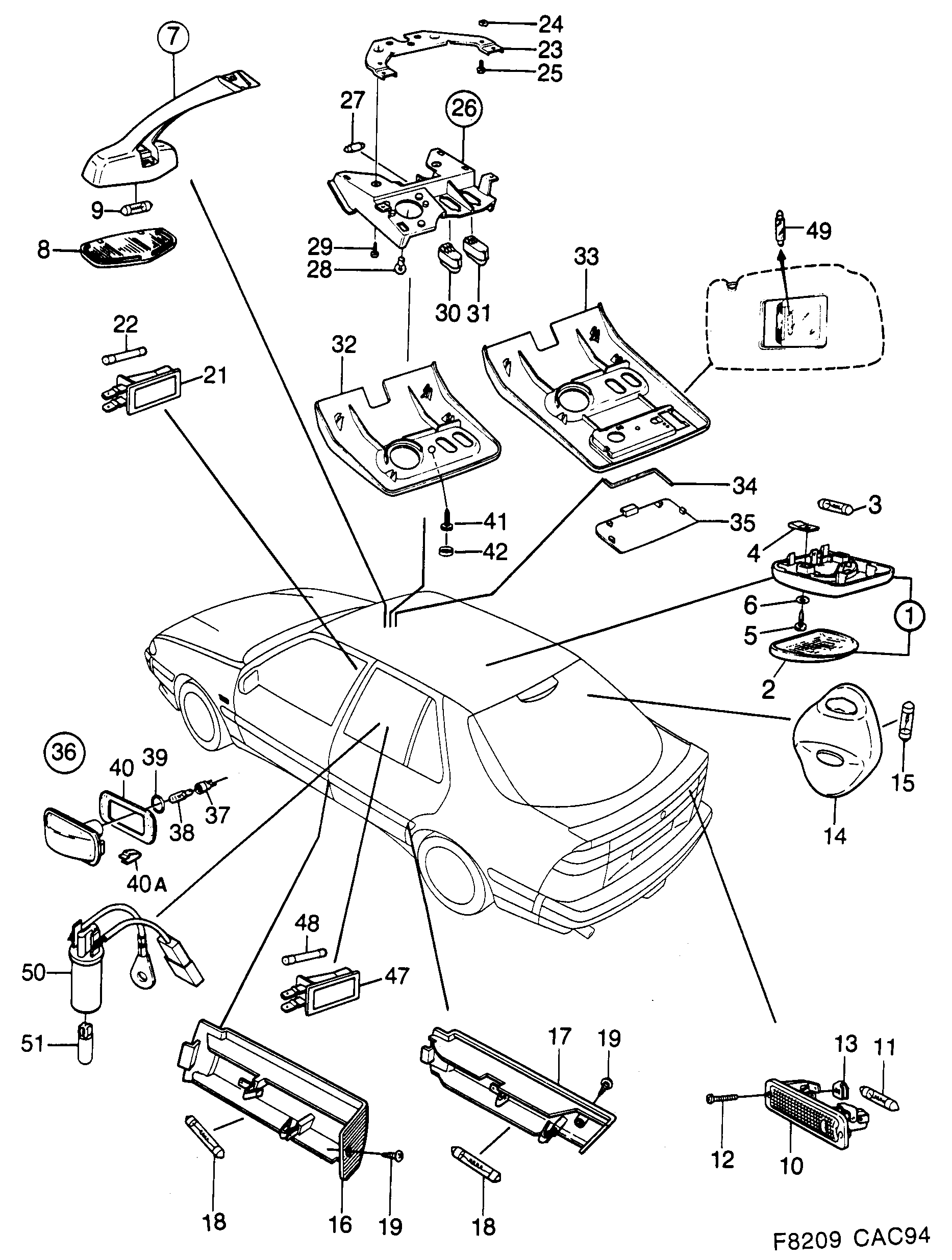

Group 3a Electrical, general, section 840
| Pos | Article | Part No. |
|---|---|---|
| 1 | Dome lamp | 4090239 |
| 1 | Dome lamp | 4888210 (replaces 4606729) |
| 1 | Dome lamp | 4888228 (replaces 4307054) |
| 2 | Lamp lens | 4060406 |
| 2 | Lamp lens | 4555272 |
| 3 | Bulb | 93190936 (replaces 8501264) |
| 3 | Bulb | 93190471 (replaces 9512880) |
| 4 | Clip nut | 7967995 |
| 5 | Screw | 7977960 (replaces 7922388) |
| 7 | Lamp | 9501941 |
| 8 | Lamp lens | 9502055 |
| 9 | Bulb | 7084197 |
| 10 | Lamp | 8577801 |
| 12 | Screw | 7970346 |
| 13 | Clamp | 9545435 |
| 14 | Lamp | 9500273 |
| 15 | Bulb | 9506080 |
| 16 | Lamp | 9564253 |
| 16 | Lamp | 9564261 |
| 17 | Lamp | 9563677 |
| 17 | Lamp | 9563685 |
| 19 | Screw | 7963937 |
| 21 | Lamp | 9592098 |
| 23 | Bracket | 9765595 |
| 24 | Cage nut | 7974983 |
| 25 | Screw | 9259524 |
| 26 | Base plate | 4037701 |
| 29 | Screw | 7922347 |
| 29 | Screw | 7972805 |
| 30 | Switch | 9505447 |
| 31 | Switch | 9505439 |
| 32 | Cover | 9660176 |
| 33 | Cover | 9765553 |
| 35 | Cover | 9766114 |
| 36 | Side light | 9124132 |
| 37 | Bulb socket | 9521857 |
| 39 | Gasket | 4484259 (replaces 9512898) |
| 39 | Gasket | 4484259 |
| 40 | Seal | 9124140 |
| 40A | Clip | 4830113 |
| 41 | Screw | 7971351 |
| 42 | Cover | 9799354 |
| 45 | Screw | 7922800 |
| 47 | Lighting | 9569948 |
| 49 | Lamp | 9578618 |
| 49 | Bulb | 4486684 |
| 50 | Bulb socket | 8578775 |
| 51 | Bulb | 93190474 (replaces 8500613) |
