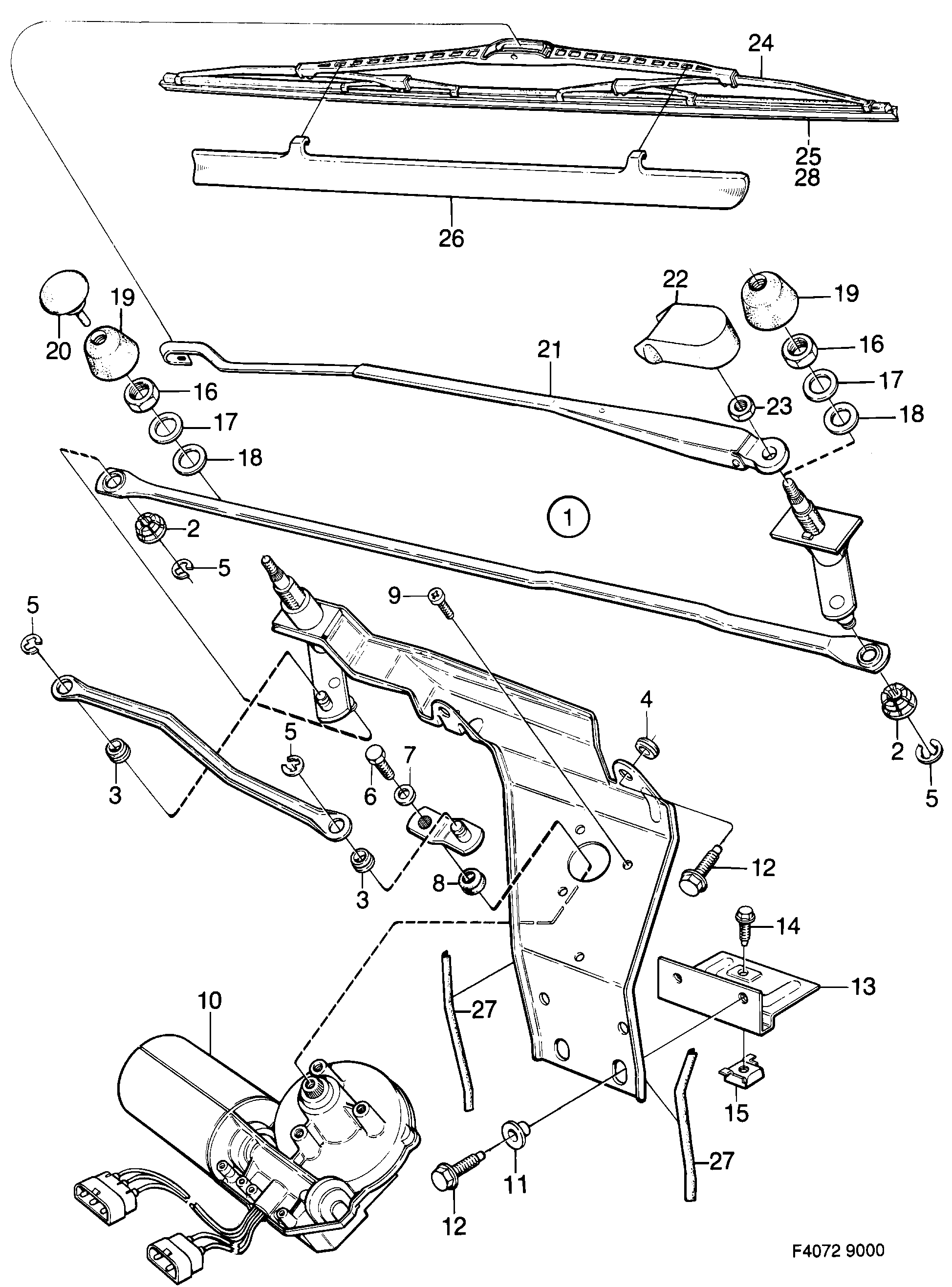

Group 3a Electrical, general, section 820
| Pos | Article | Part No. |
|---|---|---|
| 1 | Linkage | 4060133 |
| 1 | Linkage | 8548489 |
| 2 | Bushing | 8559320 |
| 4 | Bushing | 8544421 |
| 5 | Retaining ring | 8123473 (replaces 7936016) |
| 6 | Screw | 8019895 |
| 7 | Washer | 8029951 |
| 8 | Seal | 9508318 |
| 9 | Screw | 92151821 (replaces 8059552) |
| 10 | Motor | 9519448 |
| 11 | Sleeve | 8544413 |
| 12 | Screw | 7972466 |
| 13 | Bracket | 9523432 |
| 15 | Nut | 7975006 |
| 16 | Nut | 7965585 |
| 17 | Washer | 7978083 |
| 18 | Seal | 9509621 |
| 19 | Seal | 4014619 |
| 20 | Plug | 9504424 |
| 21 | Wiper arm | 9529991 |
| 21 | Wiper arm | 9529702 |
| 21 | Wiper arm | 9529561 |
| 21 | Wiper arm | 9529504 |
| 22 | Cover | 9526237 |
| 23 | Nut | 8074106 |
| 24 | Wiper blade | 9522095 |
| 24 | Wiper blade | 4448049 |
| 24 | Wiper blade | 4448056 |
| 26 | Spoiler | 9512567 |
| 27 | Protection | 9528910 |
