Saab 9000 1985-1985 Windshield wiper

Group 3a Electrical, general, section 790

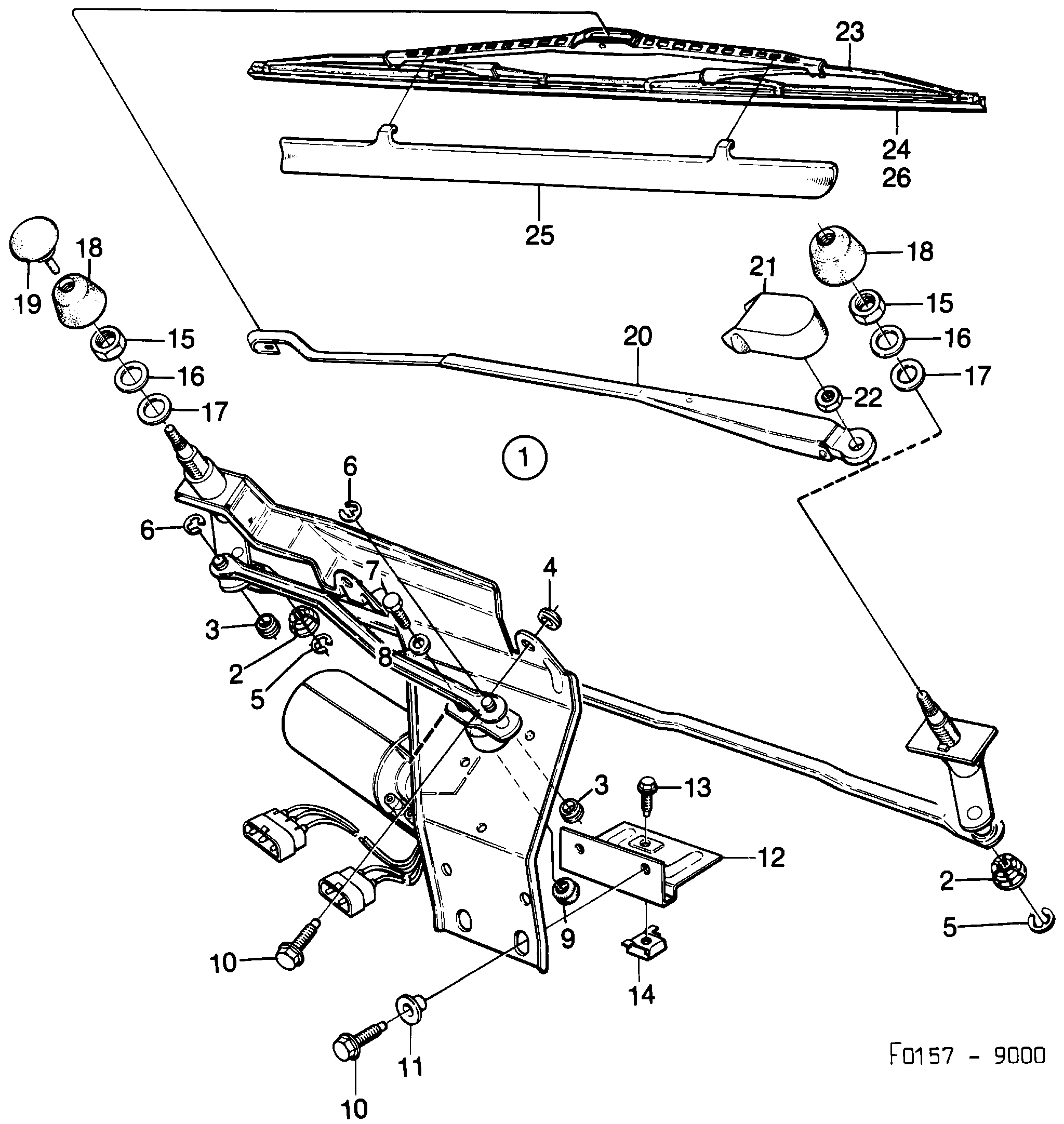

Saab 9000 Windshield wiper diagram

Pos	Article	Part No.
1	Wiper unit	9120486
2	Bushing	8559320
3	Bushing	8504029
4	Bushing	8544421
5	Retaining ring	8123473 (replaces 7936016)
6	Retaining ring	7963135
7	Screw	8019895
8	Washer	8029951
9	Seal	9508318
10	Screw	7972466
11	Sleeve	8544413
12	Bracket	9523432
14	Nut	7975006
15	Nut	7965585
16	Washer	7978083
17	Seal	9509621
18	Seal	4014619
19	Plug	9504424
20	Wiper arm	9529991
20	Wiper arm	9529702
21	Cover	9526237
22	Nut	8074106
23	Wiper blade	9529488
23	Wiper blade	4448049
23	Wiper blade	4448056
25	Spoiler	9512567
