Saab 9000 1994-1998 Tail light

Group 3a Electrical, general, section 780

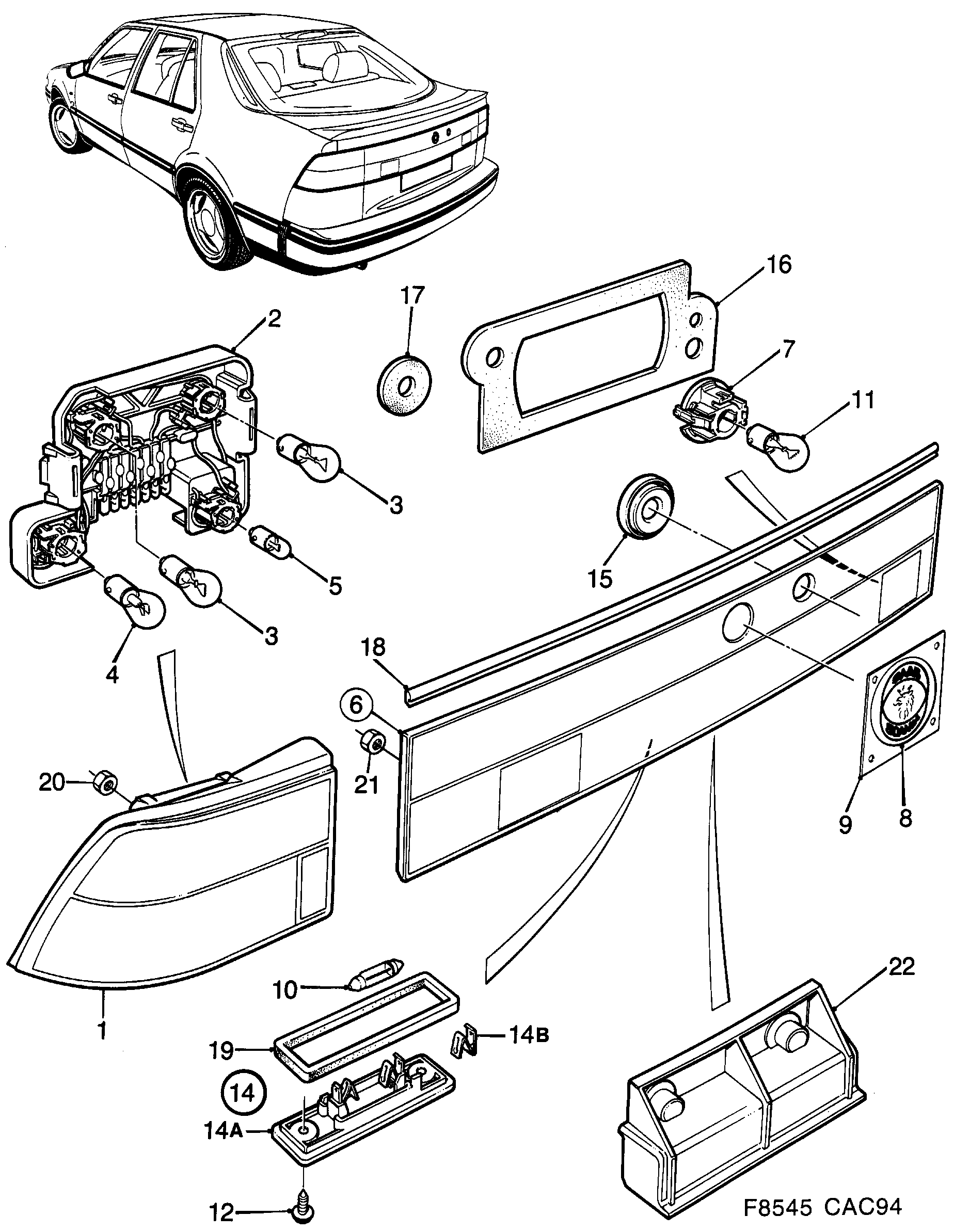

Saab 9000 Tail light diagram

Pos	Article	Part No.
1	Tail light	9084039
1	Tail light	9084047
1	Tail light	9085358
1	Tail light	9085366
2	Bulb socket	9084070
2	Bulb socket	9084088
3	Bulb	93169011 (replaces 7154719)
3	Bulb	8535692
4	Bulb	93190467 (replaces 4320594)
4	Bulb	8532756
5	Bulb	8535700
5	Bulb	8552325
6	Decor panel	4830840 (replaces 4521175)
6	Decor panel	4830840
6	Decor panel	4830857 (replaces 4380317)
6	Decor panel	4830857
6	Decor panel	4830865 (replaces 4521282)
6	Decor panel	4830865
7	Bulb socket	4090114
8	Emblem	4171856
9	Decal tape	4254249
10	Bulb	7084197
12	Screw	7922271
14	Lens	8549537
14A	Lens	4673224
14B	Switch actuator	4830824
15	Sealing collar	4380325
16	Seal	9086240
17	Seal	9086265
18	Seal	4380382
19	Seal	9086281
20	Nut	7398423
22	Handle	4344222
