Saab 9000 1985-1989 Other lights

Group 3a Electrical, general, section 730

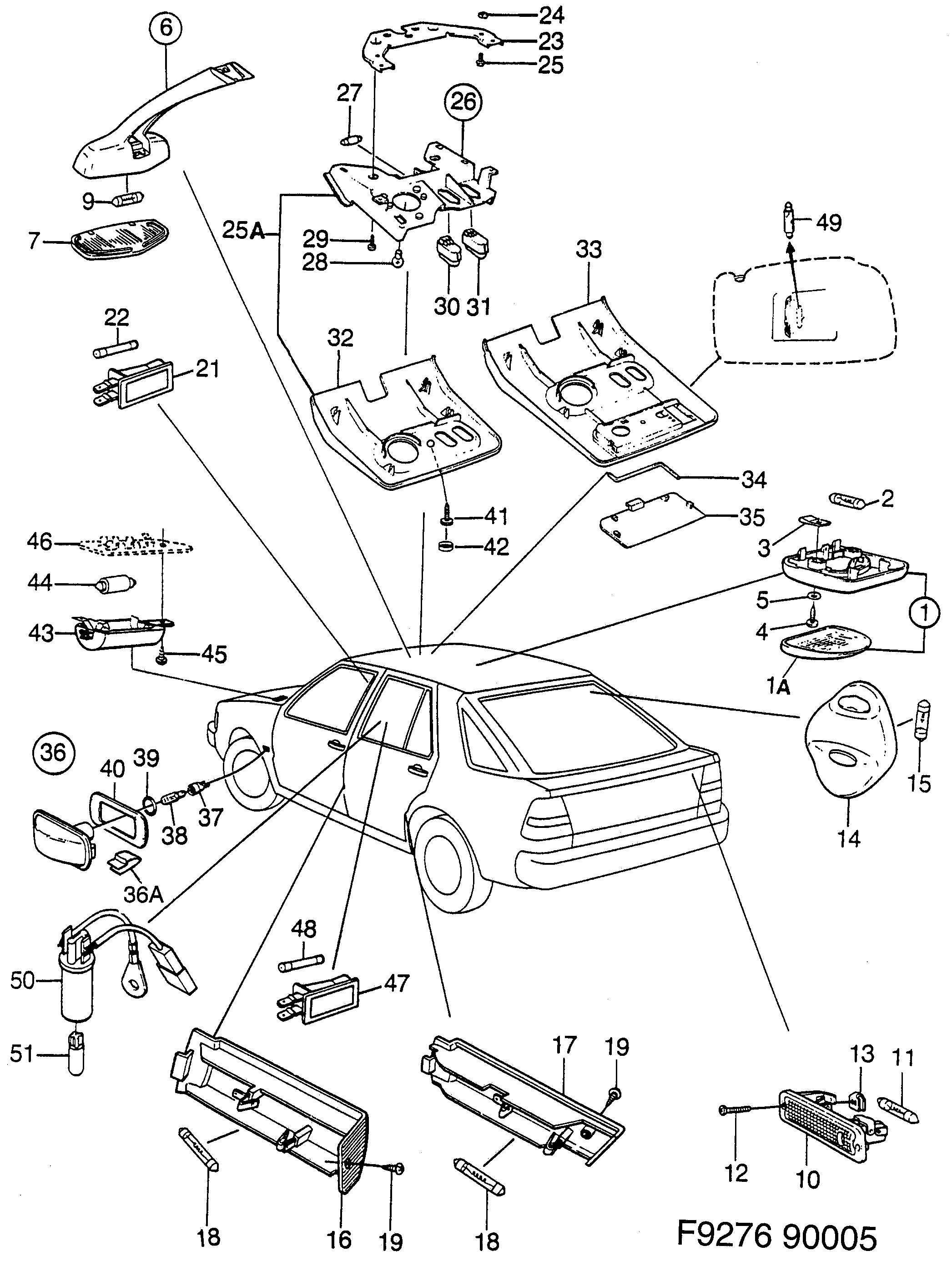

Saab 9000 Other lights diagram

Pos	Article	Part No.
1	Dome lamp	9512252
1	Dome lamp	4060398
1A	Lamp lens	4060406
2	Bulb	93190936 (replaces 8501264)
3	Nut	7977333
4	Screw	7963937
5	Washer	8428997
6	Lamp	9501941
7	Lamp lens	9502055
9	Bulb	7084197
10	Lamp	8577801
12	Screw	7970346
12	Screw	7971393
13	Clip nut	7972771
13	Clamp	9545435
14	Lamp	9500273
15	Bulb	9506080
16	Lamp	9564253
16	Lamp	9564261
17	Lamp	9501990
17	Lamp	9563677
17	Lamp	9502006
17	Lamp	9563685
19	Screw	7922214
21	Lighting	8553794
21	Lamp	9663378
21	Lamp	9592098
23	Bracket	9765595
24	Cage nut	7974983
25	Screw	9259524
25A	Kit	4037701 (replaces 9698036)
26	Base plate	4037701 (replaces 9765603)
26	Base plate	9660184
26	Base plate	9575903
28	Lamp	9508870
29	Screw	7922347
30	Switch	9505447
31	Switch	9505439
32	Cover	9660176
33	Cover	9765553
35	Cover	9766114
36	Side light	9124132
36A	Clip	4830113
37	Bulb socket	9521857
38	Bulb	93190471 (replaces 9512880)
39	Gasket	4484259 (replaces 9512898)
40	Seal	9124140 (replaces 9512906)
40	Seal	9124140
41	Screw	7975535
41	Screw	7971351
42	Cover	9799354
43	Engine compartment lamp	4320339 (replaces 9514258)
44	Bulb	9514324
45	Screw	7922800
47	Lamp	9509597
47	Lighting	9569948
49	Lamp	9578618
50	Bulb socket	8578775
51	Bulb	93190474 (replaces 8500613)
