Saab 9000 1985-1989 Stop light High mounted

Group 3a Electrical, general, section 700

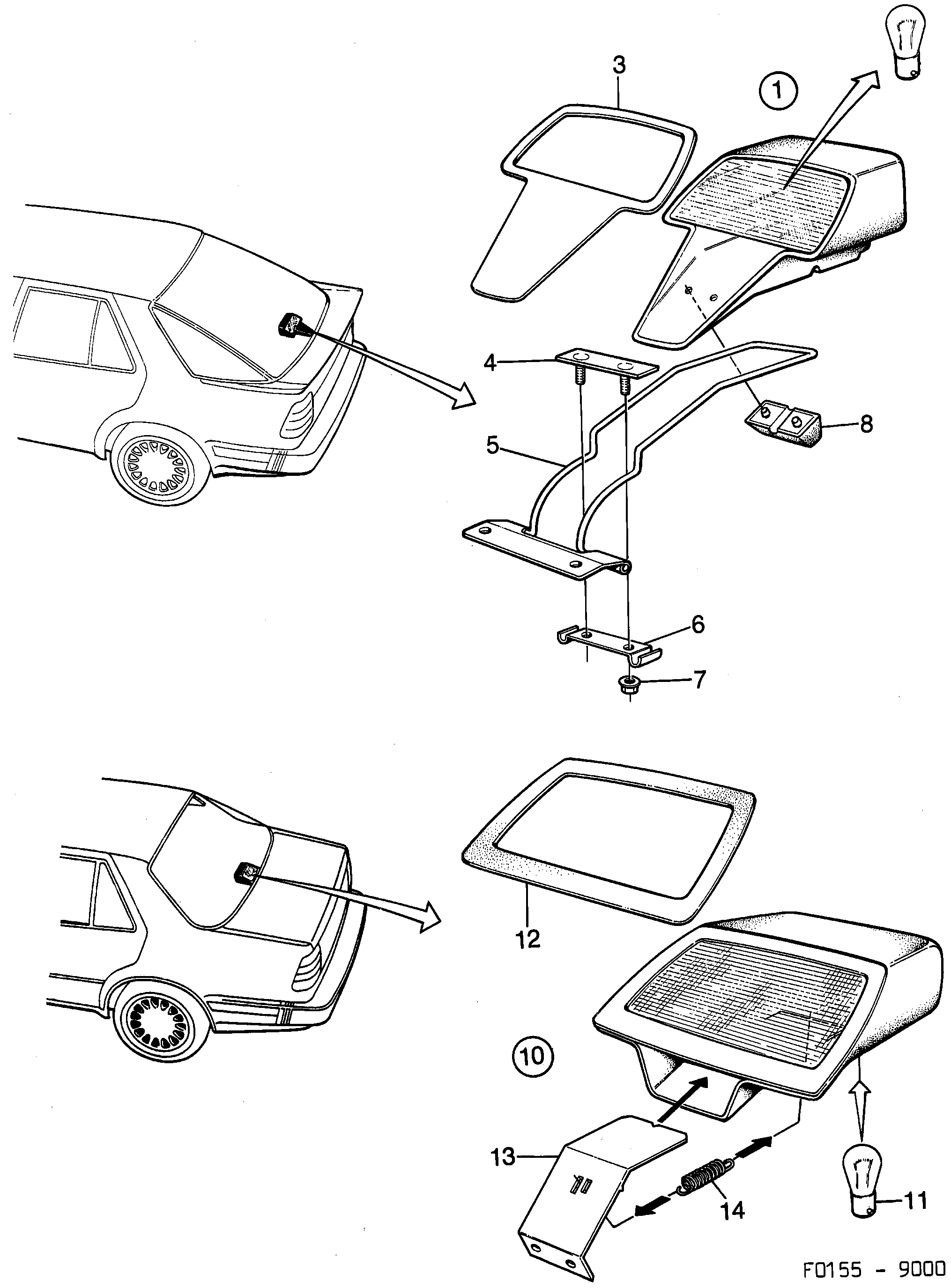

Saab 9000 Stop light High mounted diagram
PosArticlePart No.
1Stop light9567223
2Bulb8535692
3Seal9514233
4Attaching plate9514969
5Tensioner9518267
6Clamping-piece9514951
7Nut8151227 (replaces 8029555)
7Nut8151227
8Gasket9659301
10Stop light8598286
12Seal9551953
13Bracket4011300 (replaces 9524018)
13Bracket4090007 (replaces 4011300)
14Spring9553512
