Saab 9000 1994-1998 Headlamp, sealed beam

Group 3a Electrical, general, section 570

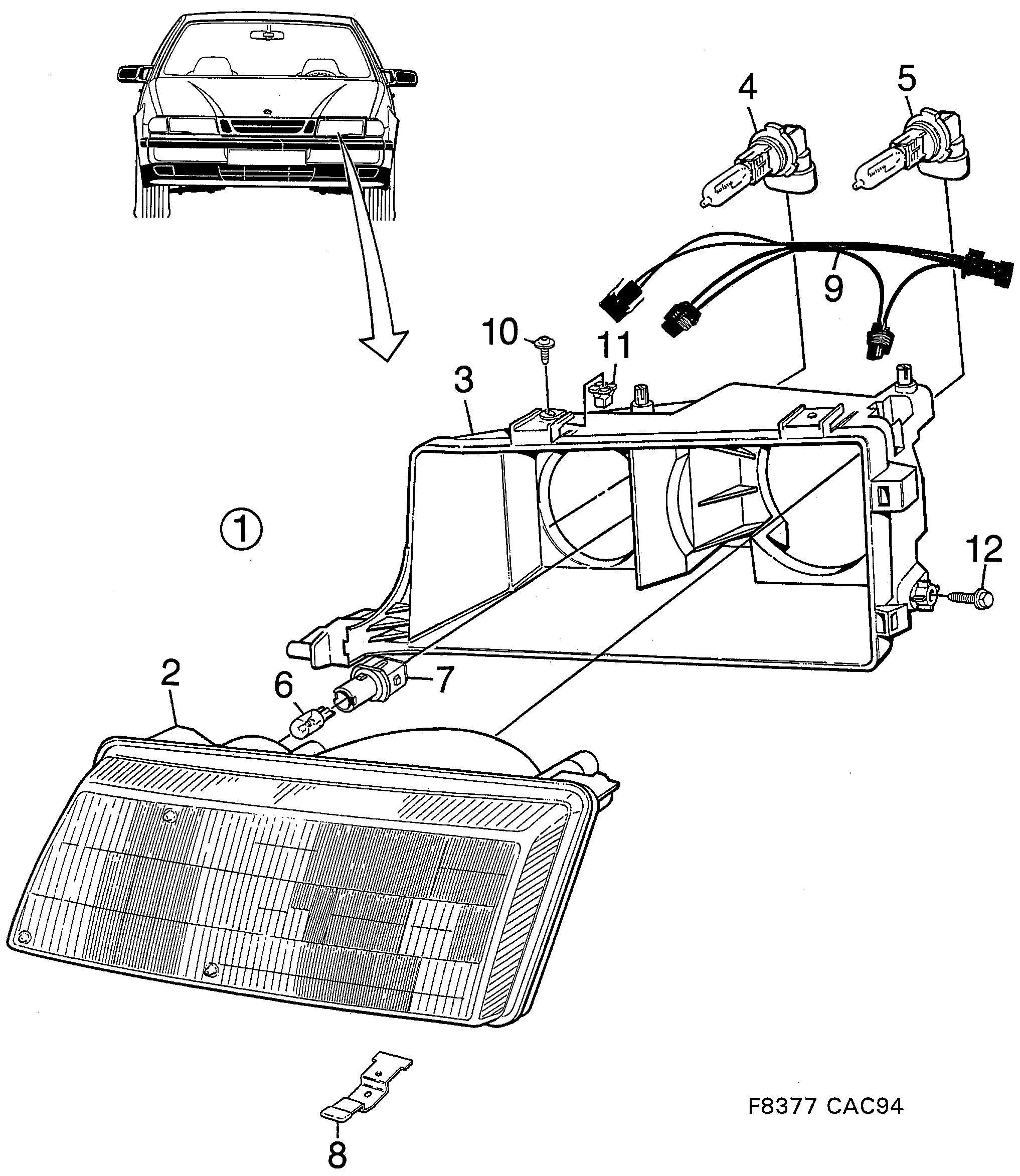

Saab 9000 Headlamp, sealed beam diagram
PosArticlePart No.
1Headlamp9082892
1Headlamp9082900
2Headlamp insert9084112
2Headlamp insert9084120
3Attaching frame9084179
3Attaching frame9084187
4Bulb4089264
5Bulb4089272
6Bulb93190471 (replaces 9512880)
7Bulb socket4252581
8Stop4673372
8Stop4673380
9Cable harness4252599
10Screw7973001
10Screw7985690
11Nut7975261
12Screw11900354 (replaces 7978109)
12Hexagon screw92152130 (replaces 7984305)
